Lower Unit
RO

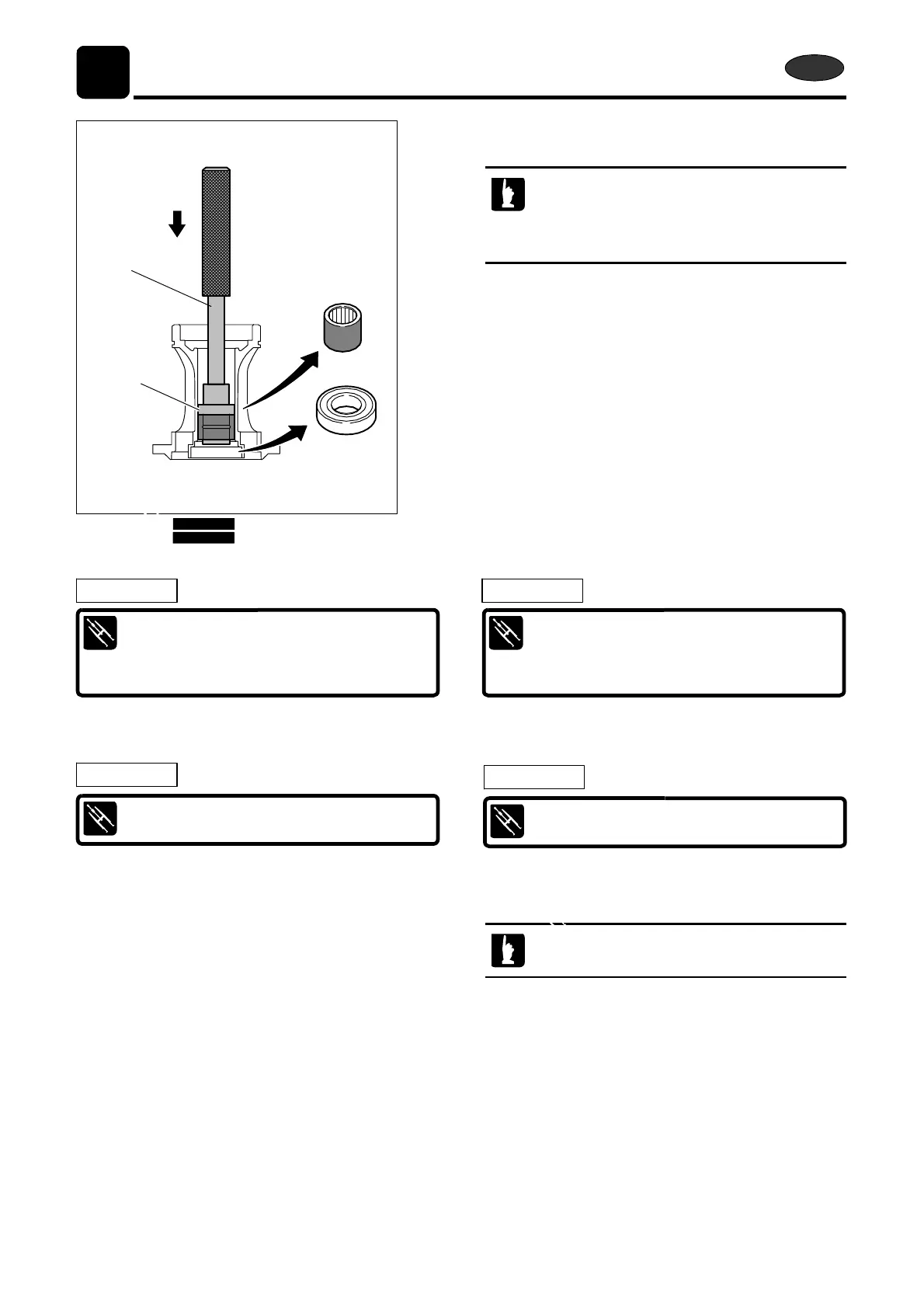

5. Use a press to remove oil seal 4 and roller bearing 6 at
the same time.
· Before removing, check bearing for play or
deflection. Replace if necessary.
· Direct the side of attachment without O-ring to
roller bearing.
8
6
7
4
4 Oil Seal Do not reuse.
6 Roller Bearing Do not reuse.
MX50 MWX50
Roller Bearing Attachment 7 : Roller Bearing Attachment 7 :
P/N. 3MC-99710-0 P/N. 3LC-99710-0
Driver Rod 8 : Driver Rod 8 :
P/N. 3AC-99702-0 P/N. 3AC-99702-0
This work can be done also by using the following tool
kit.
MX50
MWX50
Needle Bearing Puller Kit :
Needle Bearing Puller Kit :
P/N. 3C8-72700-0
P/N. 3B7-72700-0
6. When removing only oil seal, use bladed screw driver to
pry apart.
Be careful not to give flaw to propeller shaft
housing when removing oil seal.
6-40
