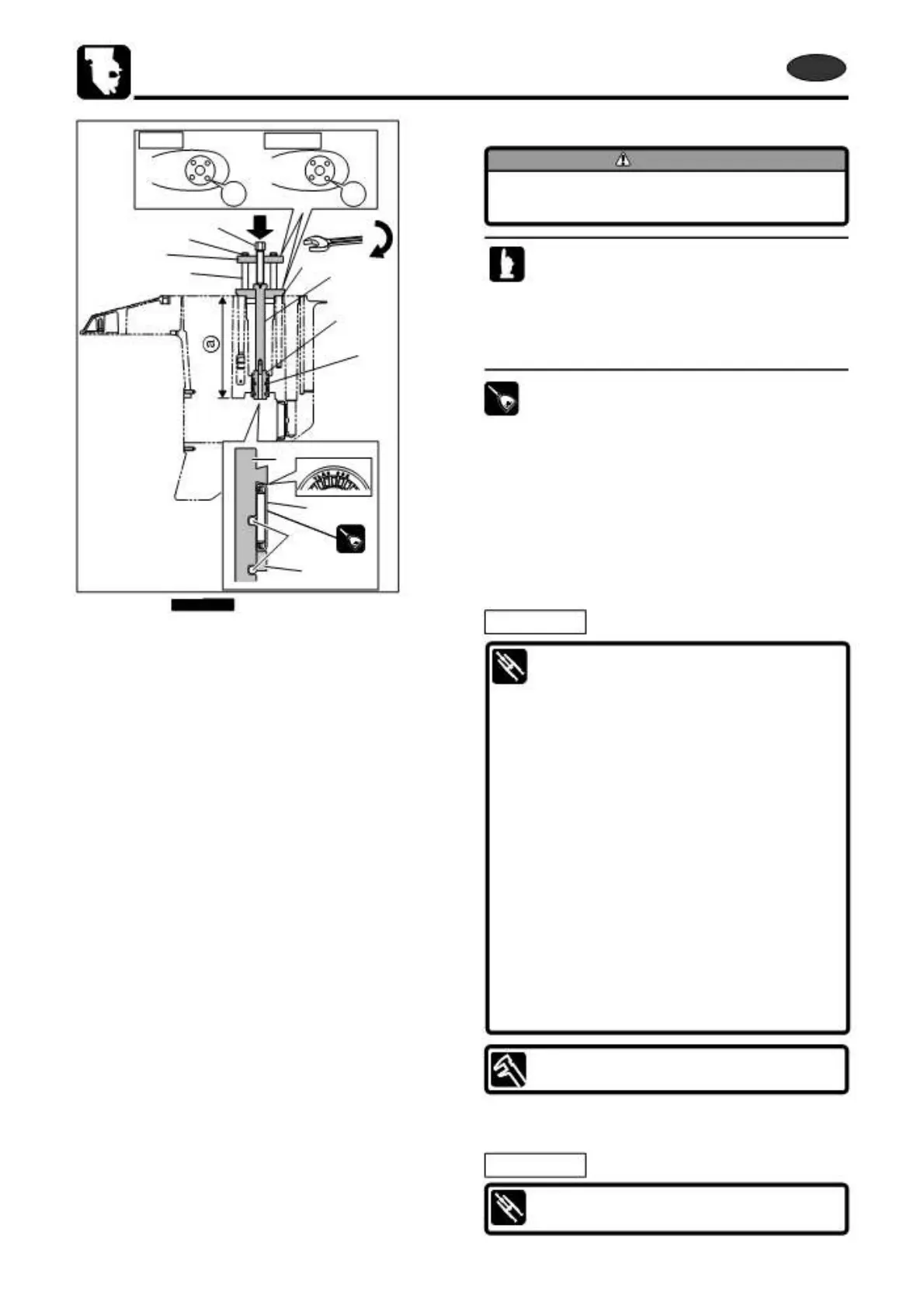

7. Install roller bearing 7 by using the following tools.
CAUTION
Install bearing so that marked side faces
upward.
· Align following marks of the press guide 8 and
installation hole of the pump case front-right
side, then attach press guide.
· Before installing bearing, be sure to clean
bearing installation face and apply gear oil.
· Do not reuse roller bearing. Use new part.
GEAR
GEAR
7 Roller Bearing Do not reuse.
MX50
Roller Bearing Press Kit :
P/N. 3LC-72900-0
Bearing Outer Press Guide 8 :
P/N. 3T1-72765-0
Roller Bearing Press Rod 9 :
P/N. 3LC-72767-0
Roller Bearing Press 0 :
P/N. 3Z5-72770-0
O Ring q :
P/N. 6B3-32529-0
Washer M8 w :
P/N. 940191-0800
Roller Bearing Outer Press Collar e :
P/N. 3C7-72768-0
Roller Bearing Outer Press Bolt r :
P/N. 3C7-72766-0
Bolt M8-110
t
:
P/N. 3C7-72773-0
Roller Bearing Press Flange y :
P/N. 3AC-72901-1
Roller Bearing Press Guide u :
P/N. 3Z5-72905-0
Installation Depth a :
173 mm (6.811 in)
This work can be done also by using the following
tool kit.
MX50
Roller Bearing Puller Kit :
P/N. 3C8-72700-0
6-72
2st 50D2 2011
