Raider 50 - Page 205

Bracket
GB

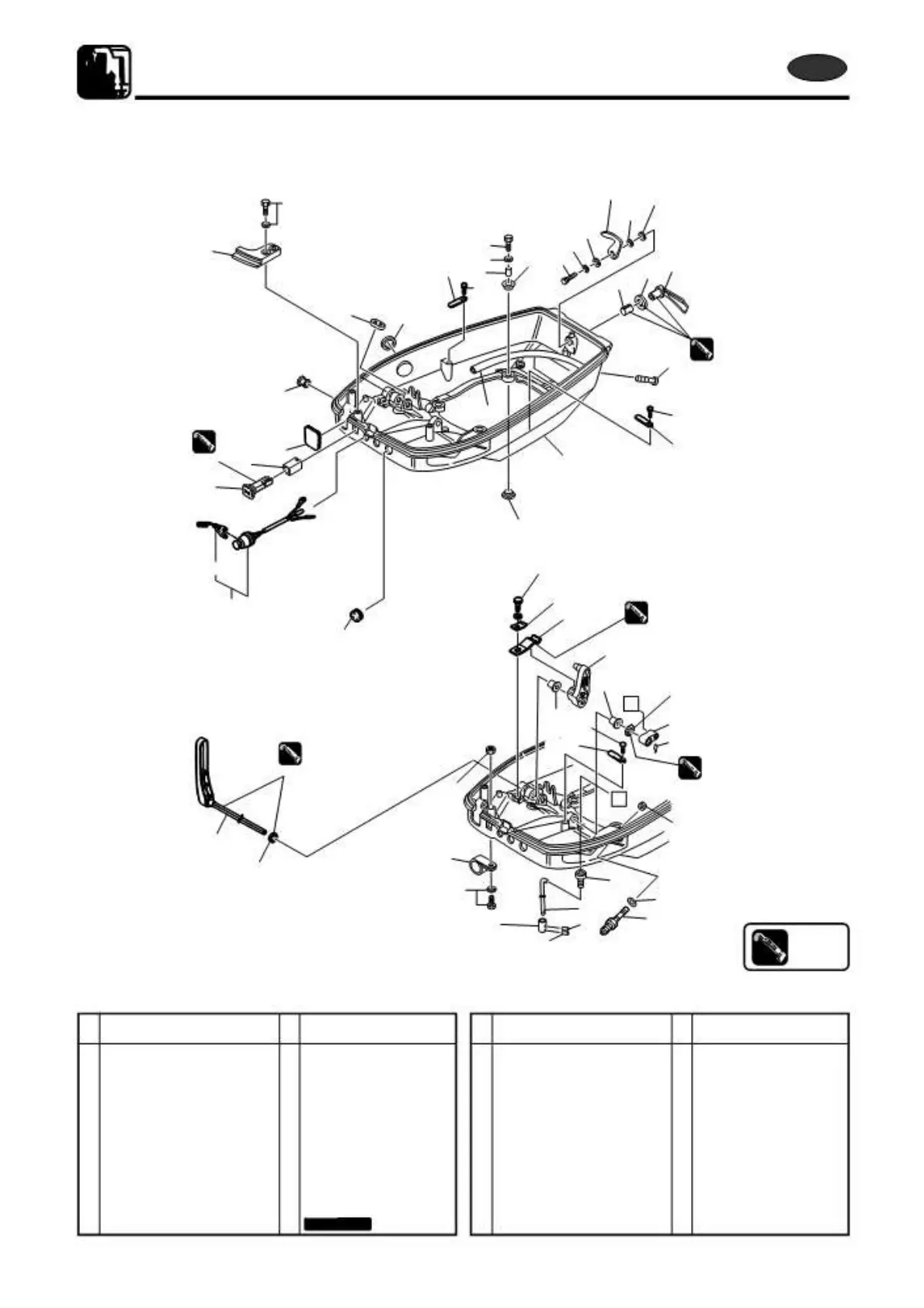

P/L Fig. 22
OBM
OBM
OBM
OBM
OBM
OBM
OBM
Ref.
No.
OBM
Description Q'ty Remarks
OBM
OBM
OBM
OBM
Ref.
Description Q'ty Remarks
No.
27 Shift Lever 1 39 Bolt 4
28 Shift Arm 1 40 Washer 6.5-21-1 4
29 Bushing 2 41 Grommet 17-3 1
30 Wave Washer d=12 1 42 Shift Rod 1
31-1 Shift Rod Lever 1 for MX50D2 43 Spring Pin 3-12 1
31-2 Shift Rod Lever 1 for MWX50D2 44 Clamp 1
32 Snap Retainer d=8 1 45 Bolt 1 ALL
33 Shift Lever Stopper 1 46 Spark Plug Decal 1 B8HS-10
34 Shift Lever Stopper 1 47 Bottom Cowl 1
35 Bolt 1 48 Grommet 1
36 Fuel Connector (Male) 1
37 Nut 10-P1.25 1
38 Gasket 10.2-16-0.5 1 Do not reuse.
7-14
2st X50D2 2011
