Bracket
GB
3.
3 7
4
6 5

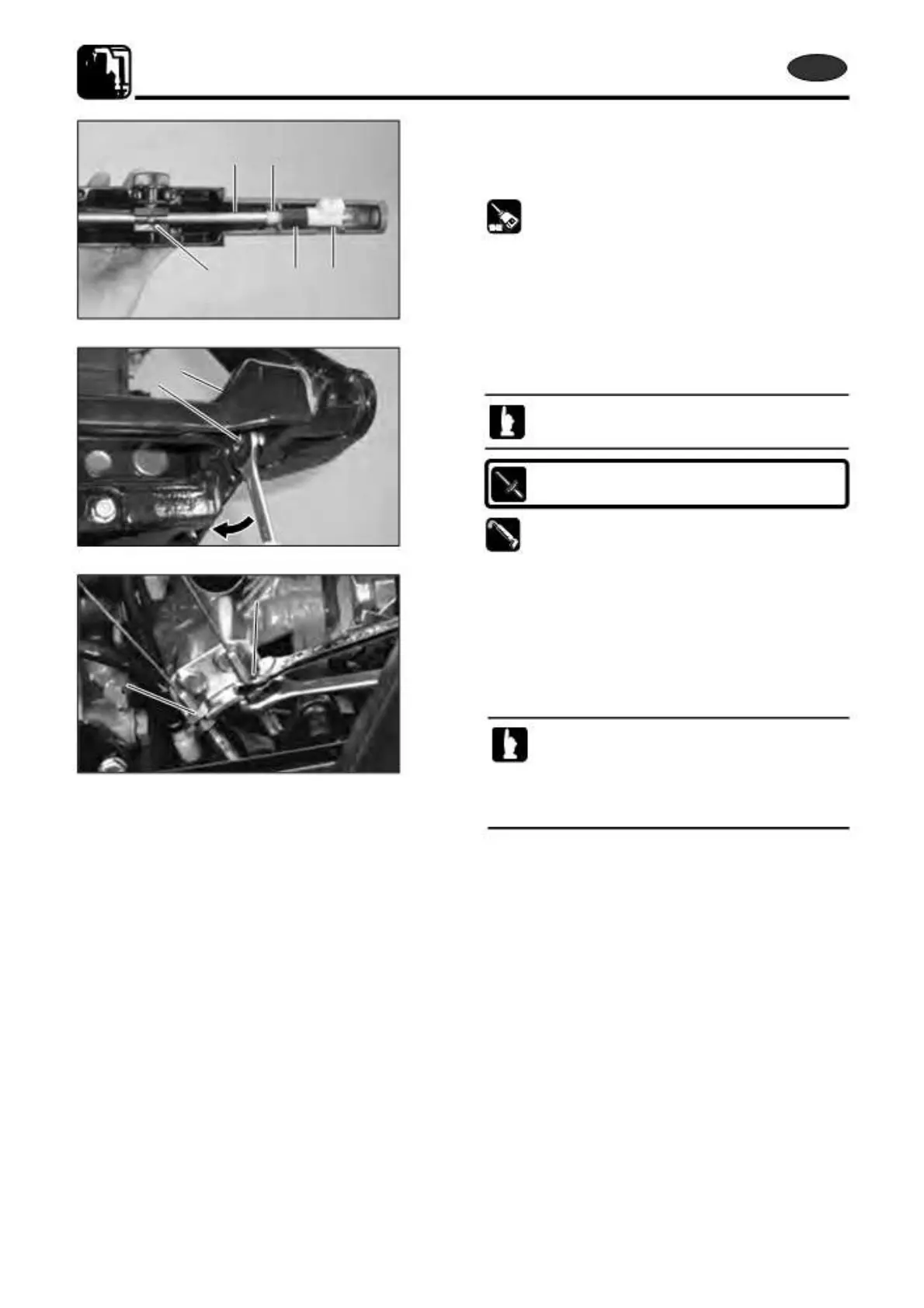

Install throttle shaft 3 with cable to Tiller handle. Be
careful of location of throttle friction 4, throttle shaft
spacer 5, throttle shaft damper 6 and bushing 7.
1342
9 8
0
4.
Attach Tiller handle ass'y to steering bracket 8, and
tighten nut 9 to specified torque.
Arrange throttle cable as shown.
Tiller Handle Bolt 9 :
6 N · m (4 lb · ft) [0.6 kgf · m]
OBM
OBM
5. Install advancer arm and adjust position of lock nuts 0 of
throttle cable.
6. Adjust position of lock nuts of throttle cable so that throttle
0
grip can reach full open and full close positions.
· Adjust cable tension so that it moves
approximately 1mm when pushed lightly with a
finger.
· For more detail, “Adjustment of Throttle Cable” in
chapter 3.
7-22
2st X50D2 2011
To Next Page
