Bracket
GB

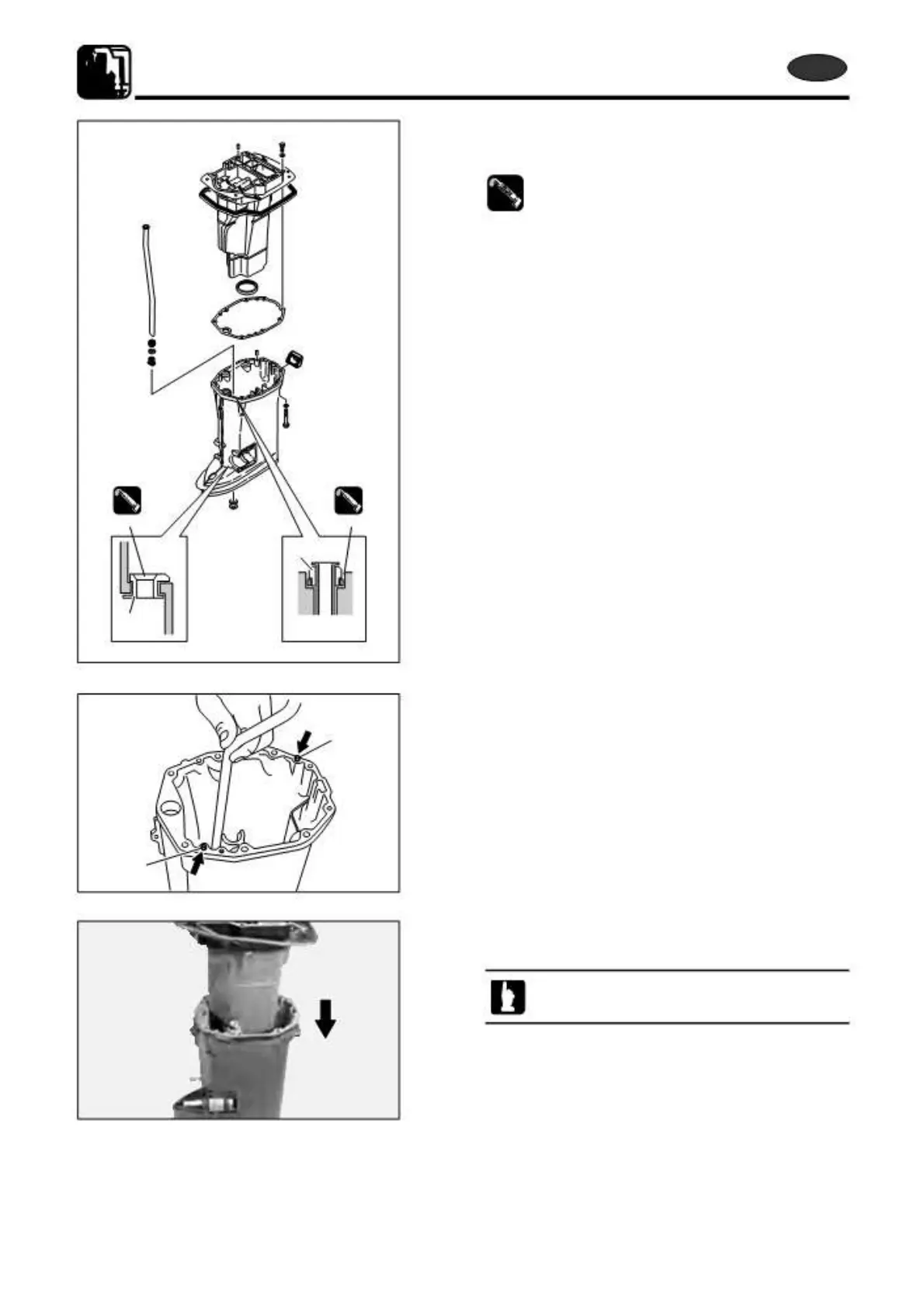

4. Install water pipe auxiliary mount 8 to drive shaft
housing.
OBM
OBM
OBM
OBM
OBM OBM
8
8
5.
9
9
Install water pipe to drive shaft housing, and attach gasket
after confirming that dowel pins 9 are on the drive shaft
housing.
6. Check that drive shaft housing dowel pin is placed and
secured to engine base properly.
Check that water pipe is at joint of engine base.
