Electrical System
GB

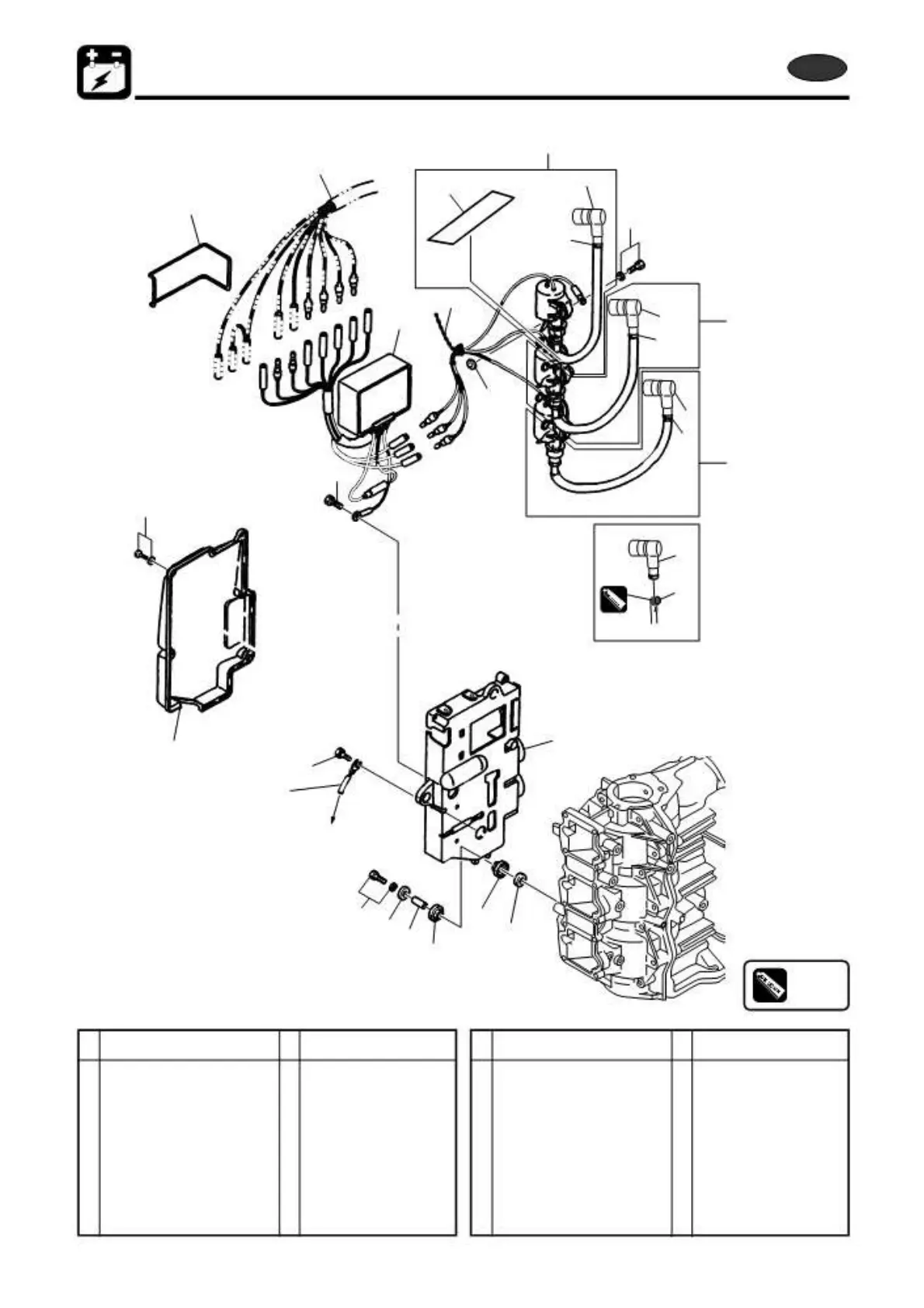

2.Parts Layout
P/L Fig. 8
Magneto
1342
1342
LIT
LIT
LIT
LIT
Ref.
No.
Description Q'ty Remarks
Ref.
Description Q'ty Remarks
No.
1 Flywheel W/Ring Gear 1 F4T405-72 12 Band 3
2 Coil Plate Ass'y W/Alternator 1 13 Screw 3
3 Pulsar Coil & Plate Ass'y 1 14 Key 1
4 Pulsar Holder 1 15 Nut 18-P1.5 1
5 Exciter Coil 1 16 Washer 19-34-3 1
6 Screw 6 17 Guide Plate 1
7 Alternator Ass'y 1 18 Guide Plate cover 2
8 Holder 1 19 Setting Ring 1
9 Screw 2 20 Ball Joint 1
10 Clamp 2 21 Spring Washer 1
11 Screw 2 22 Bolt 3
2st 50D2 2011
To Next Page
