Rapid 2005 - Page 46

To Next Page

To Previous Page

B-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL

36 of 147

Step 11.3.2

To p

Panel

Side (Left) Panel

Bottom Panel

Side (Right) Panel

Top Panel

Side (Right) Panel

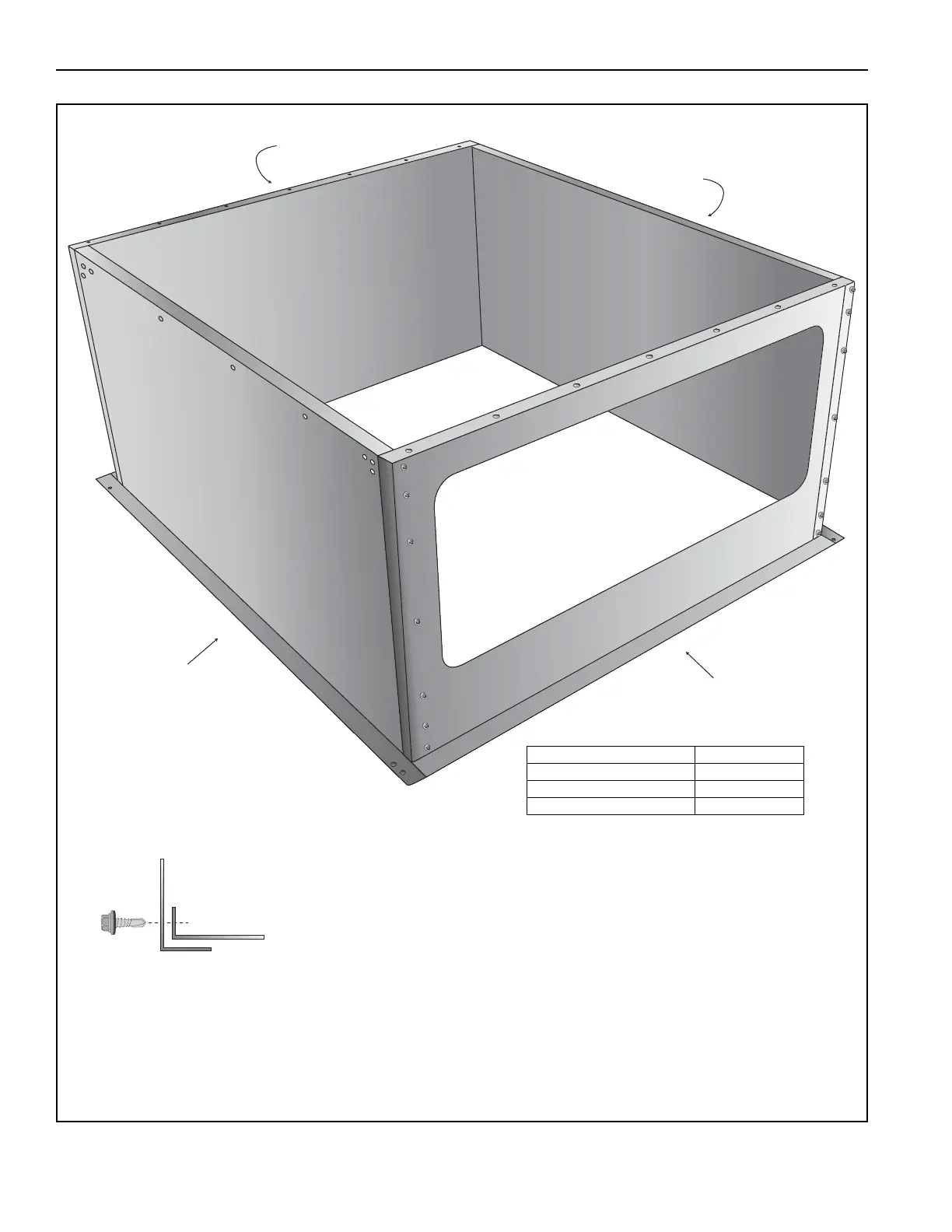

For Model 2020: Attach the bottom panel with five TEK self-tapping

screws. Attach the right panel with five TEK self-tapping screws on

each side.

For Model 2030: Attach the bottom panel with seven TEK self-

tapping screws. Attach the right panel with seven TEK self-tapping

screws on each side.

Description Part Number

Bottom Panel 13X05029

Side (Right) Panel 13X05026

TEK Screw 13404
