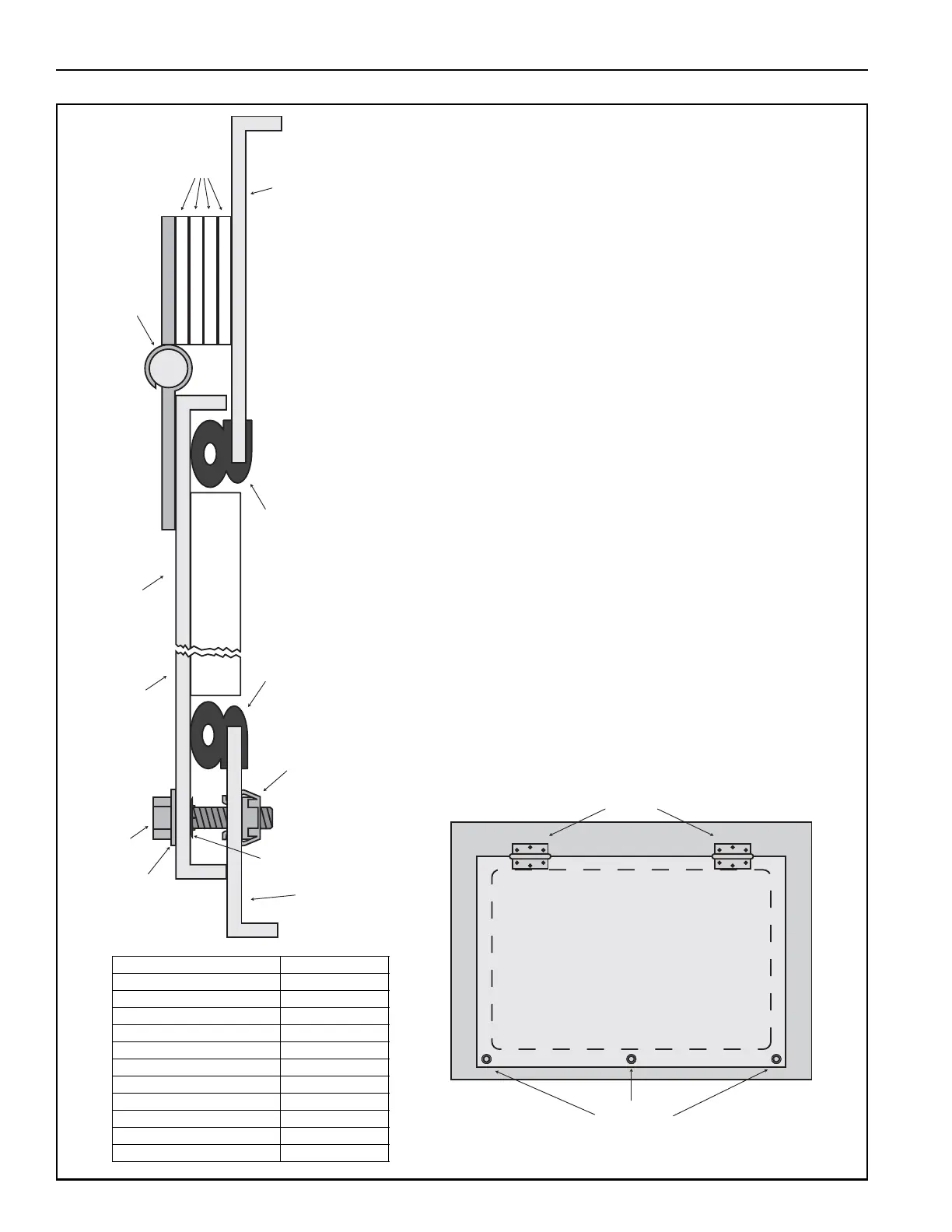

On right panel, apply provided gasket material to the filter access
opening.
Attach filter access door with two hinges.
Attach the hinges to the door using three 10-24 x 1/2" bolts and
10-24 nuts. Attach the hinge to the filter section right panel using
three 10-24 x 3/4" bolts and 10-24 nuts. Use four hinge spacers
between the hinge and the right panel to keep the hinge aligned.
Press the ¼-20 grip-nuts into each of the three square cut outs in
the filter section right panel on the opposite side of the filter access
opening from the hinges.
Place a ¼" washer on a ¼-20 bolt and insert it into one of the three
bolt holes on the door panel. Place a push-nut on to the bolt from
the inside of the door panel to keep the bolt from being separated
from the door panel when it is open. Repeat for the other two bolt
holes. Secure the door in the closed position by threading the
three bolts in the door panel to the grip-nuts on the filter section
right panel.
On the inlet of the filter section, rivnuts (P/N 91120106) are factory
installed. With additional 3/8" hardware (P/N 20515 and
P/N 20517) the filter section can be installed on the inlet of the
unit. See Page 43, Section 11.5 for additional information on filter
section installation.
Description Part Number
Gasket Material 13205035
Filter Access Door 13X05025
Hinge 20500
10-24 x ½" Bolt 27000
10-24 Nut 20698
Hinge Spacers 13205032
10-24 X ¾" Bolt 21699
¼-20 Grip-Nut 20499
¼" Washer 20503
¼-20 Bolt 20504
Push-Nut 20505
