SECTION 12: INLET HOOD

47 of 147

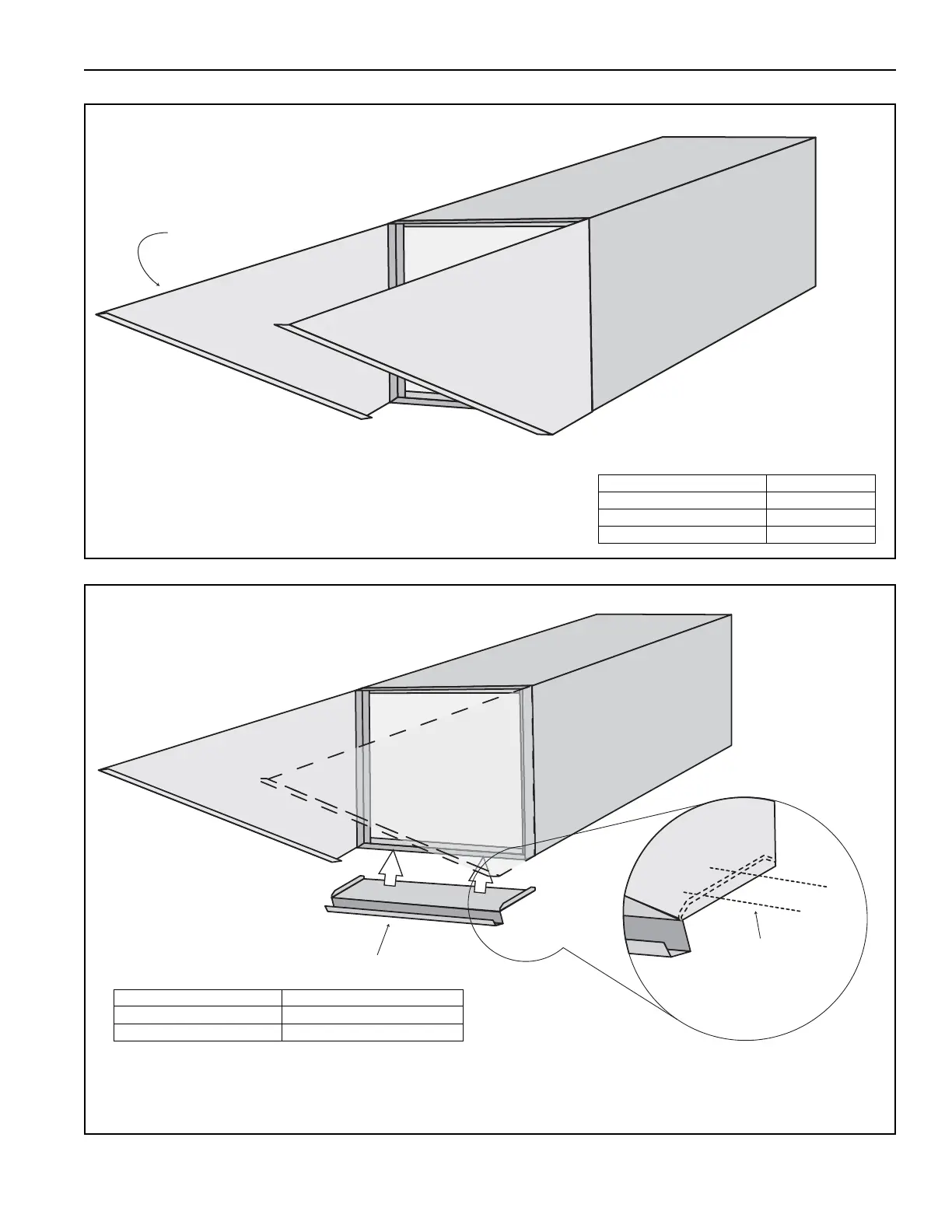

Step 12.2.2

Step 12.2.3

Right Panel

Left Panel

Attach left panel and right to each side flange of the air

handler/filter section using five TEK self-tapping screws.

Ensure that the flanges on the panels break inward.

Description Part Number

Left Panel 13505080

Right Panel 13505081

TEK Screw 13404

Screws

Bottom Rail

Attach the bottom panel to the bottom attaching flange with five TEK self-tapping screws and to

each side panel with two TEK self-tapping screws. Ensure that the side tabs of the bottom panel

are to the inside of the side panels.

Description Part Number

Bottom Rail 13505072/13505095

TEK Screw 13404
