Step 12.2.4
Step 12.2.5

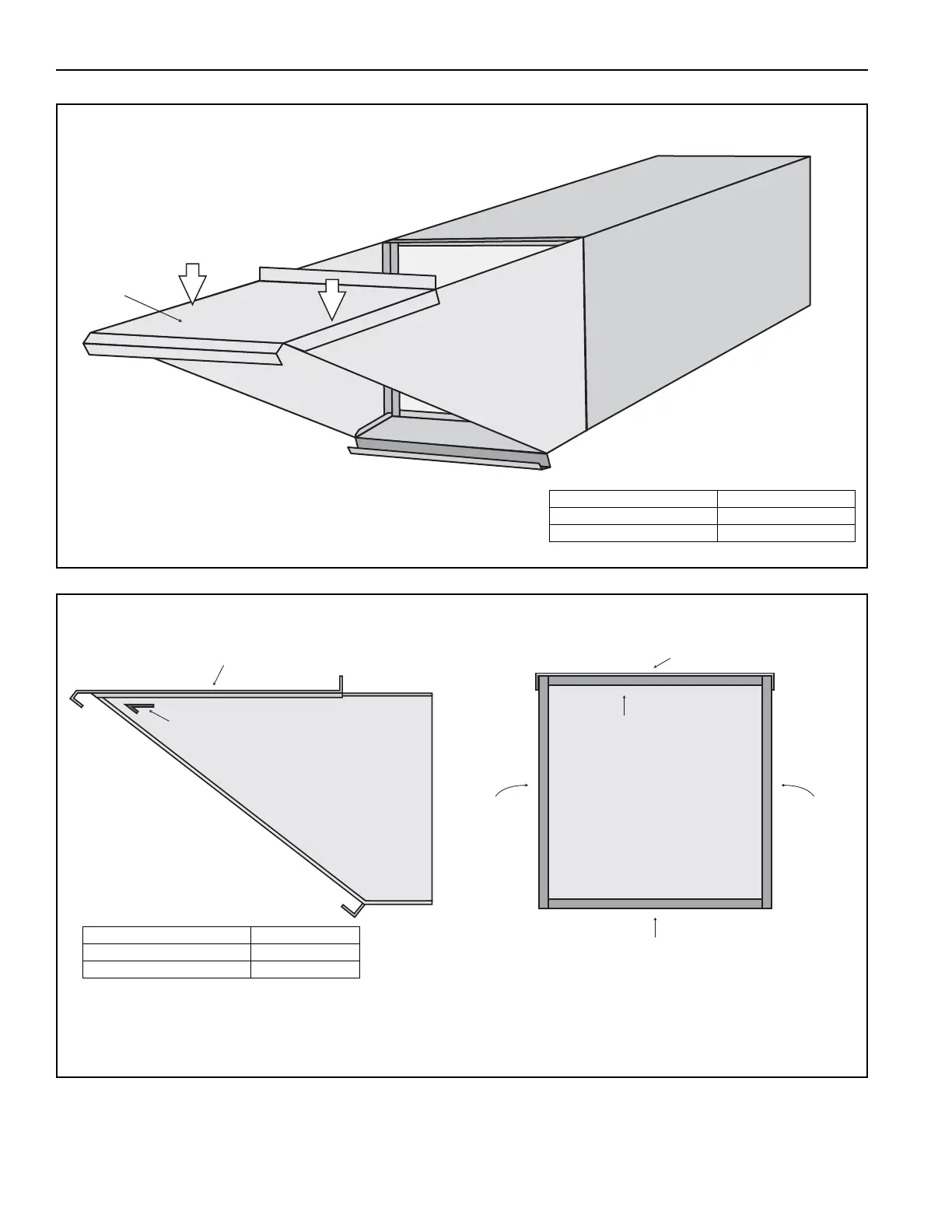

Attach top front panel to the sidewall panels using four
TEK self-tapping screws on each side. Ensure that the side
tabs of the top panel are to the outside of the side panels.
Description Part Number
Top Front Panel 13505076/13505096
TEK Screw 13404
Top Front Panel
Top Inner Filter Rail
Top Front Panel
Bottom Rail
Right
Panel
Left
Panel
Top Inner Filter Rail
SIDE VIEW REVERSE INLET VIEW
Attach the top inner filter rail to the inside of the front top panel using four TEK self tapping screws.
Ensure that the rail is installed with the ends tight against the flanges of the sidewall panels and the
angle opening toward the inside of the inlet hood.
Description Part Number
Top Inner Filter Rail 13505068
TEK Screw 13404
