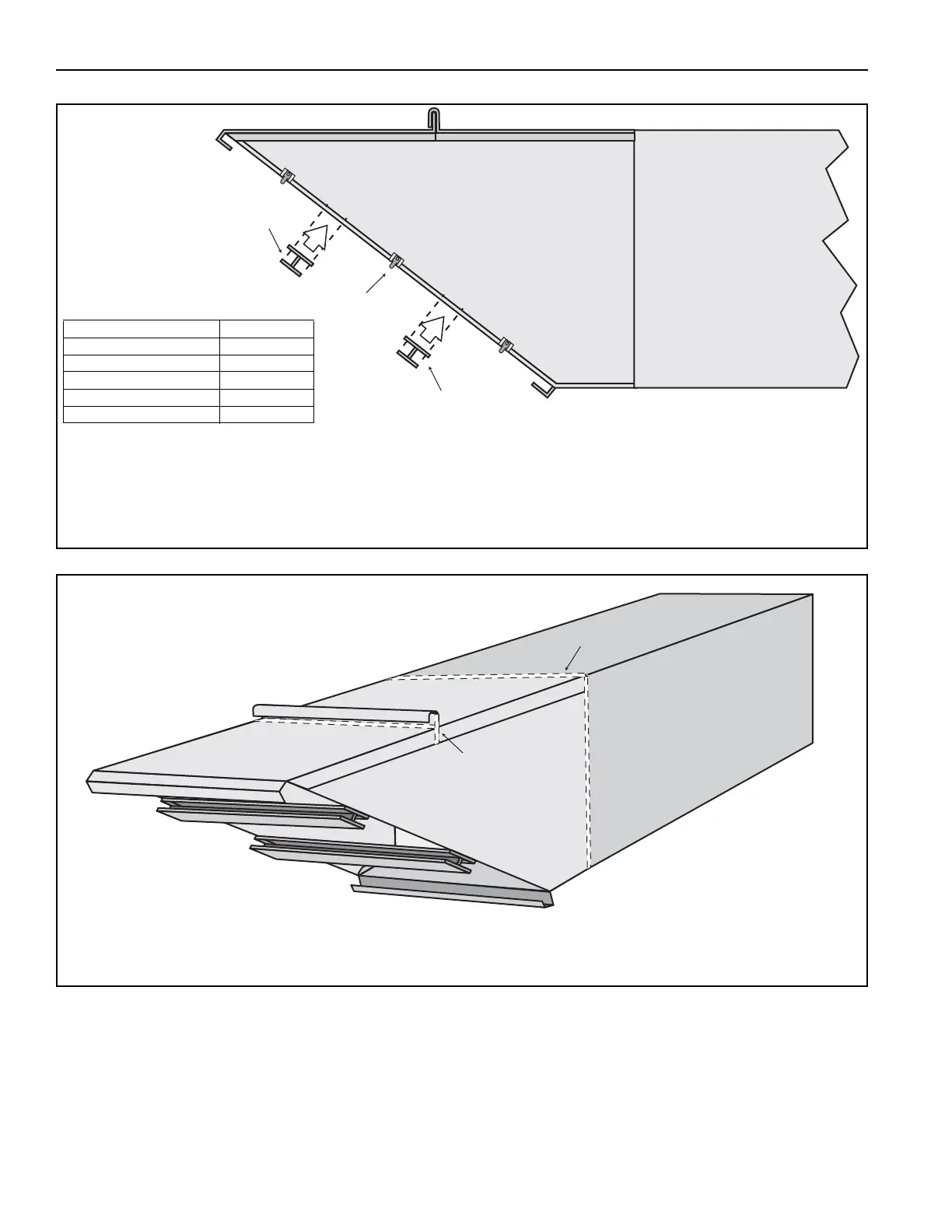

Attach the double-sided filter rails horizontally to the face of the inlet hood using two #10-24 x ½" bolts and
#10-24 nuts on each side. When attaching the filter rails, insert the bolt from the inside of the filter rail to
allow for maximum clearance for the filters. Attach the snap fastener with one TEK self-tapping screw
each. (First remove the washer as the washer will restrict the snap fastener, making it difficult to open.)
NOTE: Inlet hood with birdscreen does not require filters or snap fasteners.
Description Part Number
Double-Sided Filter Rails 13505066
#10-24 x 1/2" Bolt 27000
#10-24 Nut 20698
Snap Fastener 20900
TEK Screw 13404
Caulk the seams between the inlet hood and the air handler/filter section and on the open sides of
the J-bend that lock the roof panels together.
To Next Page
