Moisture Limiter
Media

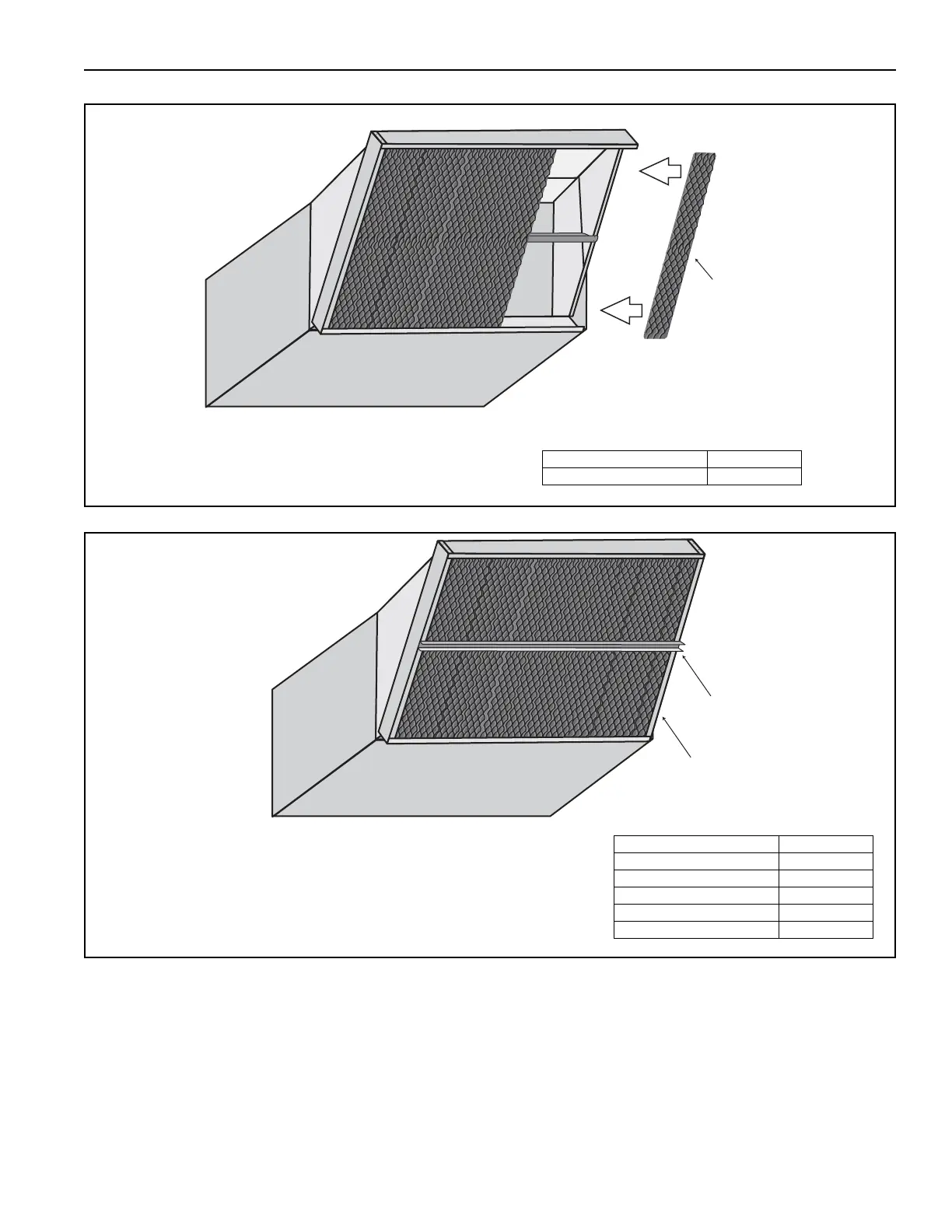

Insert the 3 pieces of 12" (30.5 cm) x 60" (152.4 cm)
moisture limiter media from the right side with the
long dimension running top to bottom.
Description Part Number
Moisture Limiter Media 90740001
Moisture Limiter
Side Cover
Outer Support Rail
Place the moisture limiter frame side cover in order to have the
flange at the top overlap the top of the frame. Attach to the inlet
hood rain gutter using eight TEK screws. Attach to the bottom
pan assembly and top with two #10-24 x ½" bolts and #10-24
nuts each. Attach front stiffeners to the left and right side of the
moisture limiter frame using four TEK screws for each support.
Description Part Number
Side Cover (ML) 13505099
Outer Support Rail 13505098
TEK Screw 13404
#10-24 x 1/2" Bolt 27000
#10-24 Nut 26098
