Rapid 2005 - SECTION 13: DAMPERS; 13.2 Inlet Damper

SECTION 12: INLET HOOD
57 of 147

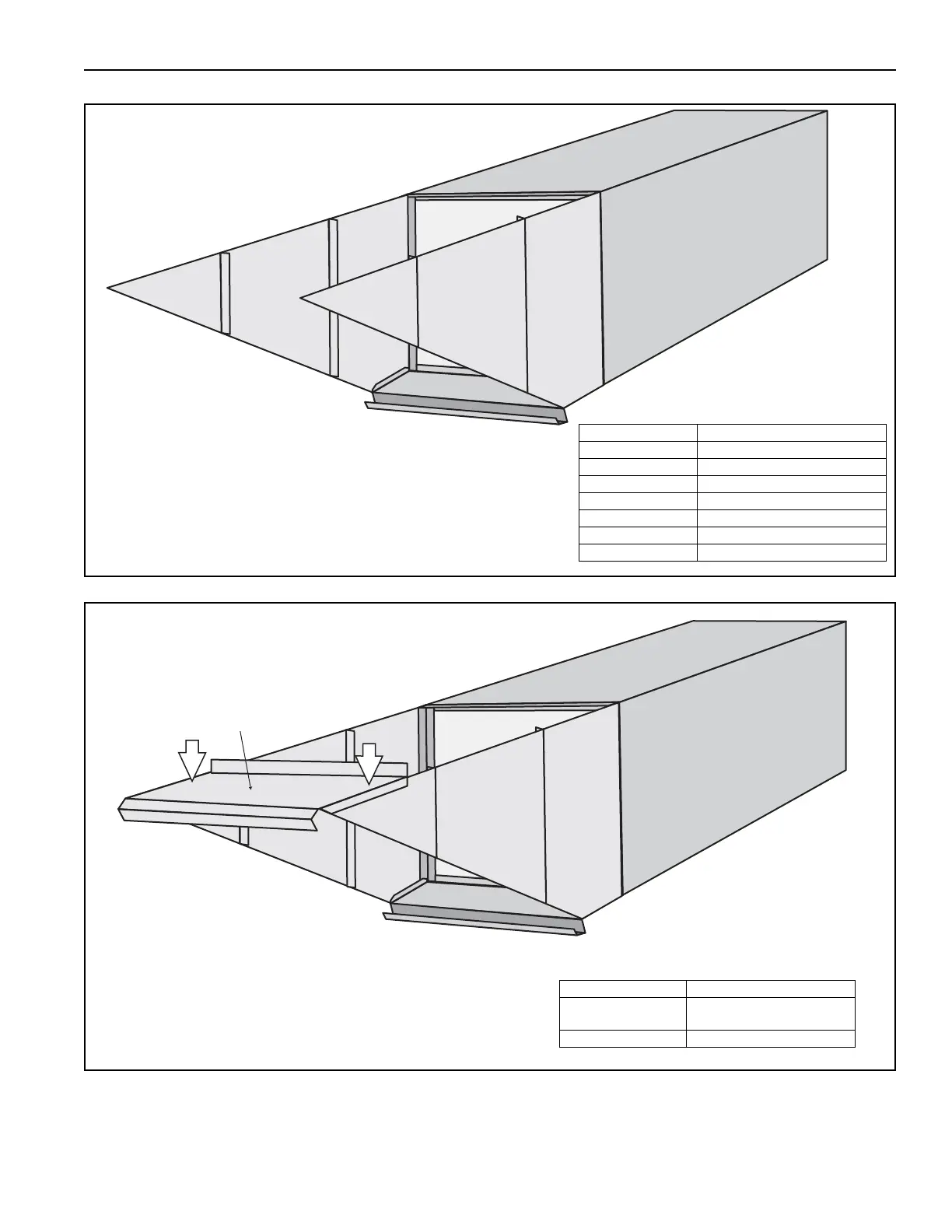

Step 12.3.4
Step 12.3.5
Panel 2
Right
Panel 3
Right
Panel 2
Left
Panel 3
Left
Attach the middle sidewall panels (left panel, right panel) with
four 5/16"-18 x 1 bolt, 5/16 flat washer, 5/16" flange nut each.
Attach outermost sidewall panels (left panel, right panel) to
each side of the inlet hood using three 5/16"-18 x 1 bolt,
5/16" flat washer, 5/16" flange nut.
Description Part Number
Left Side Panel #2 13205082 / 13305082
Right Side Panel #2 13205083 / 13305083
Left Side Panel #3 13205084 / 13305084
Right Side Panel #3 13205085 / 13305085
5/16"-18 x 1 Bolt 20507
5/16" Flat Washer 95211600
5/16" Nut Flange 20509
Top Front Panel 3
Attach top front panel to the sidewall panels using four TEK
self-tapping screws on each side.
NOTE: Ensure that the side tabs of the top panel are to the
outside of the side panels.
Description Part Number
Top Front Panel #3
13205077 / 13305077 /
13205096 / 13305096
TEK Screw 13404
