Raritan PM Series User Manual

Chapter 1: Installation and Initial Configuration
6
Operating Elevation 0-3000m
Conformance:
Safety UL/EN 61010-1
EMC/EMI EN61326-1, FCC Part 15 Class A

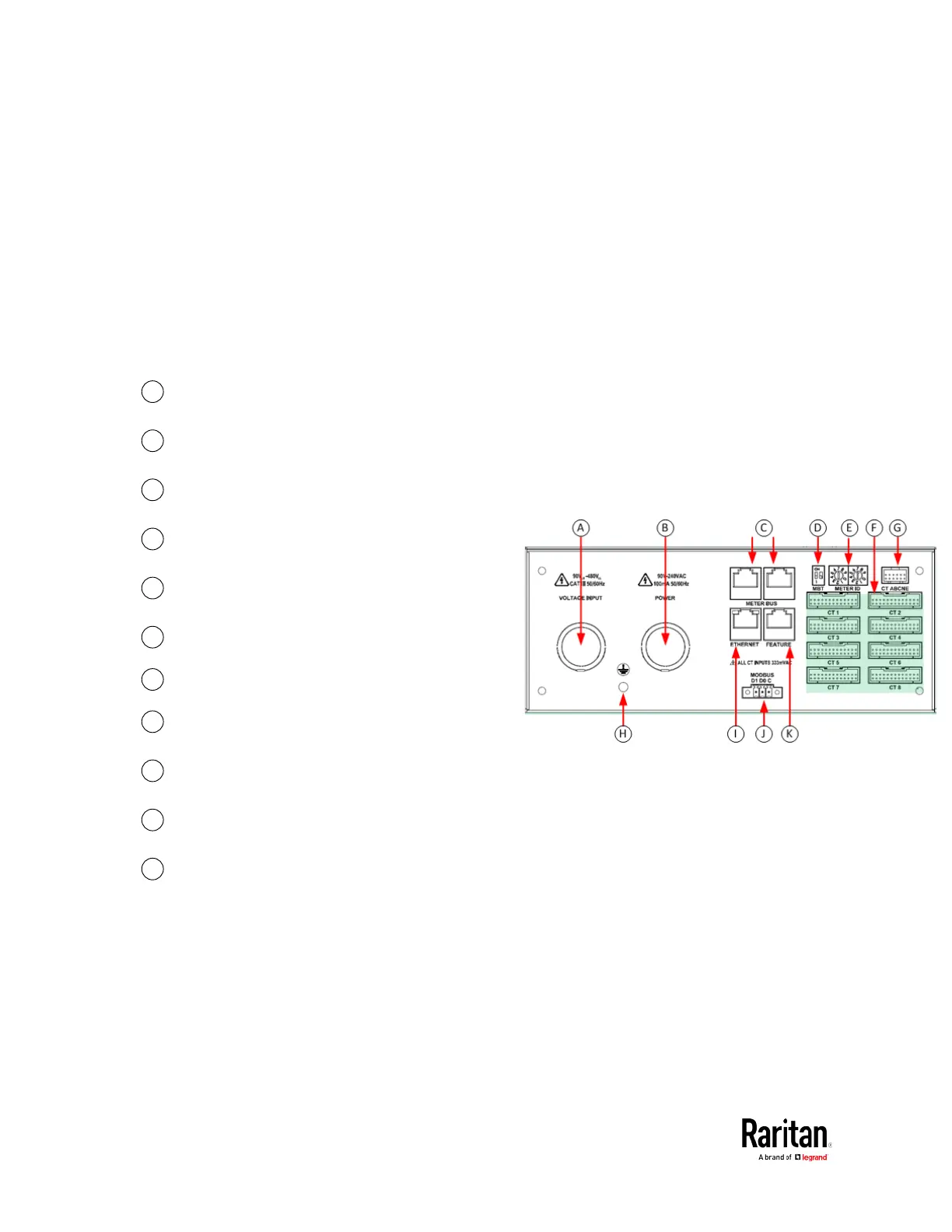

BCM2 Rear Panel Connectors and Controls
A
Voltage measurement input. Model
dependent: line cord or conduit knockout
B
Meter power input. Not present on line
cord models.
C
Meter Bus connectors. Daisy chains
multiple meters to common controller.
D
Meter Bus Terminator Switch.
Electrically terminates meter bus.
E
Meter ID switches. Assigns each meter a
unique ID number.
F
Eight branch circuit CT connectors (CT1
through CT8).
G
Panel mains CT connector.
H
Ground connection point (optionally
grounds meter to rack).
I
10/100 base-t Ethernet jack. (Models with
built-in meter controller.)
J
MODBUS RTU isolated RS485. (Models
with built-in meter controller.)
K
Sensor port. (Models with built-in meter
controller.)
