Raritan PM Series User Manual

Chapter 2: Connecting External Equipment (Optional)
62
Mixing Diverse Sensor Types
You can mix DPX, DPX2, DPX3 and DX sensor packages on one BCM2
according to the following sensor combinations. In some scenarios, the
DPX3-ENVHUB4 sensor hub is required.
The BCM2 does NOT support any other sensor-mixing combinations than
those described in this section.
When mixing different sensor types, remember that the BCM2 supports
a maximum of 32 sensors/actuators.

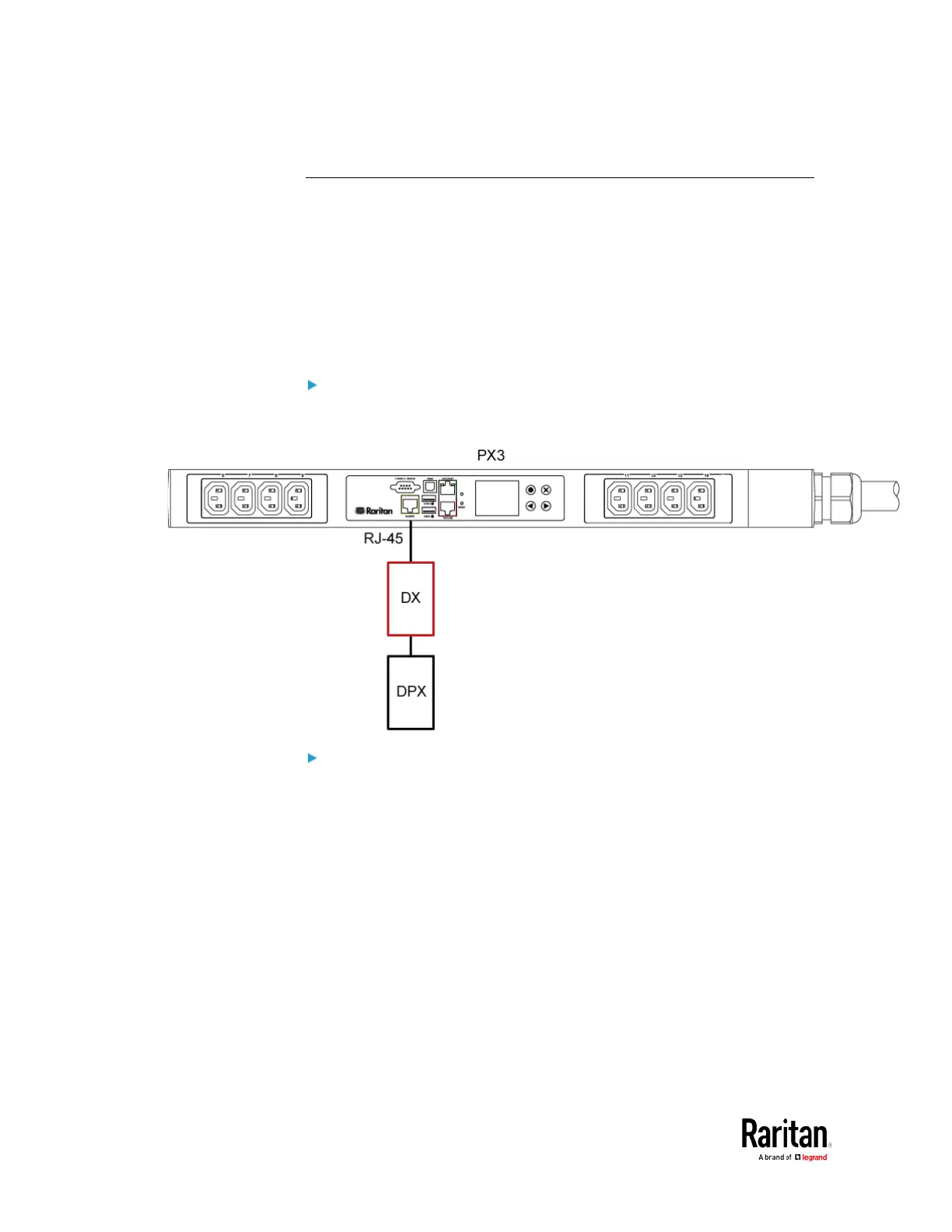

1 DX + 1 DPX:
• It is strongly recommended to use an RJ-12 to RJ-45 adapter to
connect the DPX sensor package to the DX sensor package.
Diverse combinations via the DPX3-ENVHUB4 sensor hub:
• You must use the DPX3-ENVHUB4 sensor hub instead of the old
DPX-ENVHUB4 sensor hub. Each port on the hub supports any of the
following:
 A DX sensor package
 A chain of DX sensor packages
 A DPX3 sensor package
 A chain of DPX3 sensor packages
 A DPX2 sensor package
 A DPX sensor package
