Raritan PM Series User Manual

Chapter 1: Installation and Initial Configuration
12

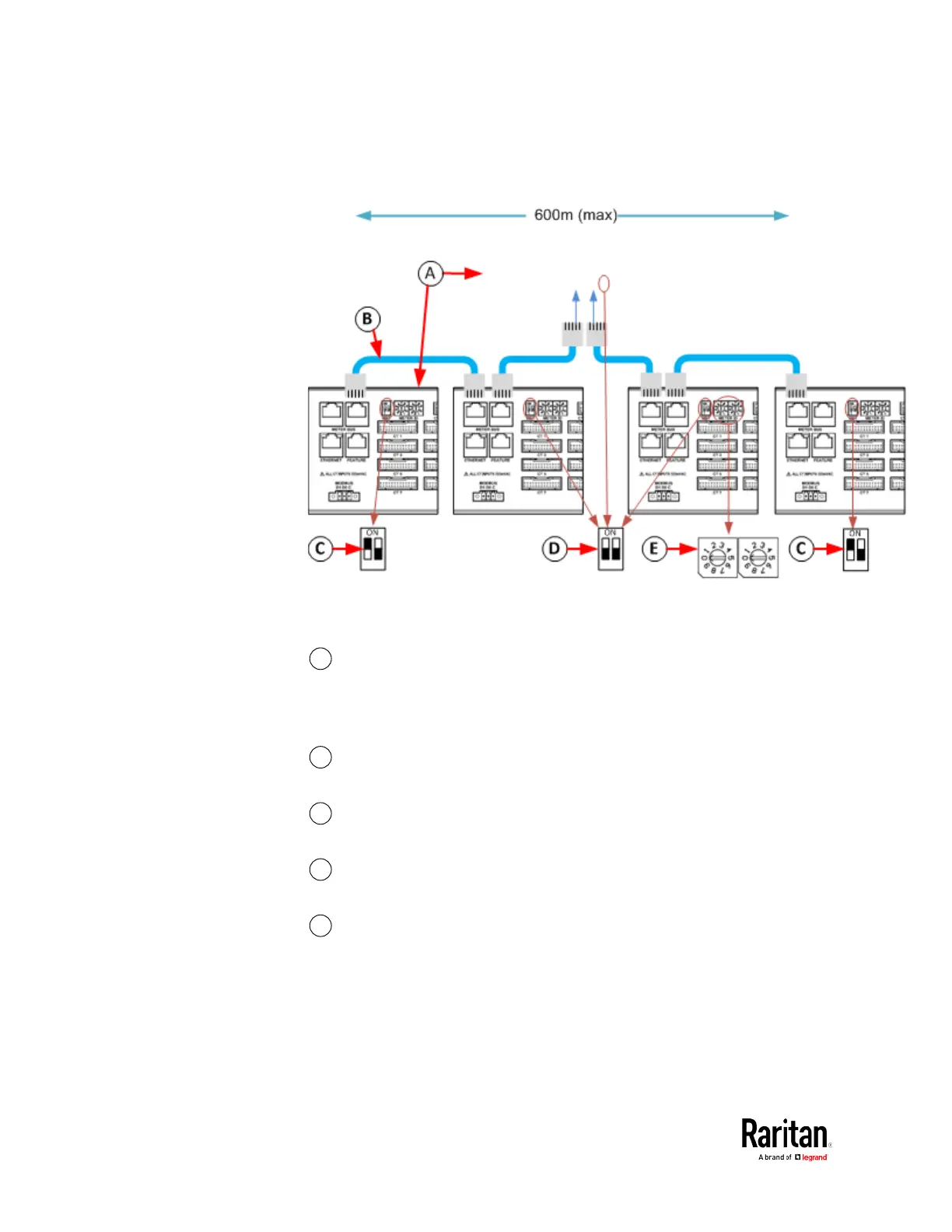

Controller Wiring to Meters
A
Daisy chain:
 Meter with built-in controller + 1 to 7
controller-less meters
or
 external controller + 1 to 8 controller-less
meters.
B
All cables shielded Cat-5, each cable: 100m
max. length.
C
Switch MBT (terminator) ON for devices at ends
of daisy chain.
D
Switch MBT OFF for devices in middle of daisy
chain.
E
Assign each meter unique ID: valid values 01
through 08
