Raytheon V8010 User Manual

133 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Page #2 background image

Loading...

Page #2 background image

:

WCOLOR

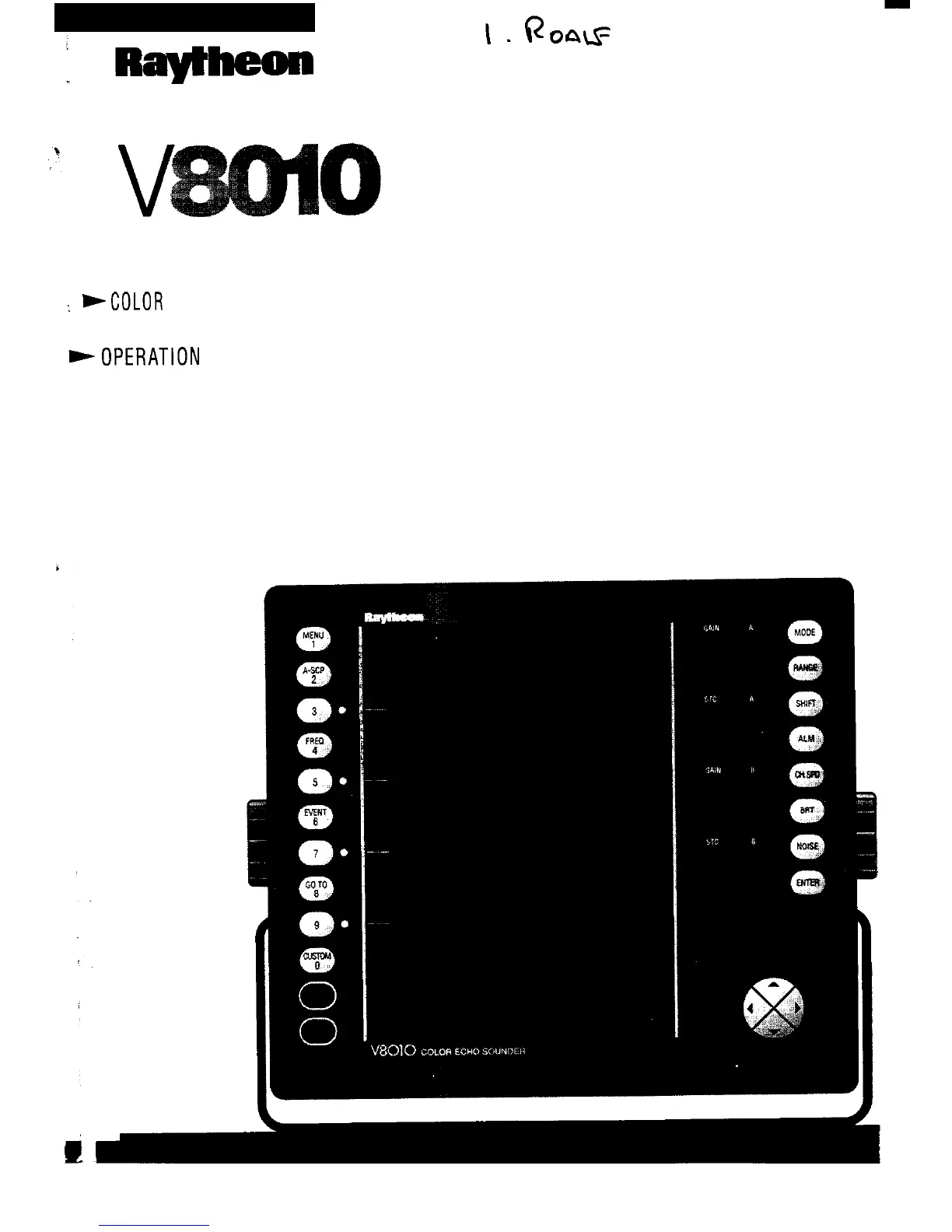

ECHO SOUNDER

+OPERATlON

MANUAL

Table of Contents

Default Chapter5
- Table of Contents5
General Information9
Installing the Display Unit9
About this Manual10
Echo Sounding General Information11
Gps General Information13
- Installation17
General17
Unpacking and Inspection17
- Equipment Supplied17
- Accessories & Options18
  - Calibrate TX Frequency18
  - Installing the Display Unit 119
- Standard Mounting19
- Console Mounting19
Connections22
- Power Input22
- Data Input/Outputs23
- 4.2.3 Self Test Mode24
- Auto Temperature Calibrate Mode24
- GPS Sensor(Option)25
- Seatalk Interface27
- Video Output27
- Grounding the Echosounder28
Transducer Installation28
- General Information28
- General Mounting Considerations29
  - Mounting Location-Displacement Hulls30
- 252BL Lexan Transducer Installation32
- 252BB Bronze Thru-Hull Transducer42
  - Locating the 252BB42
  - Preparing the Installation43
- Installing the Speedftemperature Unit46
Getting Started49
- The Keyboard50
The Basic Controls52
- The Power Control Keys52
- Brilliance Control53
  - Backlighting the Keypad53
Display Modes53
- STD Fishfinder Mode54
- 3.3.2 STDISTD Mode67
- STD/ZOOM Mode67
- 3.3.4 Stdlbtm Display68
- Cruise Display68
  - CRUISE Operations69
  - NAV Alarms - the Set Alarm Menu70
- 3.3.6 PLOT/TEMP Mode76
- NAVIGATION Display80
  - Navigation Operations81
- The CUSTOM Key82
MENU Key Operations82
- FISHFINDING Menu83
- PLOTFEMP Menu85
  - TRACK CONTROL Menu85
- NAVIGATION Menu88
  - NAVIGATE SETUP Menu89
- Routeplans98
  - ROUTE Menu99
Gps Mode104
- Getting Started with GPS105
- The SATELLITE STATUS Page108
  - SATELLITE - SF Menu110
System Setups114
Input/Output114
- Navin114
- Data out114
- Heading in115
- Speedin115
Units115
- Selecting Units of Depth116
- Changing Temperature Units116
- Changing Units of Speed116
- Changing Language117
CALIBRATE Menu117
- Calibrate Temperature117
- Calibrate Speed118
Master Reset119
- Maintenance121
General121
- Paddle Wheel Maintenance121
- Transducer Maintenance122
Electrical122
- Replacing the Fuse122
- Replacing the Batten123
  - Self Test Mode 1123
- Service Alignments124
