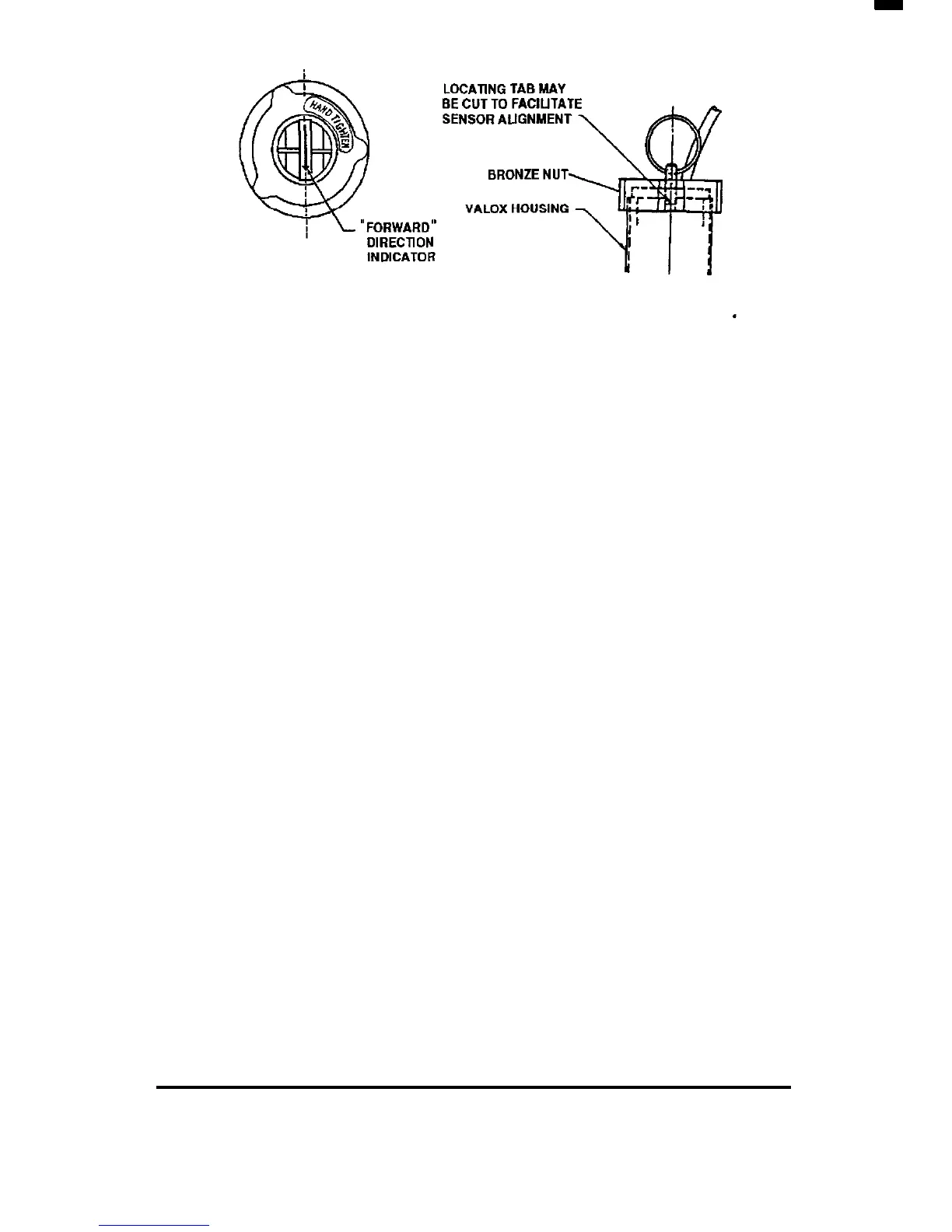

6. Inside the hull re-install the flanged locking nut. Before tightening,
reinsert the paddle wheel assembly and verify that the arrow is pointing
forward (paralleling the centerline) when seated in the notch. Adjust as
necessary and then tighten the nut. Then tighten the cap nut.
Note: If, later on the alignment of the speed module is not satisfactory,
the locating tab in the paddle wheel valox housing could be removed to
permit repositioning of the assembly within the housing.
INSTALLATION 39
