PAPER END DETECTION
B421 4 SM
1.7 PAPER END DETECTION

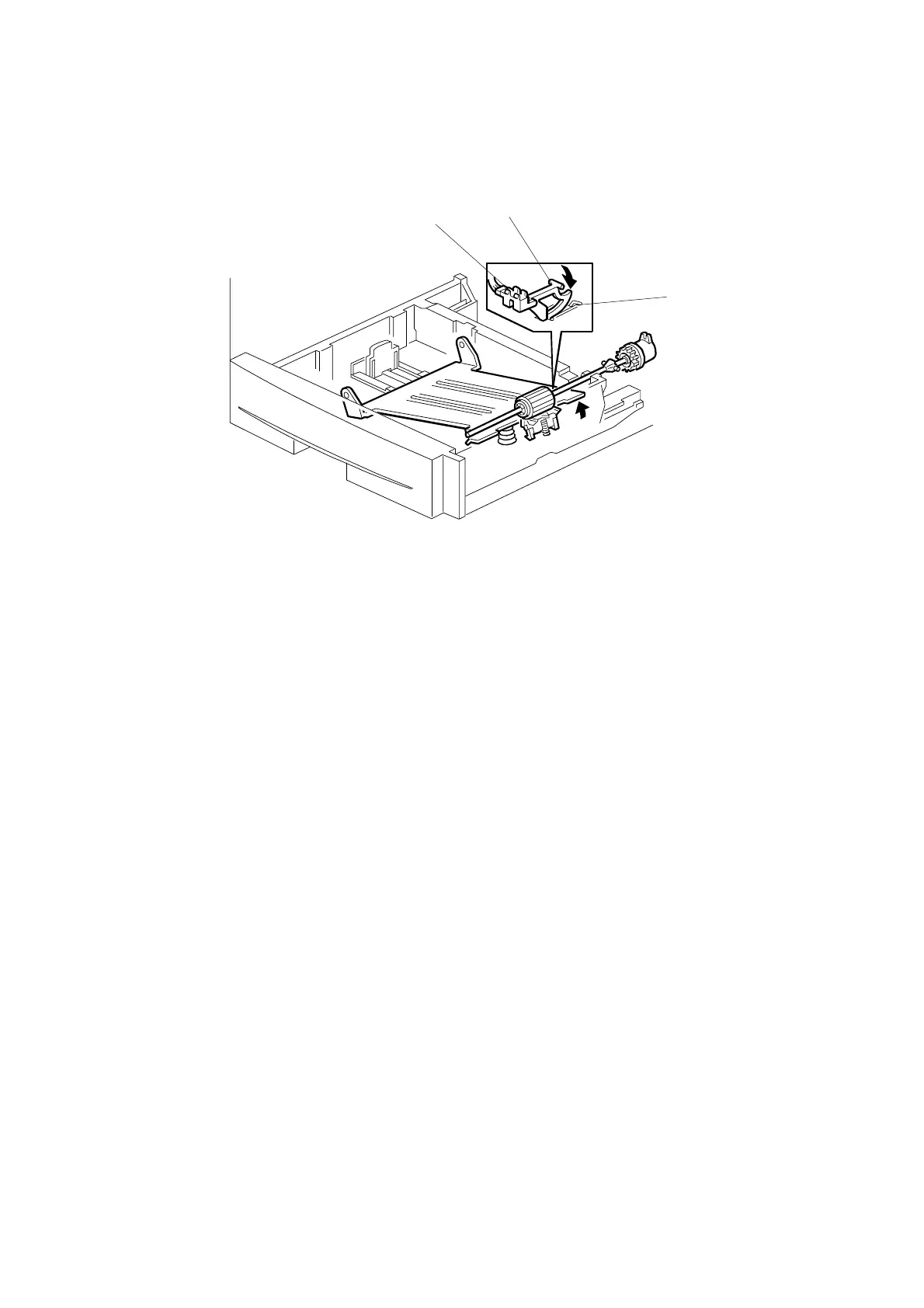

[A]: Paper End Feeler
[B]: Paper End Sensor
[C]: Cutout in Paper Tray
• If paper is present: feeler [A] pushed up, deactivating sensor [B].
• If no paper is present: feeler [A] drops into cutout [C], activating sensor [B].
• The feeler is rounded so that it lifts out of the way when the tray is inserted or
pulled out.
B421D103.WMF
