PAPER FEED SECTION
B044/B045/B046 3-24 SM

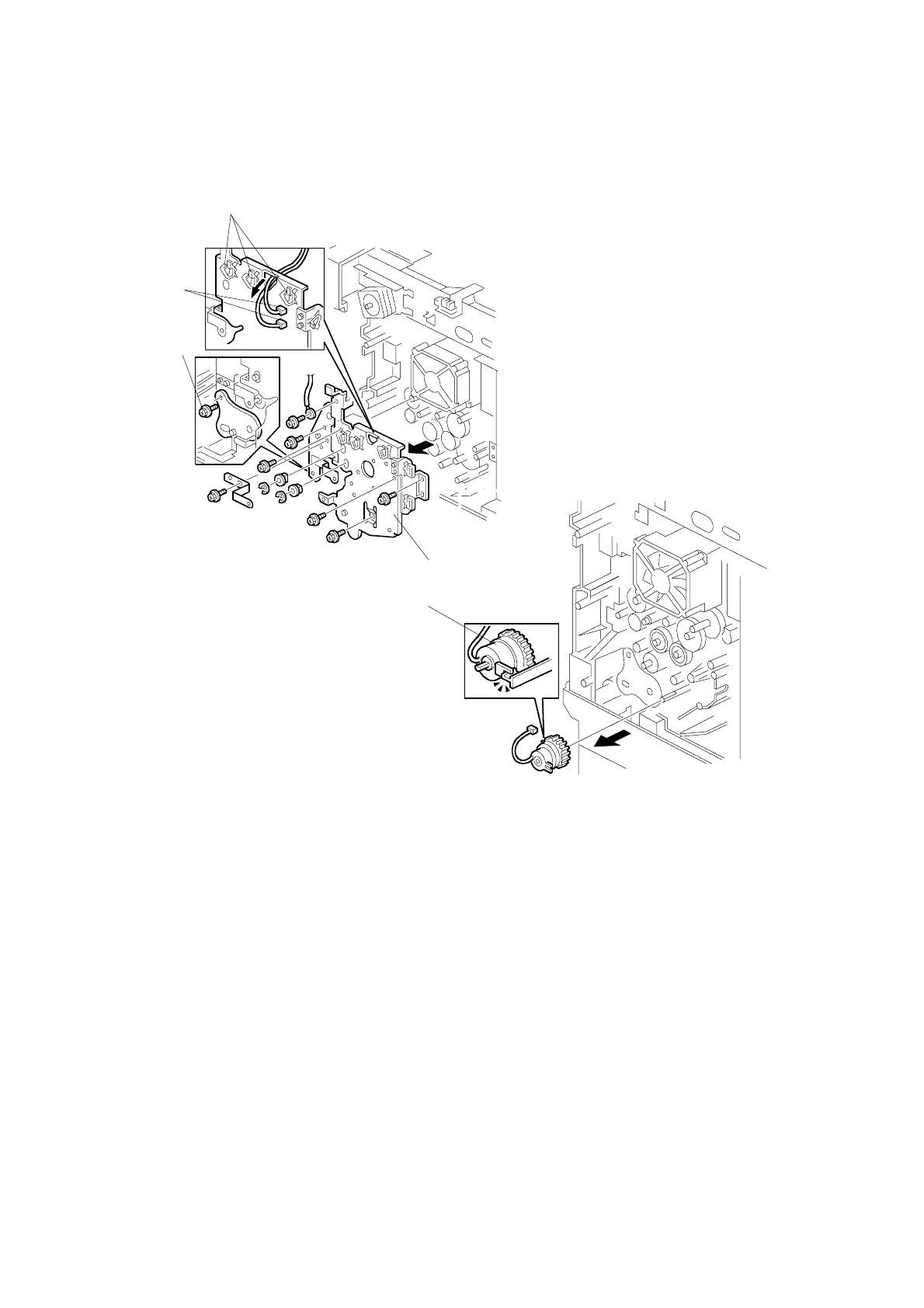

3.8.9 PAPER FEED CLUTCH
1. Pull the paper tray partially out of the unit.
2. High-voltage power supply board
(☛ 3.12.2)
3. Main motor (☛ 3.12.4)
4. Remove 1 screw [A] from the small cover plate.
5. Open 3 clamps [B] on the large cover plate, and remove the wiring.
6. Detach two connectors [C] from the FCU.
7. Large cover plate [D] (! × 7, # × 2, 2 bushings)
8. Paper feed clutch [E]
B046R920.WMF
B046R922.WMF
[A]
[C]
[D]
[B]
[E]
