DRIVE SECTION
B421 8 SM
2.4 DRIVE SECTION

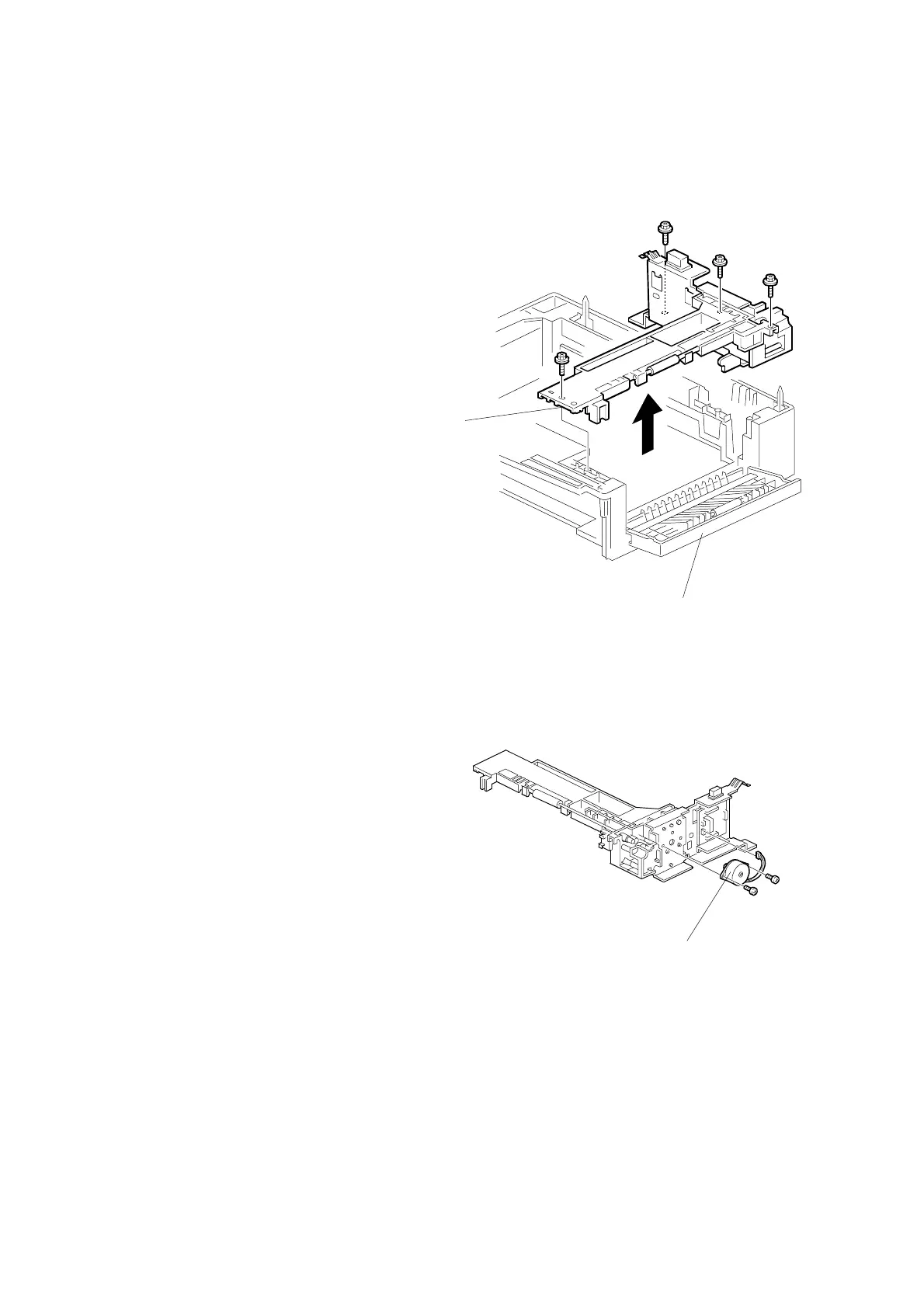

2.4.1 DRIVE BLOCK
1. Remove copier from paper tray unit
(☛ 2.2).
2. Open the paper tray unit's right door
[A].
3. Drive block [B] (# × 4)
2.4.2 PAPER FEED MOTOR
1. Drive block (☛ 2.4.1)
2. Paper feed motor [A] (" × 1)
B421R102.WMF
B421R105.WMF
[A]
[B]
[A]
