Ricoh aficio 1013F - Bypass Paper End Sensor (B044 and B046 Only); Registration Sensor

PAPER FEED SECTION
SM 3-21 B044/B045/B046
Replacement
and
Adjustment

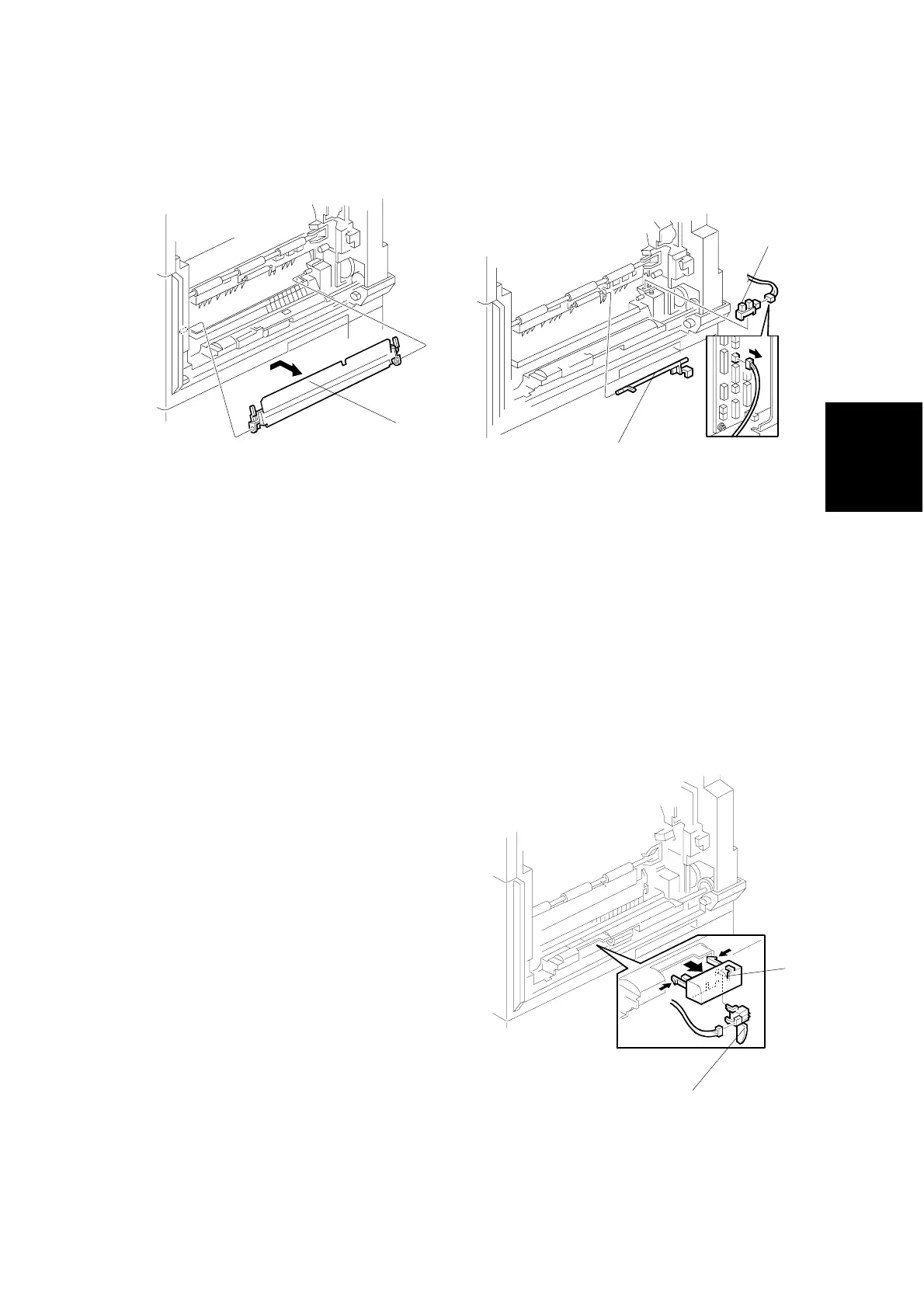

3.8.3 REGISTRATION SENSOR
1. Take out the paper tray.
2. Open the right door.
3. Black guide piece [A]
4. Registration sensor feeler [B]
5. Registration sensor [C] (" × 1)
3.8.4 BYPASS PAPER END SENSOR (B044 AND B046 ONLY)
1. Right door (☛ 3.3.9)
2. Detach the sensor compartment [A].
3. Bypass paper end sensor [B] (" × 1)
B046R926.WMF
B046R927.WMF
B046R924.WMF
[A]
[B]
[A]
[B]
[C]
