Ricoh aficio 1013F - Bypass Tray (B044 and B046 Only); Right Door

EXTERIOR COVER AND OPERATION PANEL
SM 3-7 B044/B045/B046
Replacement
and
Adjustment

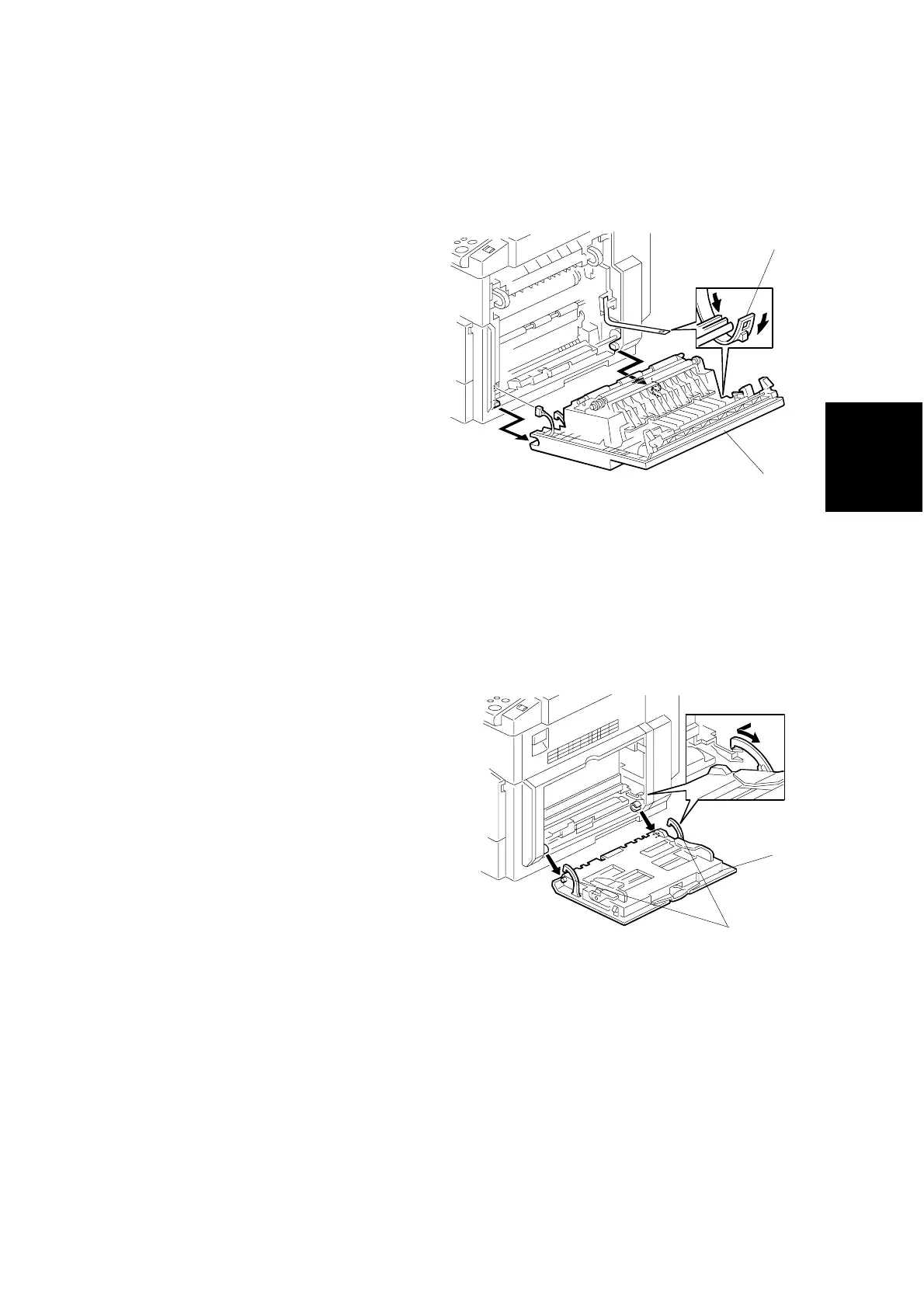

3.3.9 RIGHT DOOR
1. Open the right door [A].
2. Undo the strap [B].
3. Right door (" × 1)
3.3.10 BYPASS TRAY (B044 AND B046 ONLY)
1. Press the stopper rails [A] inward and
remove the bypass tray [B].
B046R909.WMF
B046R908.WMF
[A]
[B]
[A]
[B]
