Ricoh aficio 1013F - Sensors

SENSORS
SM 7 B421
Paper Tray
Unit
B421
2.3 SENSORS
1. Remove the copier from the paper tray
unit (☛ 2.2).
2. Open the PTU's right door [A].
[B]: Paper end sensor (" × 1)
[C]: Paper feed sensor
(1 feeler [D], " × 1)

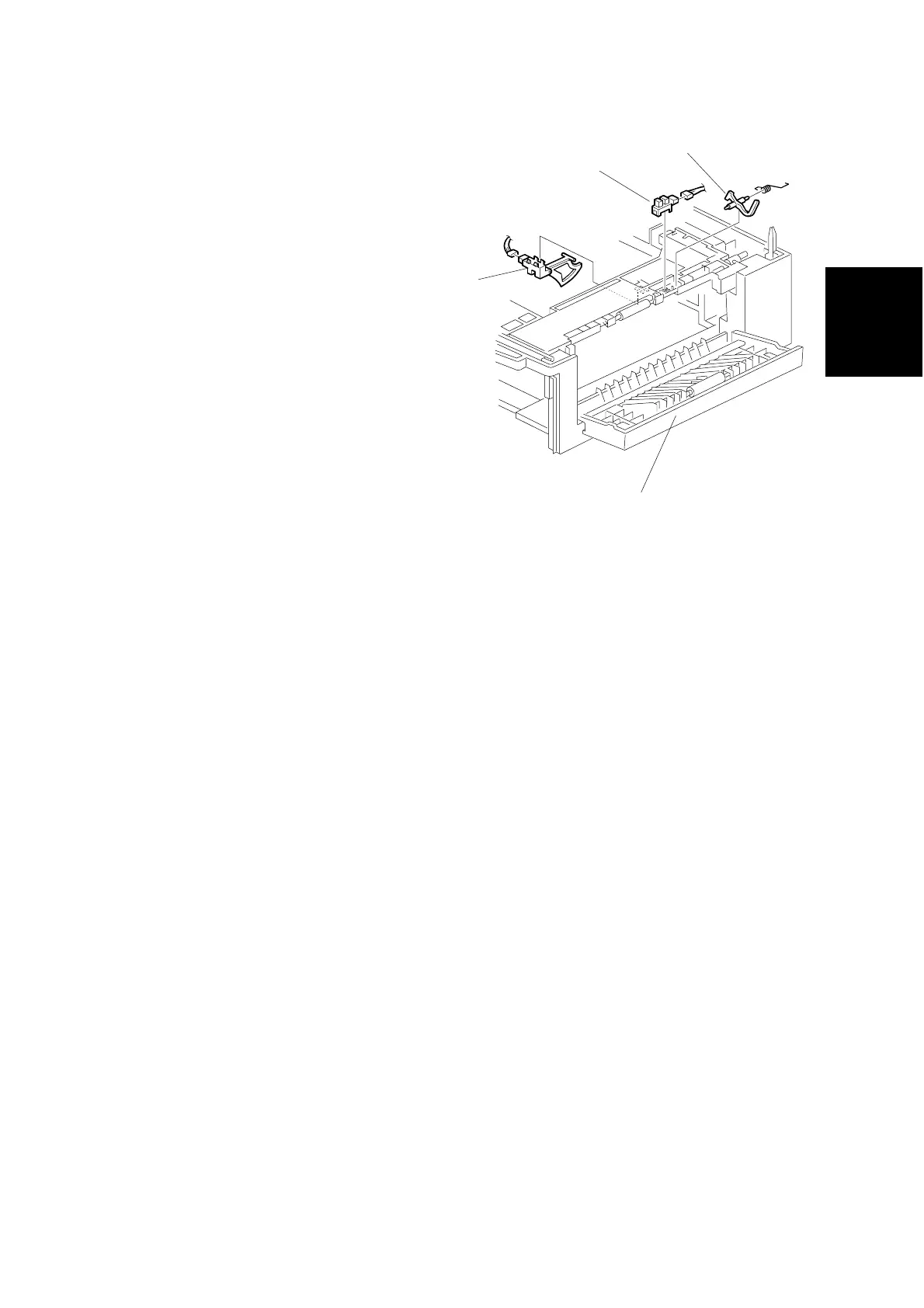

B421R103.WMF
[B]
[C]
[D]
[A]
