COPIER
SM 1-5 B044/B045/B046
Installation

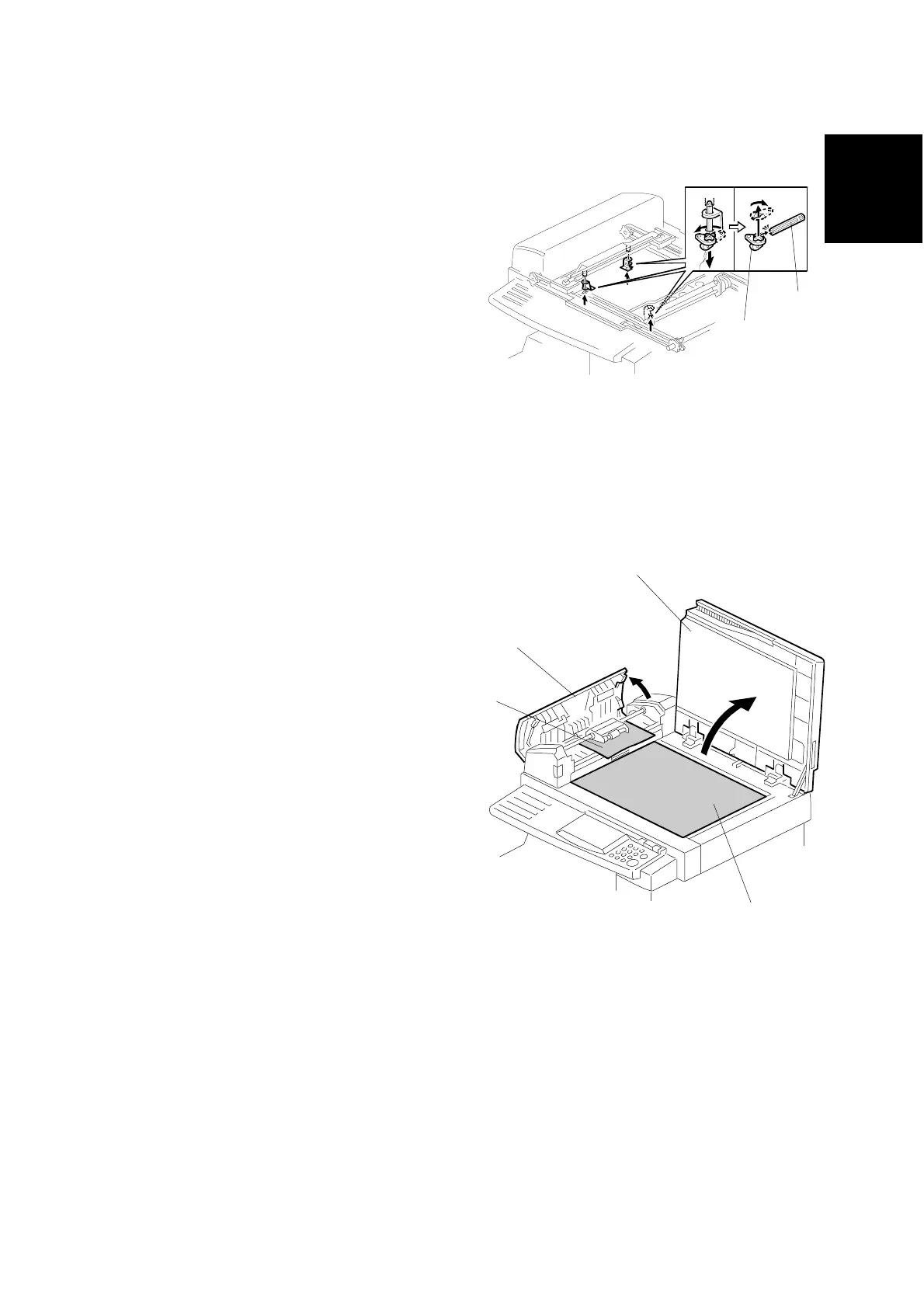

4. Remove the 3 scanner lock pins. (A
tag is hanging from each pin.) To
remove: Grasp the base of the pin [A],
turn 90 degrees, and pull down and
out.
5. Remove the tags from the pins. Then
break each pin off of its base [A],
discard the pin part [B], and set each
base [A] back into its original hole,
turning it 90° to lock it into place. (Be
sure to do this for all three pins.)
6. If installing a DF-equipped model
(B046): Raise the DF upper guide [C]
and remove the protective paper [D]
at the feed unit. Then lower the guide.
7. Open the platen cover [E] and remove
the protective paper [F] covering the
exposure glass. Then close the platen
cover.
B046I106.WMF
B046I107.WMF
[E]
[F]
[C]
[D]
[B]
[A]
