Ricoh D009 - Page 91

2000/3000-Sheet Finishers (B804/B805)
SM 2-45 D009/D011/D012/D013/D091/D092
Installation

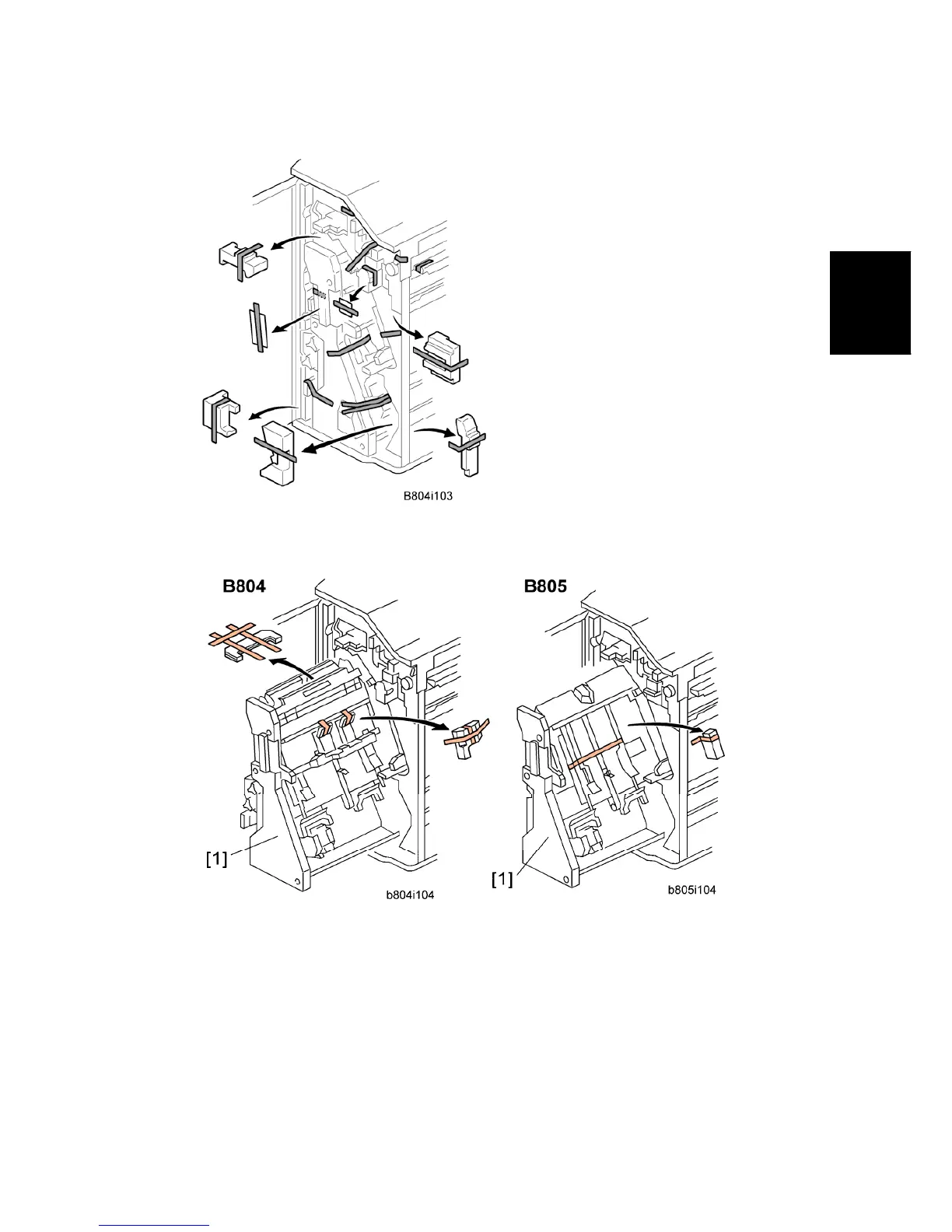

2. Open the front door, and then remove all tapes and packing materials from the inside
of the finisher.
3. Pull out the jogger unit [1], and then remove all tapes and retainers.
