1.Replacement and Adjustment
4

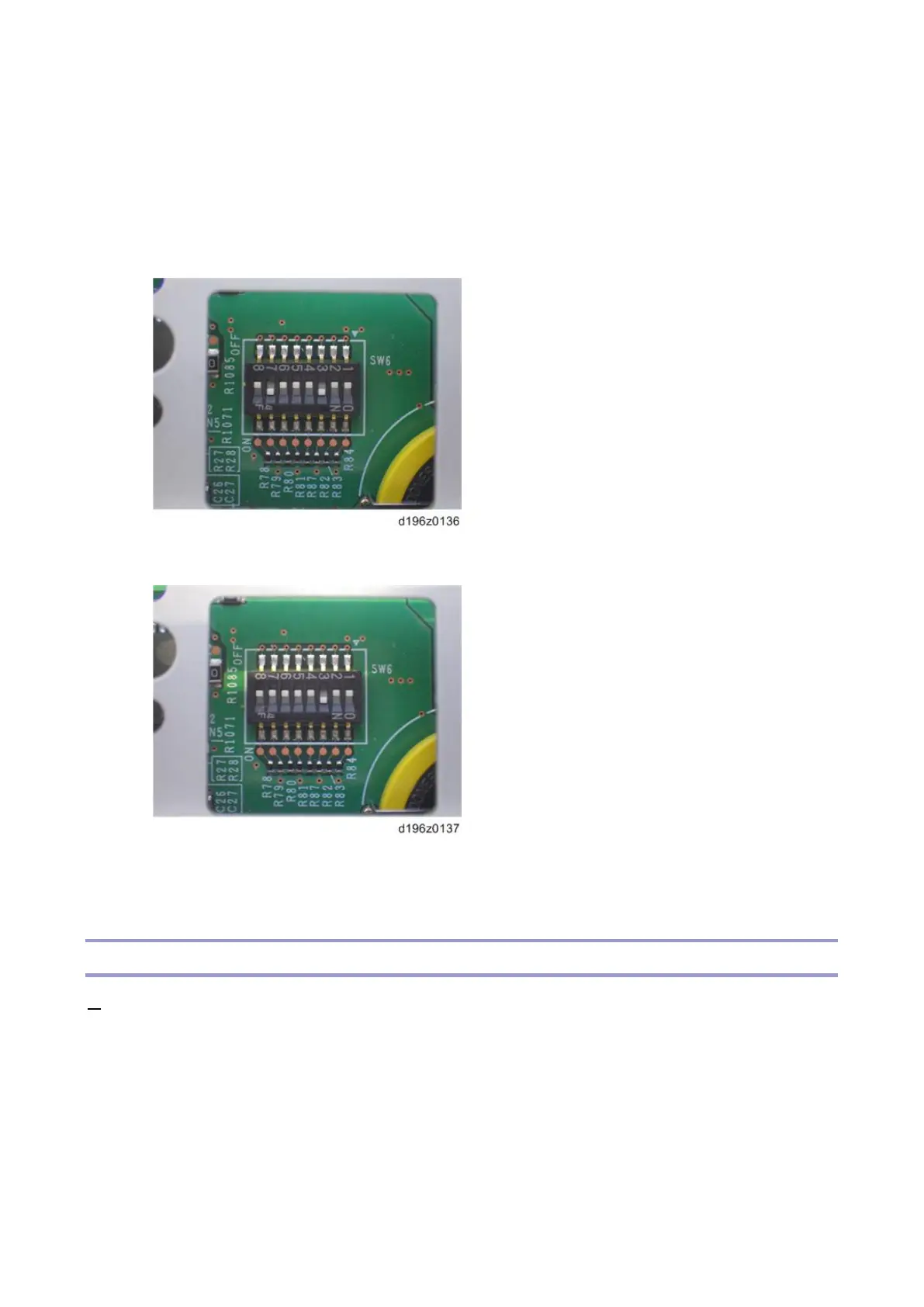

• The correct DIP switch setting depends on the MFP. Note the DIP switch settings of the old operation
panel unit before replacing, and apply the same settings to the new Smart Operation Panel. (Below are
two examples for DIP switch settings.)
• When No.3 and No.7 are set to ON
• This is the factory default setting of a service part
• For Type JX controllers
When only No.3 is set to ON
• For Type JL controllers
• If the DIP switch setting is wrong, SC672 will be displayed.
• After replacing the operation panel unit, make sure that the latest version of the firmware is installed on
the Smart Operation Panel. Update it if necessary (Updating the Smart Operation Panel).
CPU Board
1. Operation panel unit (Operation Panel Unit)

Ricoh MP C307 Specifications

General

Type	Multifunction Printer
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Maximum Paper Size	A4
Duplex Printing	Yes
Scan Resolution	600 x 600 dpi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating Systems Supported	Windows, Mac OS, Linux
Print Speed (Black)	30 ppm
Print Speed (Color)	30 ppm
Standard Paper Capacity	350 sheets
Supported Paper Sizes	A4, A5, A6, B5, B6, Letter, Legal
Scanner Type	Flatbed with ADF (Automatic Document Feeder)
Copier Speed (Black)	30 cpm
Copier Speed (Color)	30 cpm
Copy Resolution	Up to 600 dpi
Zoom Range	25% to 400%
Connectivity	Ethernet, USB
Max. Paper Capacity	1, 350 sheets
Display	10.1-inch color touchscreen
