1.Replacement and Adjustment
5

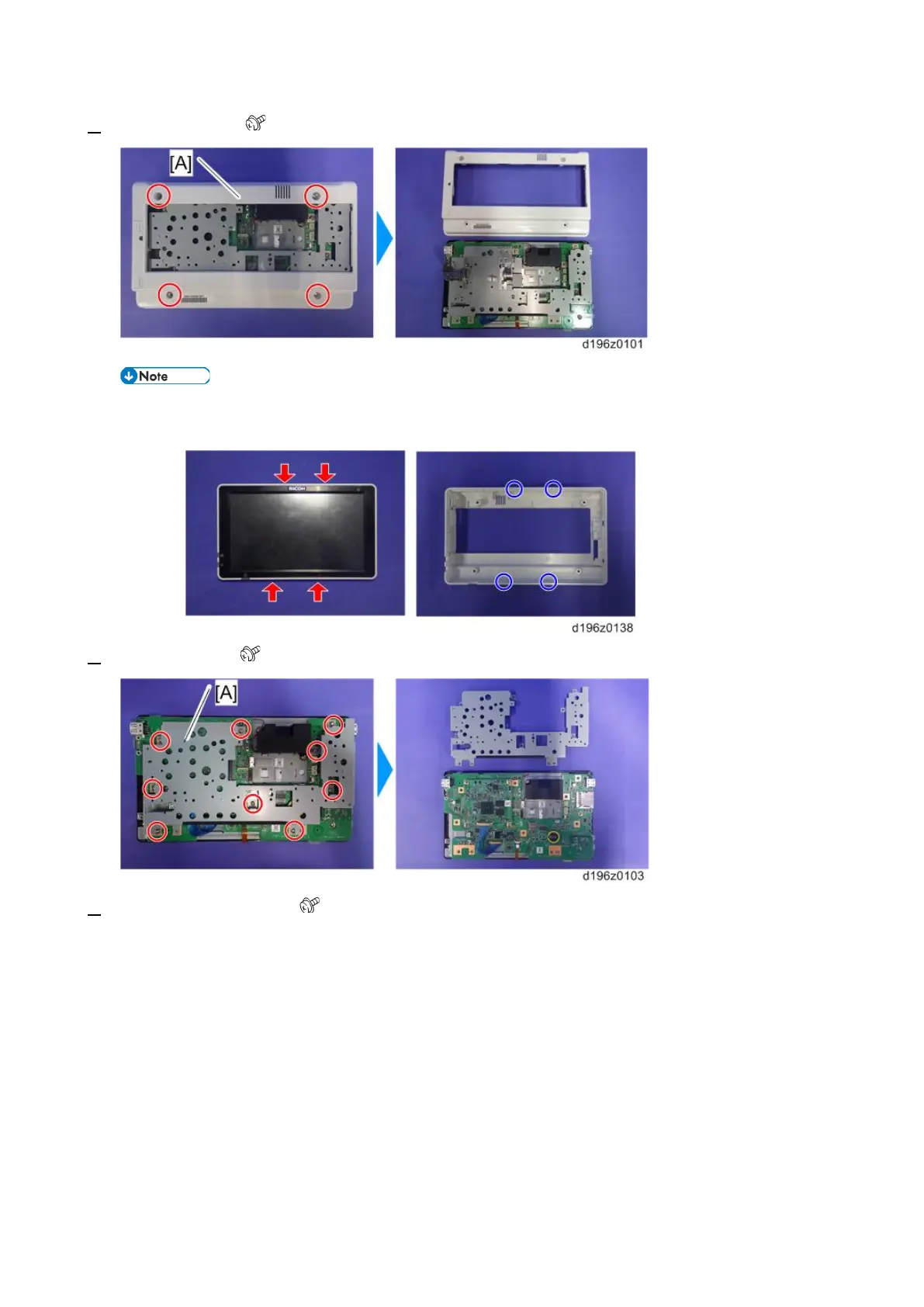

2. Bottom cover [A] ( ×4)
• There are four hooks inside the operation panel unit. Before removing the operation panel bottom
cover, check the photos below.
3. Base bracket [A] ( ×9)
4. Remove the fixing screws ( ×4) on the CPU board [A], and remove the CPU board from the micro
