IC Card Reader (External Option)
112

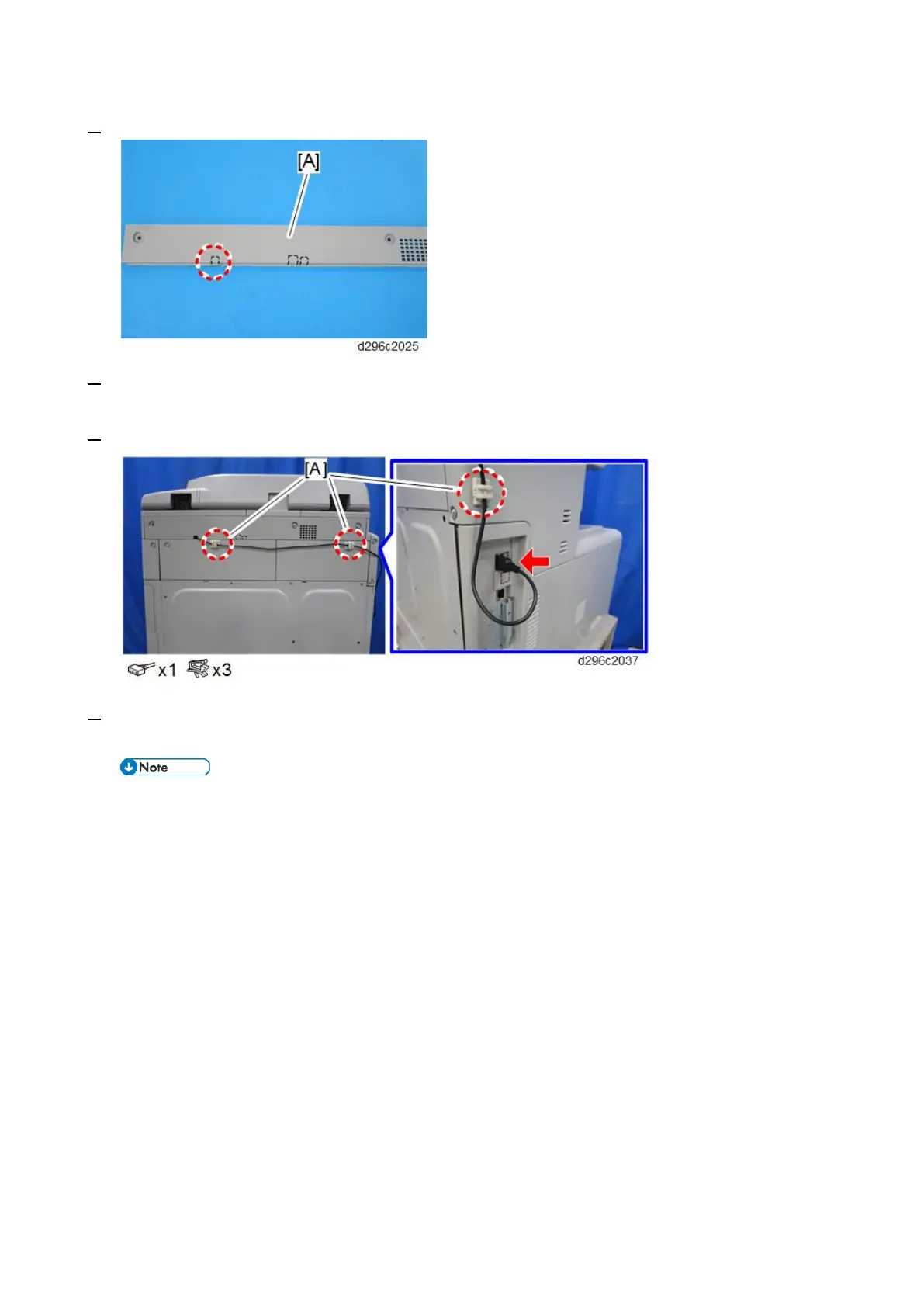

4. Cut out the hole for the USB cable to pass through the scanner rear cover [A].
5. Pass the USB cable from the IC card reader through the hole in the scanner rear cover, and then reassemble
the machine.
6. Attach the clamps [A] to prevent the cable from sagging.
7. Connect the USB cable to the USB connector at the left of the mainframe as shown above. Either
connector can be used.
• Obtain these clamps [A] in advance, because they are not included in this kit.
