Installing the double-feed sensor (emitter)

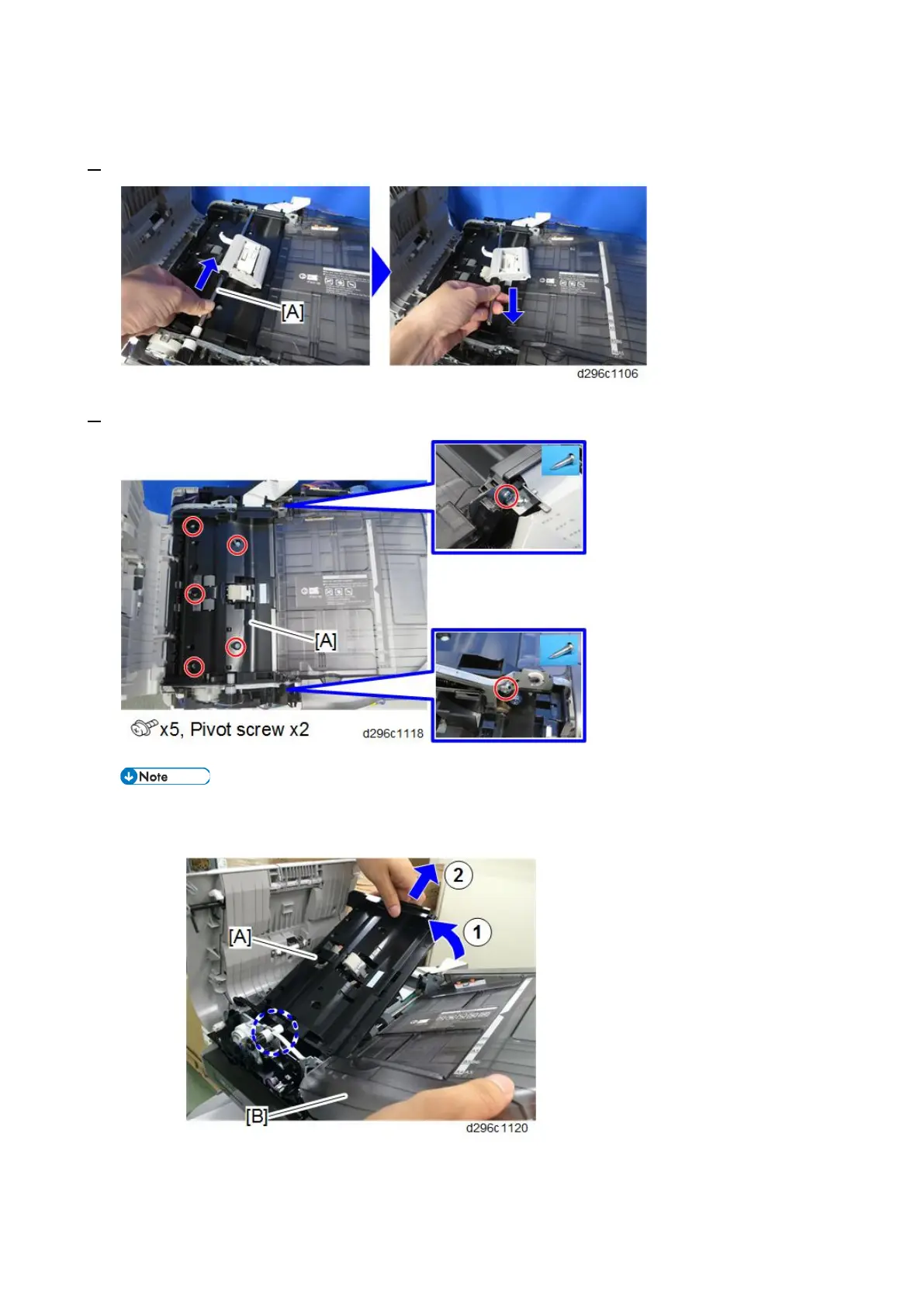

1. Slide the shaft [A] of the original feed unit toward the rear to remove it.
2. Remove the ADF inner cover [A].
• Lift the back of the ADF inner cover [A] while swinging up the original tray [B], and then slide
the ADF inner cover toward the back of the ADF unit.
