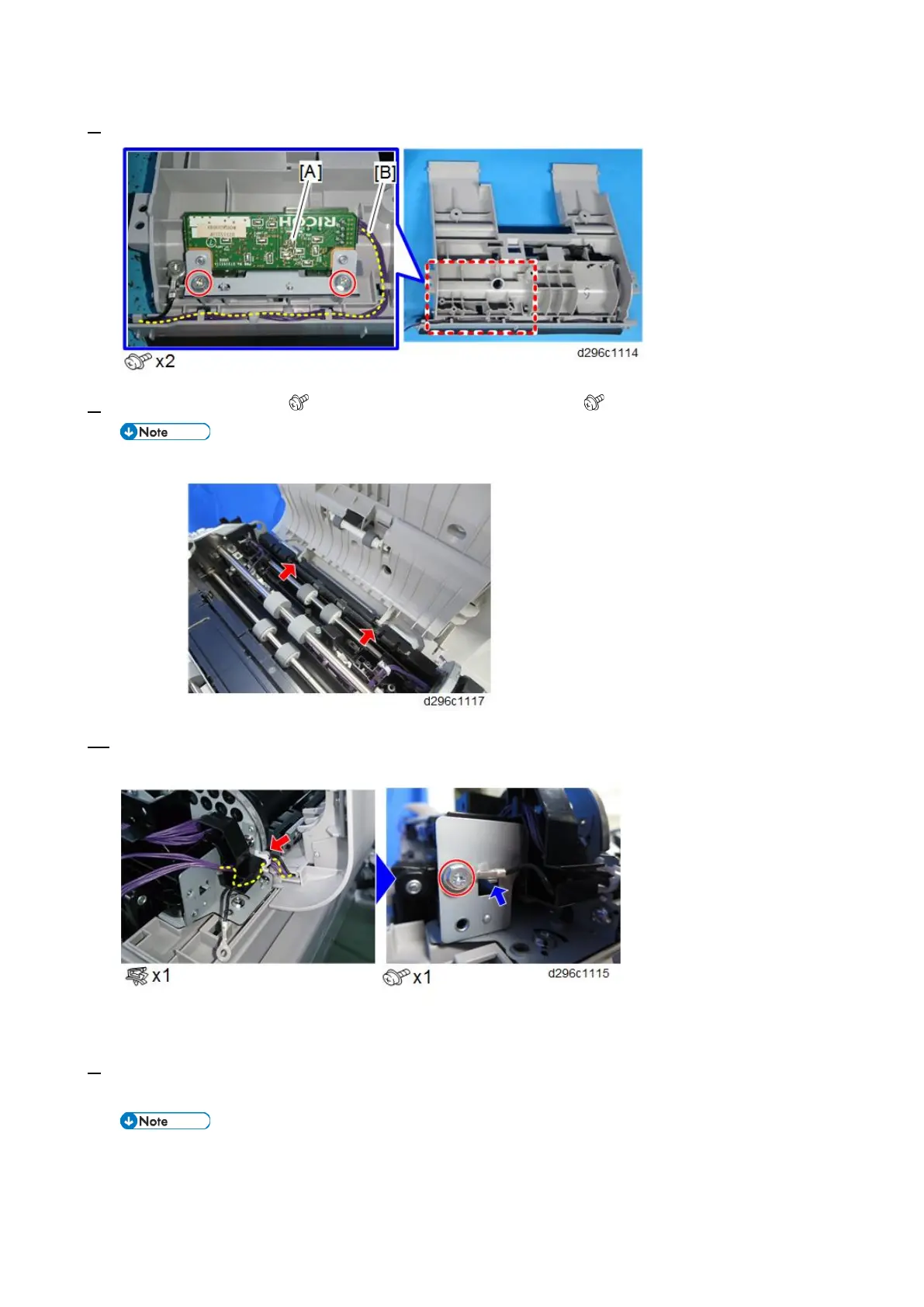

8. Route the harnesses [B].
9. Reattach the inner cover ( x5), and then reattach the ADF top cover ( x1).
• Make sure the ADF top cover is set correctly so that the two tabs fit into the holes.
10. Attach the clamp while the top cover is open, and attach the ground wire while putting it on the guide
(marked by the blue arrow). (Screw: M3x6)
Connecting the harnesses
1. Connect the harness to the connector of the double-feed sensor (emitter) [A] and ADF relay board [B]
(CN3), and then route it.
Connect with attention to the connector colors.
- Double-feed sensor: White connector
