Fusing
283

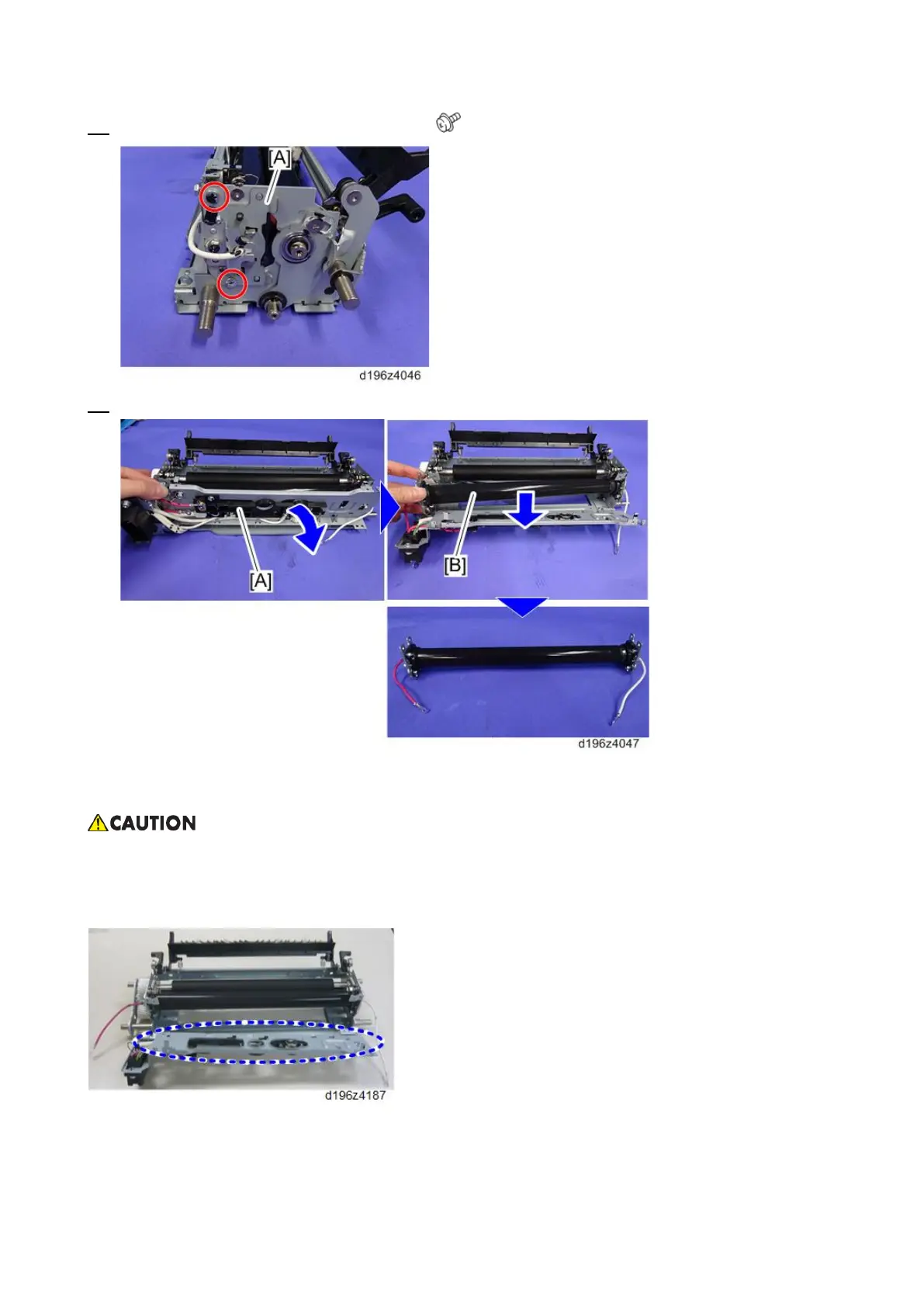

11. Remove the screws of the frame [A] at the left. ( × 2)
12. Pull out the rear frame [A], and take out the fusing sleeve belt assembly [B].
Do not touch the surface of the fusing sleeve belt assembly.
When reattaching the rear frame, do not let the fusing sleeve belt hit the projection of the thermostat and the
frame.
When reattaching the fusing sleeve belt assembly, do not let the fusing sleeve belt assembly hit the projection of
the sensor or the screws on the stay.
