Fusing
282
Do not apply excess force to the separation plate when removing it, to prevent the separation plate from
deforming.
When reattaching the separation plate, make sure that the plate is firmly attached to the frame hole.
8. Remove the fusing lamp harnesses. ( × 2)

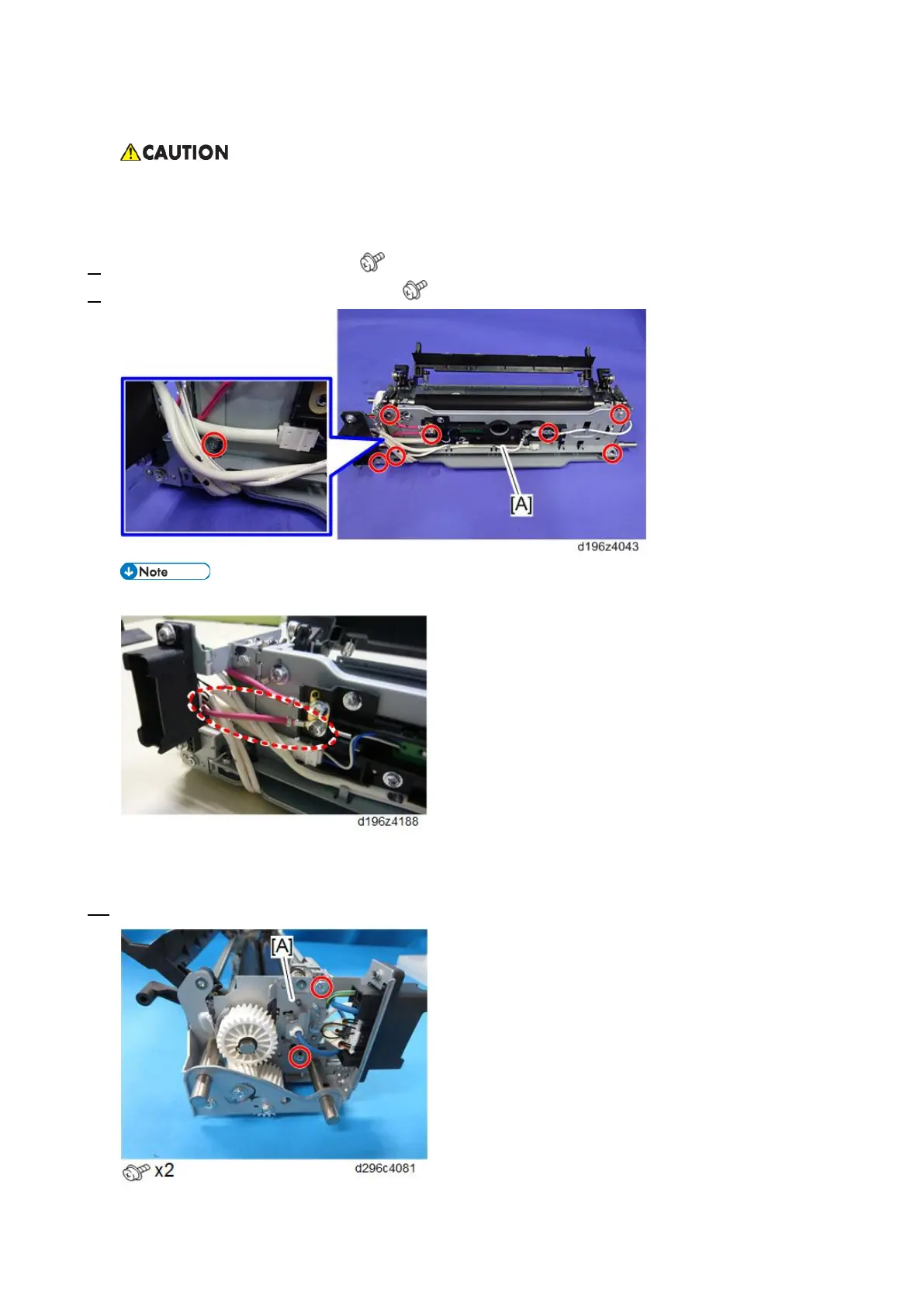

9. Remove the screws on the rear frame [A]. ( × 6)
When reattaching the harness, route the harness exactly the same way as before removal.
10. Remove the screws of the frame [A] at the right.
To Next Page
