Electrical Components
340

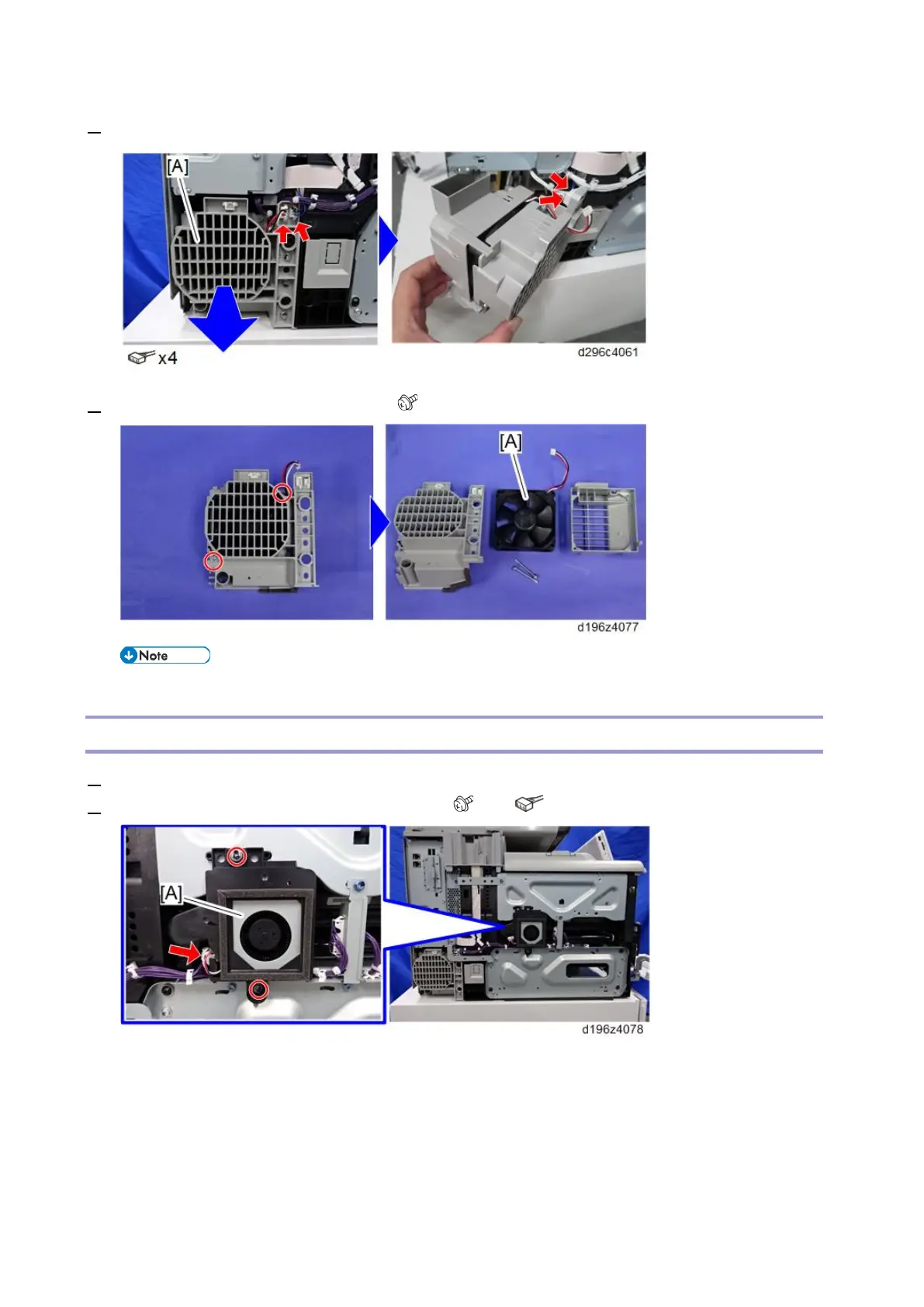

4. Disconnect the connectors and pull out the PSU fan [A] with the cover.
5. Remove the cover from the PSU fan [A]. ( × 2)
• Install the PSU fan with its label facing the inside of the machine.
PCDU Cooling Fan
1. Remove the left cover. (Left Cover)
2. Remove the PCDU cooling fan [A] with the duct. ( × 2, × 1)
To Next Page
