Electrical Components
341

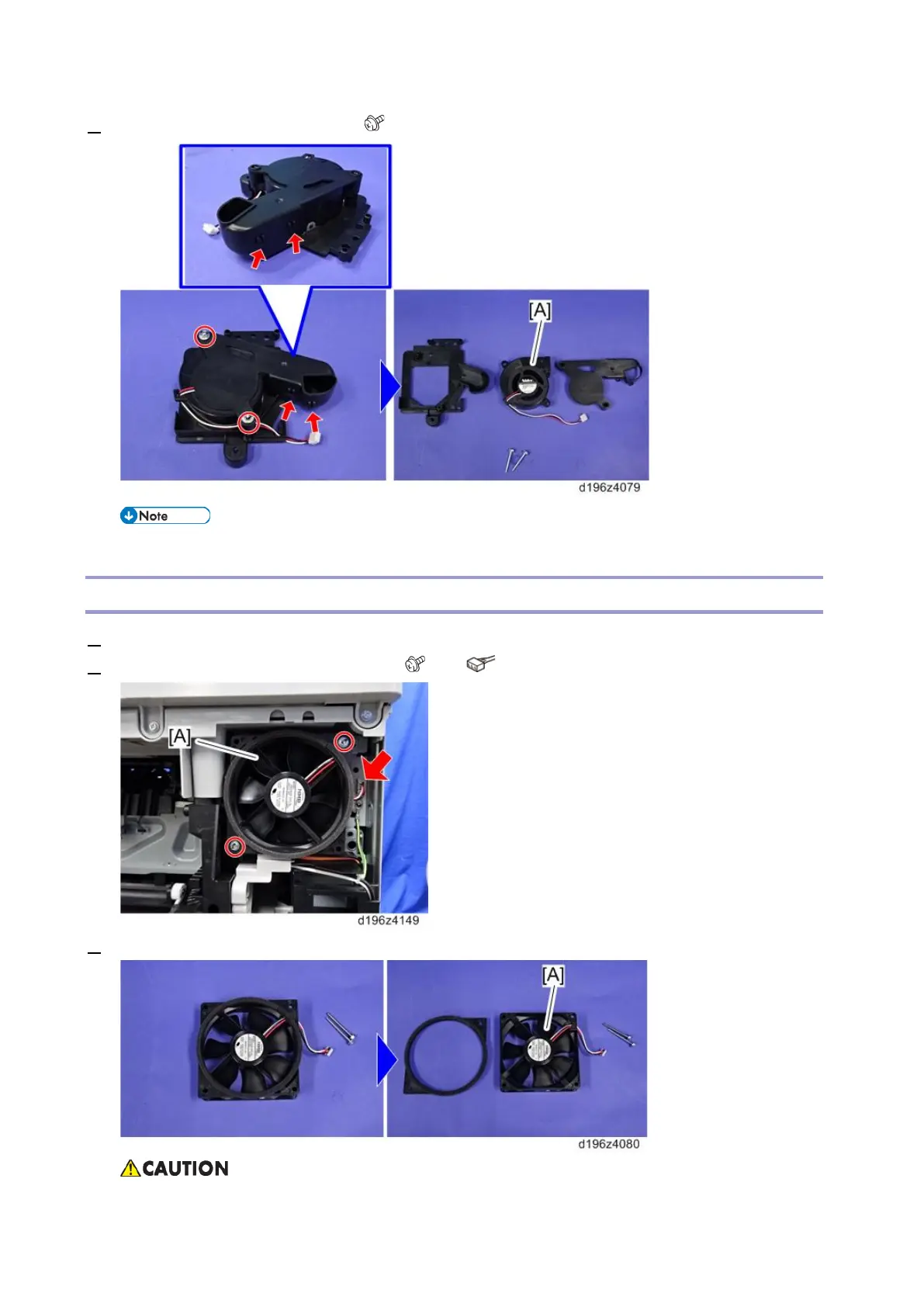

3. Remove the PCDU cooling fan [A]. ( × 2, hook × 4)
• Install the PCDU cooling fan with its label facing the inside of the machine.
Fusing Fan
1. Remove the right rear cover. (Right Rear Cover)
2. Remove the fusing fan [A] with the cover. ( × 2, × 1)
3. Remove the cover from the fusing fan [A].
• Install the fusing fan with its label facing the outside of the machine.
