Ricoh MP C307 User Manual

Capturing the Device Logs
387

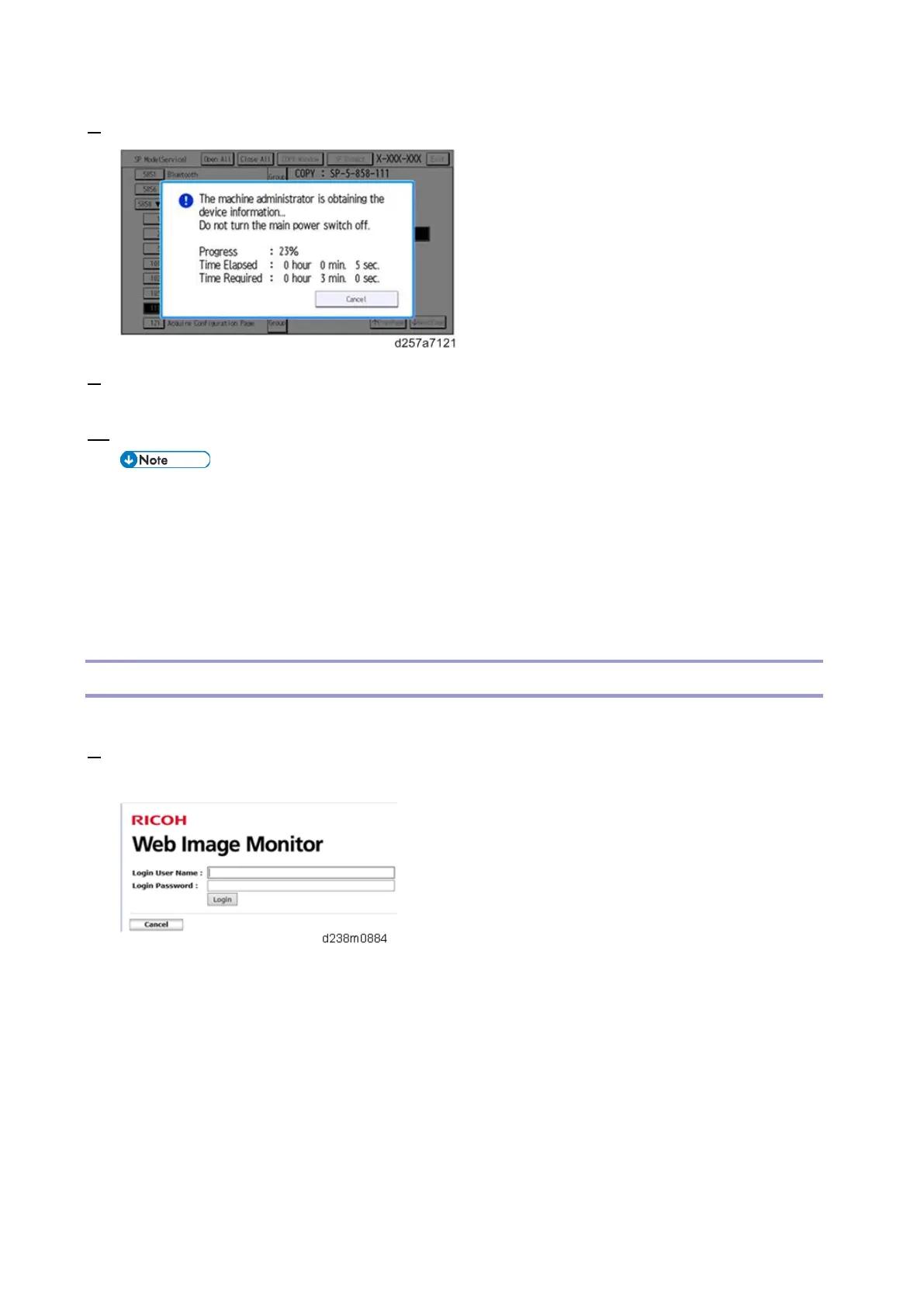

8. Wait for the information and/or logs to be copied to the SD card.
9. After a message stating that the process has completed appears on the operation panel, confirm that the
LED light next to the SD card slot is not flashing and then remove the SD card.
10. Make sure that the SD card access LED is off, then remove the SD card.
• The process of obtaining logs fails in the following cases:
- When the size of the logs to obtain exceeds the amount of space available on the SD card.
- When the SD card is removed while the logs are being copied to it.
- When the SD card is not formatted.
• If ‘failed’ appears on the touch panel display, turn the power off, and then recover from step 1
again.
Retrieving the Device Logs via Web Image Monitor
The device logs can be retrieved via the Web Image Monitor.
1. Access the following URL and logon as an administrator:
http://[IP address or host name]/web/entry/df/websys/direct/getSysInfo.cgi

Ricoh MP C307 Specifications

General

Type	Multifunction Printer
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Maximum Paper Size	A4
Duplex Printing	Yes
Scan Resolution	600 x 600 dpi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating Systems Supported	Windows, Mac OS, Linux
Print Speed (Black)	30 ppm
Print Speed (Color)	30 ppm
Standard Paper Capacity	350 sheets
Supported Paper Sizes	A4, A5, A6, B5, B6, Letter, Legal
Scanner Type	Flatbed with ADF (Automatic Document Feeder)
Copier Speed (Black)	30 cpm
Copier Speed (Color)	30 cpm
Copy Resolution	Up to 600 dpi
Zoom Range	25% to 400%
Connectivity	Ethernet, USB
Max. Paper Capacity	1, 350 sheets
Display	10.1-inch color touchscreen
