Jam Detection
515

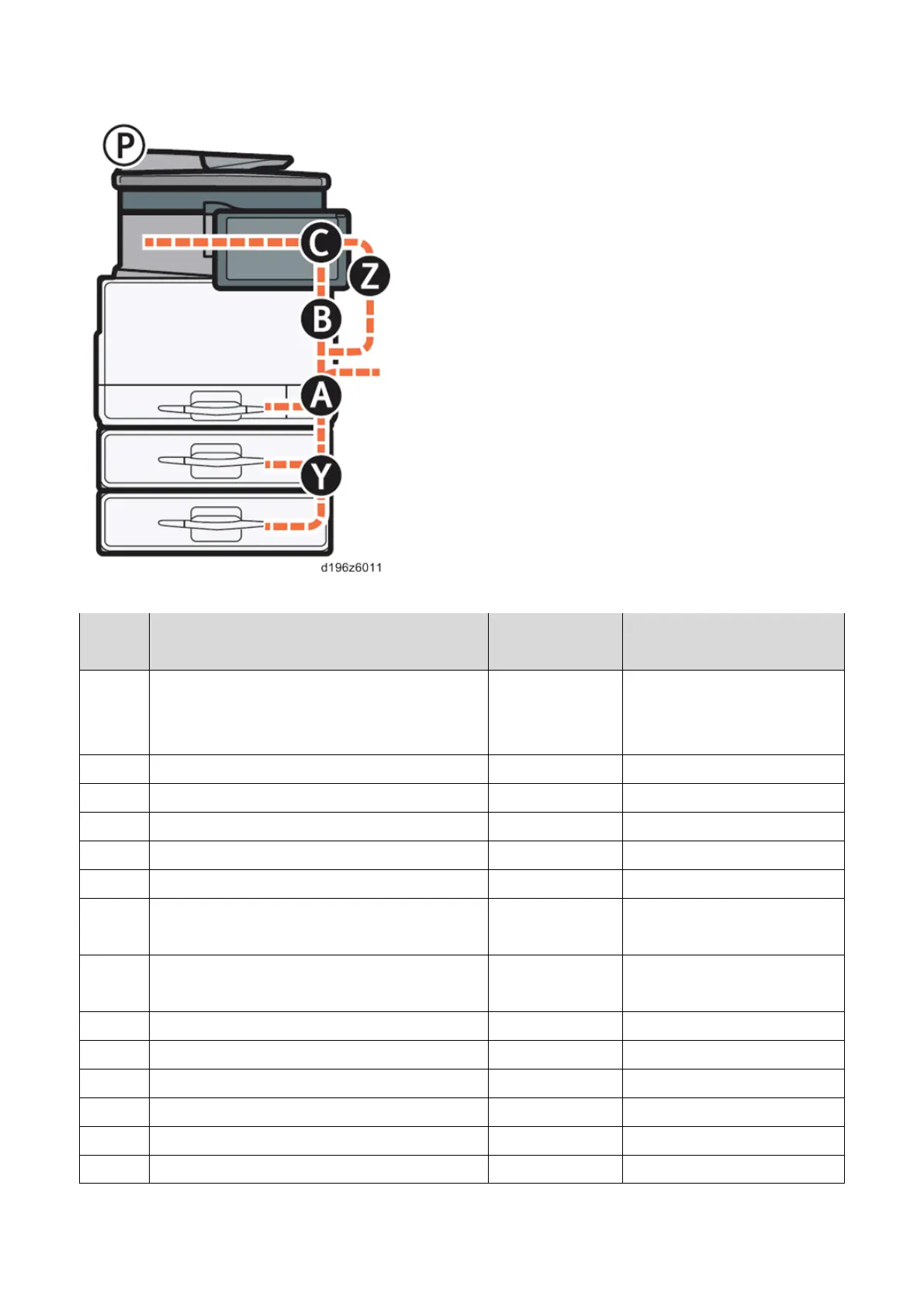

SP7-504 and SP7-505 (for ADF) show how many jams occurred at each location.
Jam
Code
Description SP No. Indication on the operation
panel
001 Initial jam at power on 7-504-001
7-505-001(for
ADF)
B, C, Z, Y1, Y2, P
003 Paper is not fed from 1st tray. 7-504-003 A
004 Paper is not fed from 2nd tray. 7-504-004 Y1
005 Paper is not fed from 3rd tray. 7-504-005 Y2
008 Paper is not fed from the bypass tray. 7-504-008 A
009 Paper is jammed at the duplex unit. 7-504-009 Z
012 Paper is not fed from the vertical transport sensor
1.
7-504-012 Y1
017 Registration sensor does not detect paper, and
paper exit sensor turns on.
7-504-017 A
018 Fusing entrance sensor does not detect paper. 7-504-018 B
019 Fusing exit sensor does not detect paper. 7-504-019 C
020 Paper exit sensor does not detect paper. 7-504-020 C
021 1-bin tray exit sensor does not detect paper. 7-504-021 C
025 Duplex exit sensor does not detect paper. 7-504-025 Z
026 Duplex entrance sensor does not detect paper. 7-504-026 Z
