Jam Detection
516
Jam
Code
Description SP No. Indication on the operation
panel
052 Vertical transport sensor 1 does not turn off. 7-504-052 Y1
053 Vertical transport sensor 2 does not turn off. 7-504-053 Y2
057 Registration sensor does not turn off. 7-504-057 B
060 Paper exit sensor does not turn off. 7-504-060 C
061 1-bin tray exit sensor does not turn off. 7-504-061 C
065 Duplex exit sensor does not turn off. 7-504-065 Z
066 Duplex entrance sensor does not turn off. 7-504-066 Z
004 ADF registration sensor does not turn off. 7-505-004 P
013 ADF feed sensor does not detect paper. 7-505-013 P
054 ADF registration sensor does not turn off. 7-505-054 P
063 ADF feed sensor does not turn off. 7-505-063 P
099 Double-feed detected. - Message is displayed on the
operation panel.
100 ADF drive motor is defective. 7-505-100 P

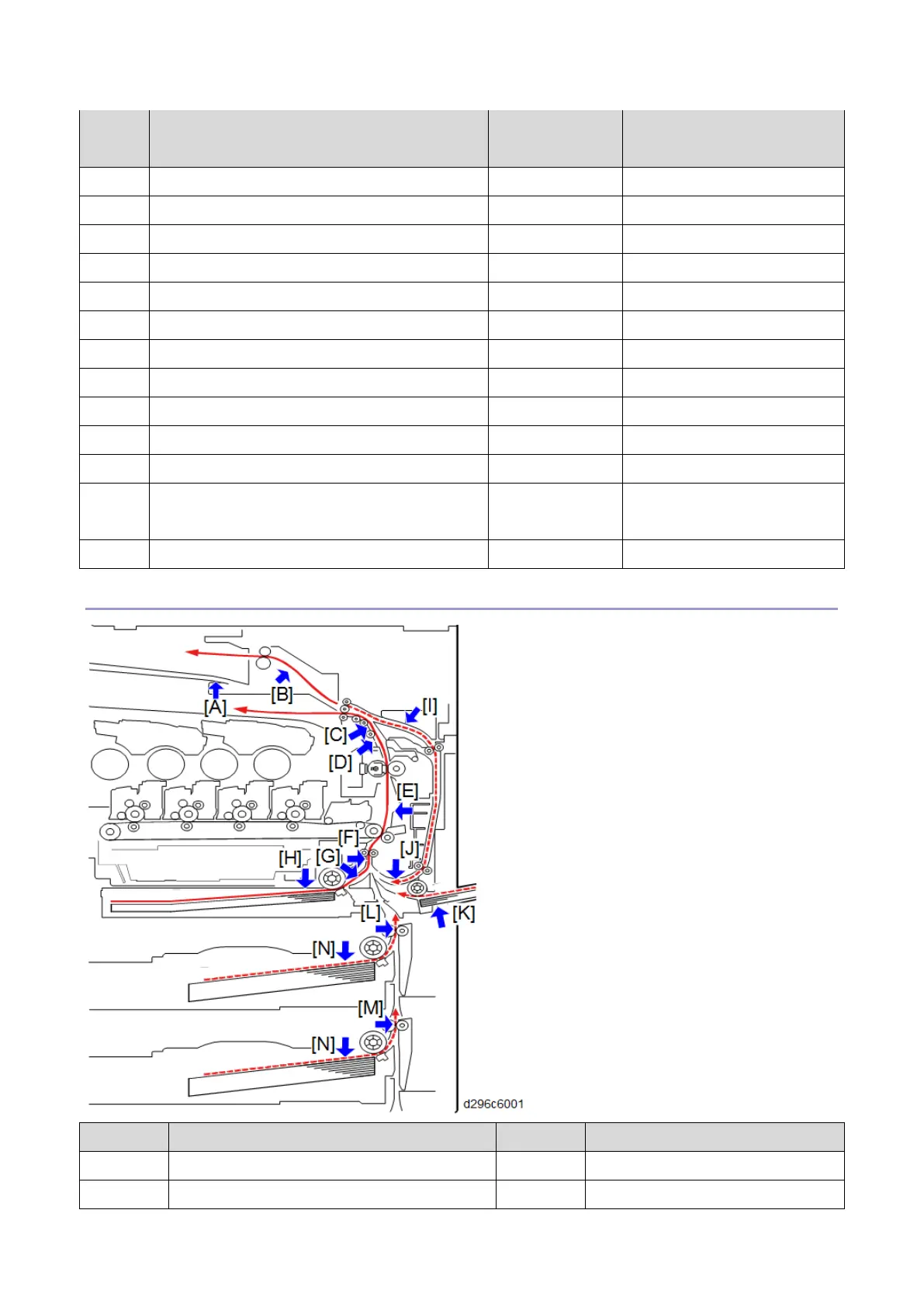

Sensor Layout
Callout Sensor Callout Sensor
[A] 1-bin tray paper remaining sensor [H] Tray paper end sensor
[B] 1-bin tray exit sensor [I] Duplex entrance sensor
