Scanner Unit
538
Callout Item Callout Item

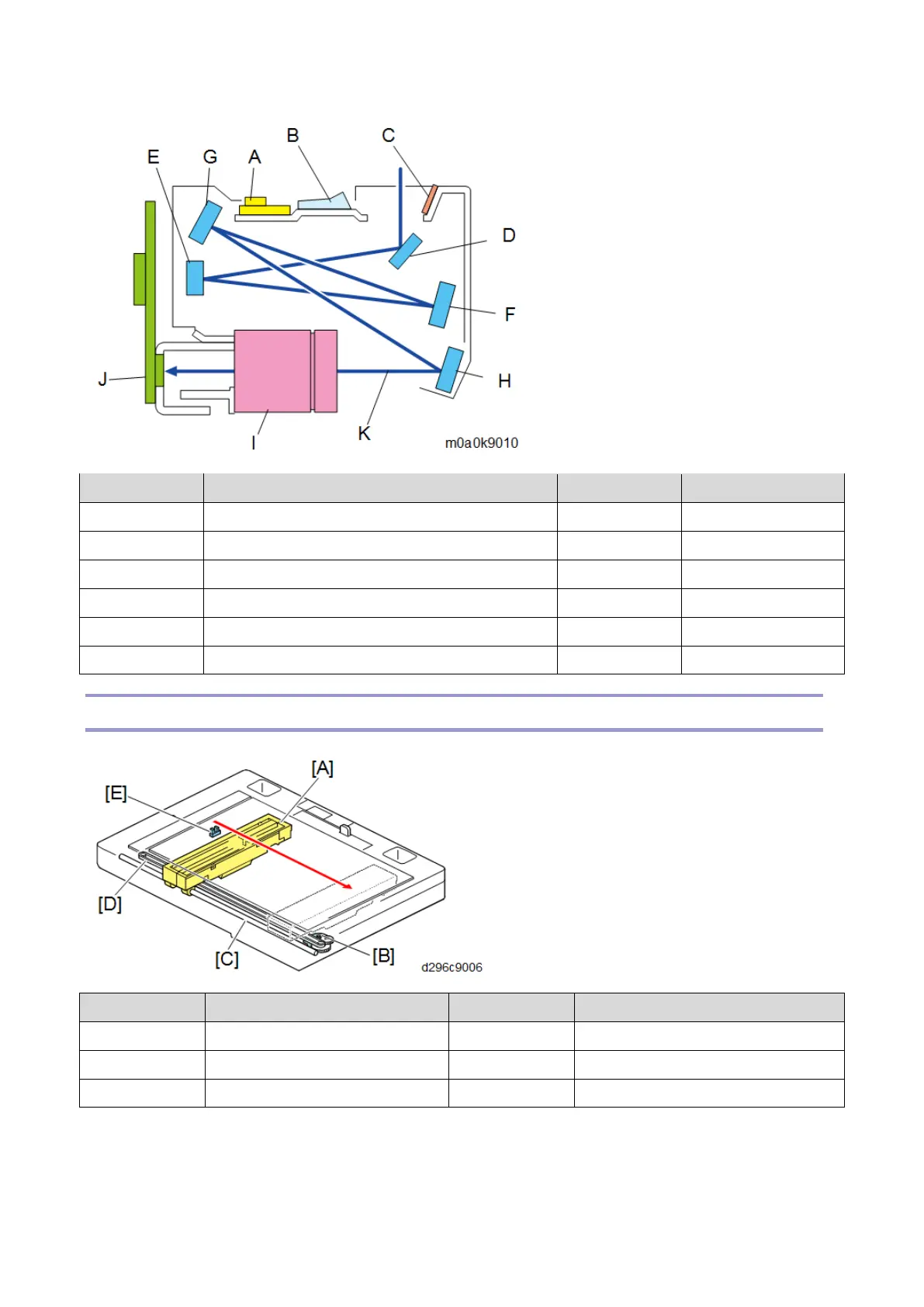

[A] LED array board (LEDB) [G] 4th mirror
[B] Light guiding panel [H] 5th mirror
[C] Reflectors [I] Lens
[D] 1st mirror [J] CCD
[E] 2nd mirror [K] Light Path
[F] 3rd mirror
Scanner Carriage Drive
Callout Callout Item
[A] Scanner carriage [D] Scanner drive belt
[B] Scanner motor [E] Scanner HP sensor
[C] Guide rod
The scanner motor [C] drives the drive belt [B] in order to move the scanner carriage [A] along the guide rod
[D].
Scanning starts with the scanner carriage [A] at the scanner HP sensor [E]. After scanning, the scanner carriage
