Laser Unit
541
Laser Unit
Overview

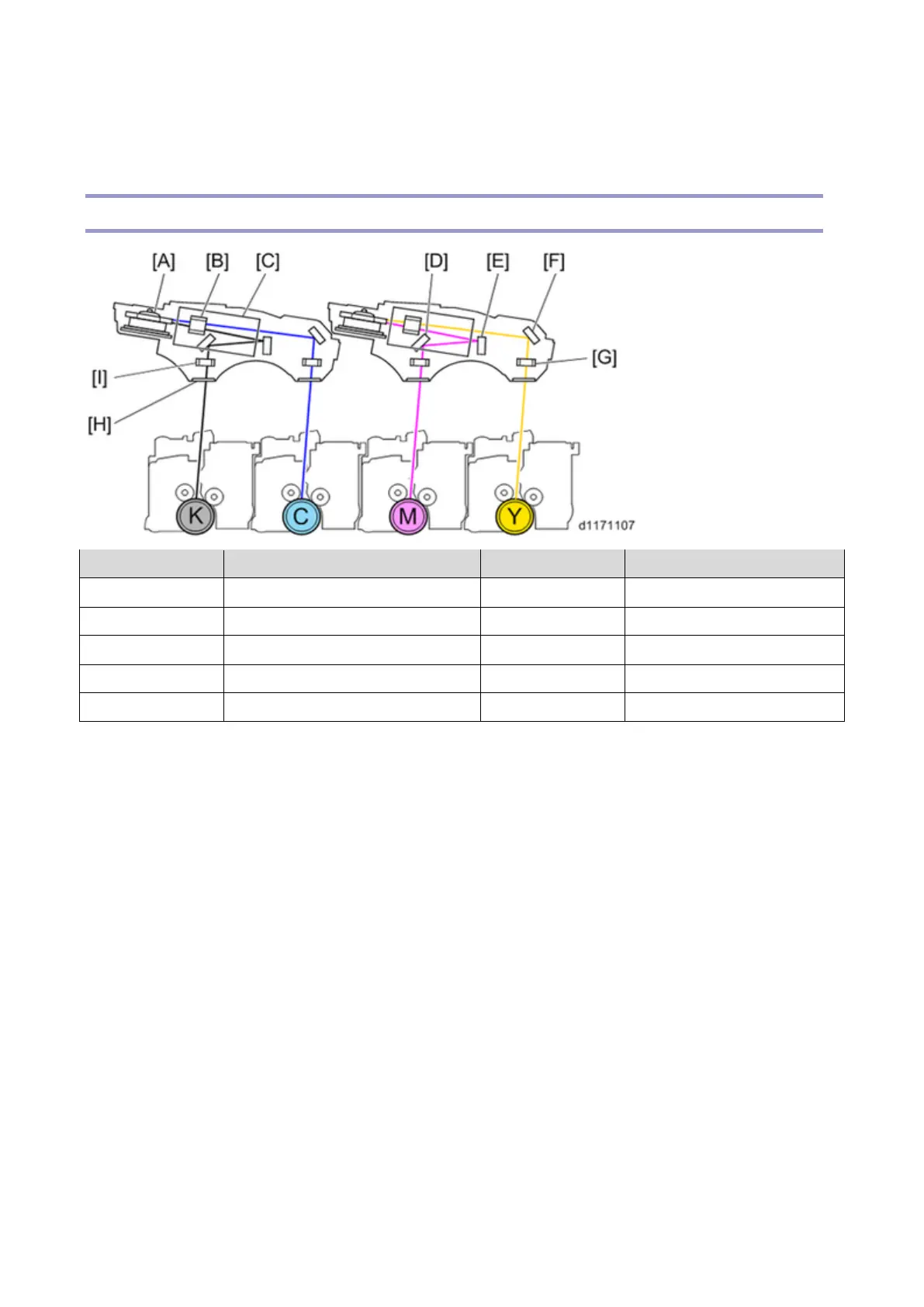

Callout Item Callout Item
[A] Polygon Motor [F] Mirror 3
[B] Lens (L1) [G] Lens (L2)
[C] LD Board [H] Shield Glass
[D] Mirror 2 [I] Lens (L2)
[E] Mirror 1
This machine has two LD units. One is for yellow and magenta. Another is for cyan and black. Each LD unit
produces laser beams for two colors.
Based on each model’s line speed, this product uses two different types of LD unit: MP C407 uses two beams
per color to achieve higher line speed, while MP C307 uses one beam per color, which is the same as the
previous model.
