Laser Unit
542

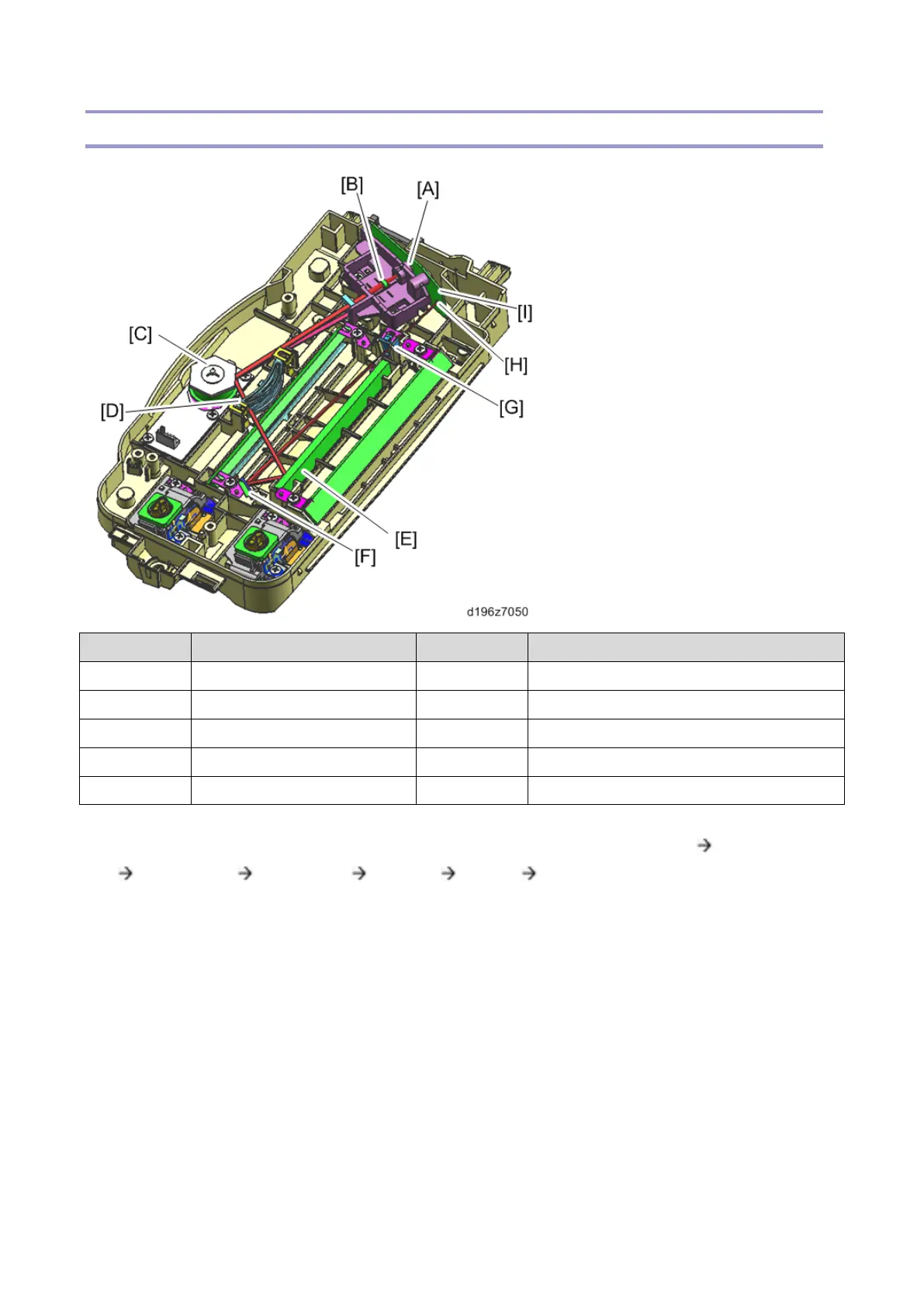

Laser Synchronizing System
Callout Item Callout Item
[A] LD Board [F] Synchronization Mirror
[B] Collimating Lens [G] Synchronization Lens
[C] Polygon Motor [H] Synchronization Detector
[D] Lens (L1) [I] LD Unit
[E] Mirror 1
The LD unit has a synchronization detector at the left side of each unit (for the optical paths for the K and M
drums only). A laser beam coming from the LD board [A] travels to the collimating lens [B] polygon motor
[C] lens (L1) [D] Mirror 1 [E] Mirror 2 Mirror 3 Drum.
When the beam is at the beginning of the line, the synchronization mirror [F] reflects it to the synchronization
lens. The synchronization detector [H] detects the beam reflected.

Ricoh MP C307 Specifications

General

Type	Multifunction Printer
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Maximum Paper Size	A4
Duplex Printing	Yes
Scan Resolution	600 x 600 dpi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating Systems Supported	Windows, Mac OS, Linux
Print Speed (Black)	30 ppm
Print Speed (Color)	30 ppm
Standard Paper Capacity	350 sheets
Supported Paper Sizes	A4, A5, A6, B5, B6, Letter, Legal
Scanner Type	Flatbed with ADF (Automatic Document Feeder)
Copier Speed (Black)	30 cpm
Copier Speed (Color)	30 cpm
Copy Resolution	Up to 600 dpi
Zoom Range	25% to 400%
Connectivity	Ethernet, USB
Max. Paper Capacity	1, 350 sheets
Display	10.1-inch color touchscreen
