Fusing
573
Fusing
Overview

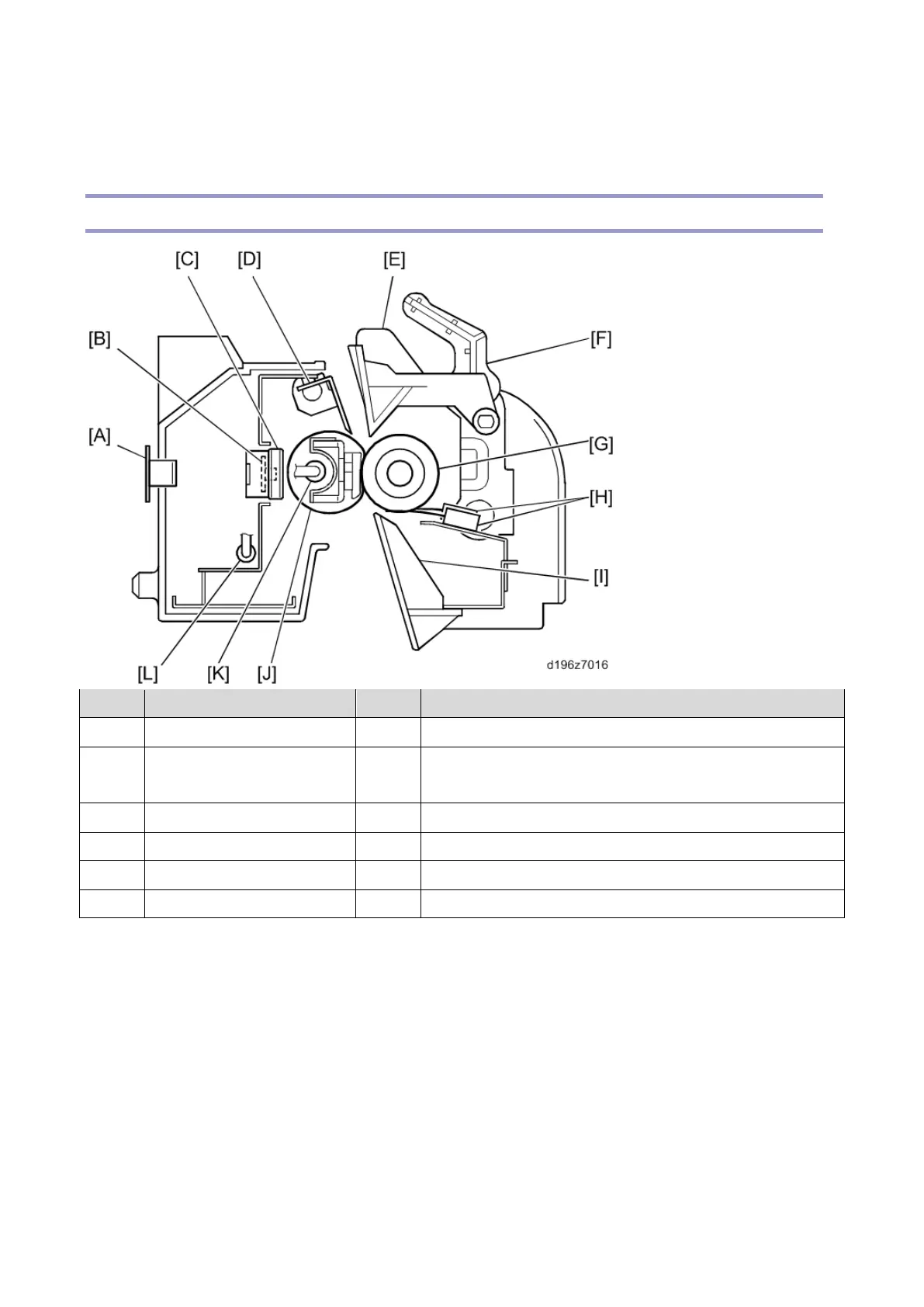

Callout Item Callout Item
[A] Fusing Thermopile [G] Pressure Roller
[B] Fusing Thermistor (NC
Sensor)
[H] Pressure Roller Thermistors (Edge: Front, Center, and, Edge:
Rear)
[C] Fusing Thermostat [I] Entrance Guide Plate
[D] Separation Plate [J] Fusing Sleeve Belt (QSU Method)
[E] Exit Guide Plate [K] Fusing Lamp
[F] Pressure Arm [L] Fuse for New Unit Detection
