Fusing
574

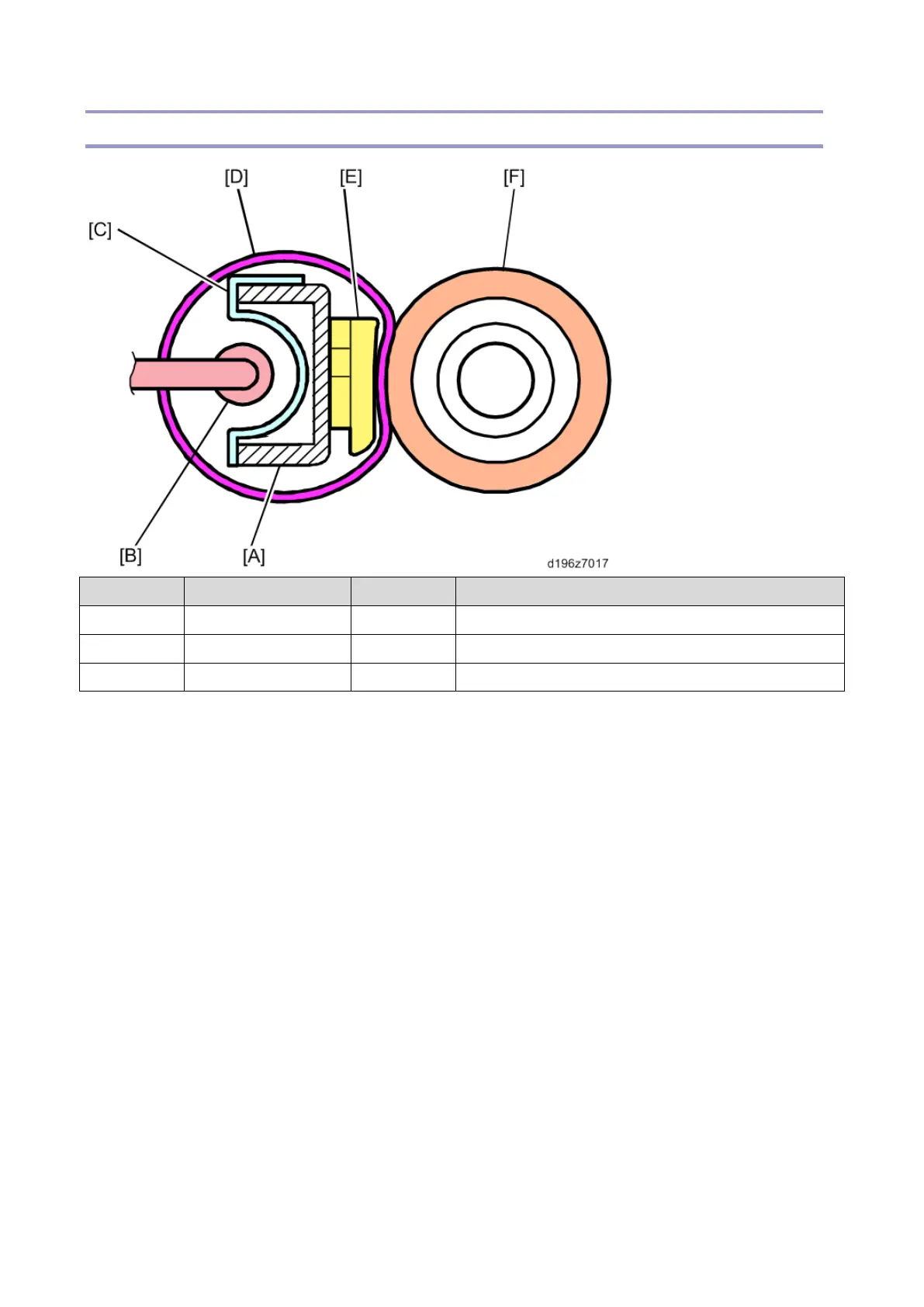

Fusing Mechanism
Callout Item Callout Item
[A] Stay [D] Fusing Sleeve Belt (Diameter: 25)
[B] Fusing Lamp [E] Nip Pad
[C] Reflector [F] Pressure Roller (Diameter: 25
The fusing unit uses the QSU system. (QSU: Quick Start Up).
The heat from the fusing lamp [B] is reflected by the reflector [C] and heats the fusing sleeve belt [D].
The temperature at both ends of the fusing lamp is lower than the middle.
The fusing sleeve belt itself has no drive mechanism; the pressure roller drives it. The nip pad [E] at the sleeve
belt side is pushed against the pressure roller and keeps the nip width on the sleeve belt.
