Paper Feed and Registration
578
Paper Feed and Registration

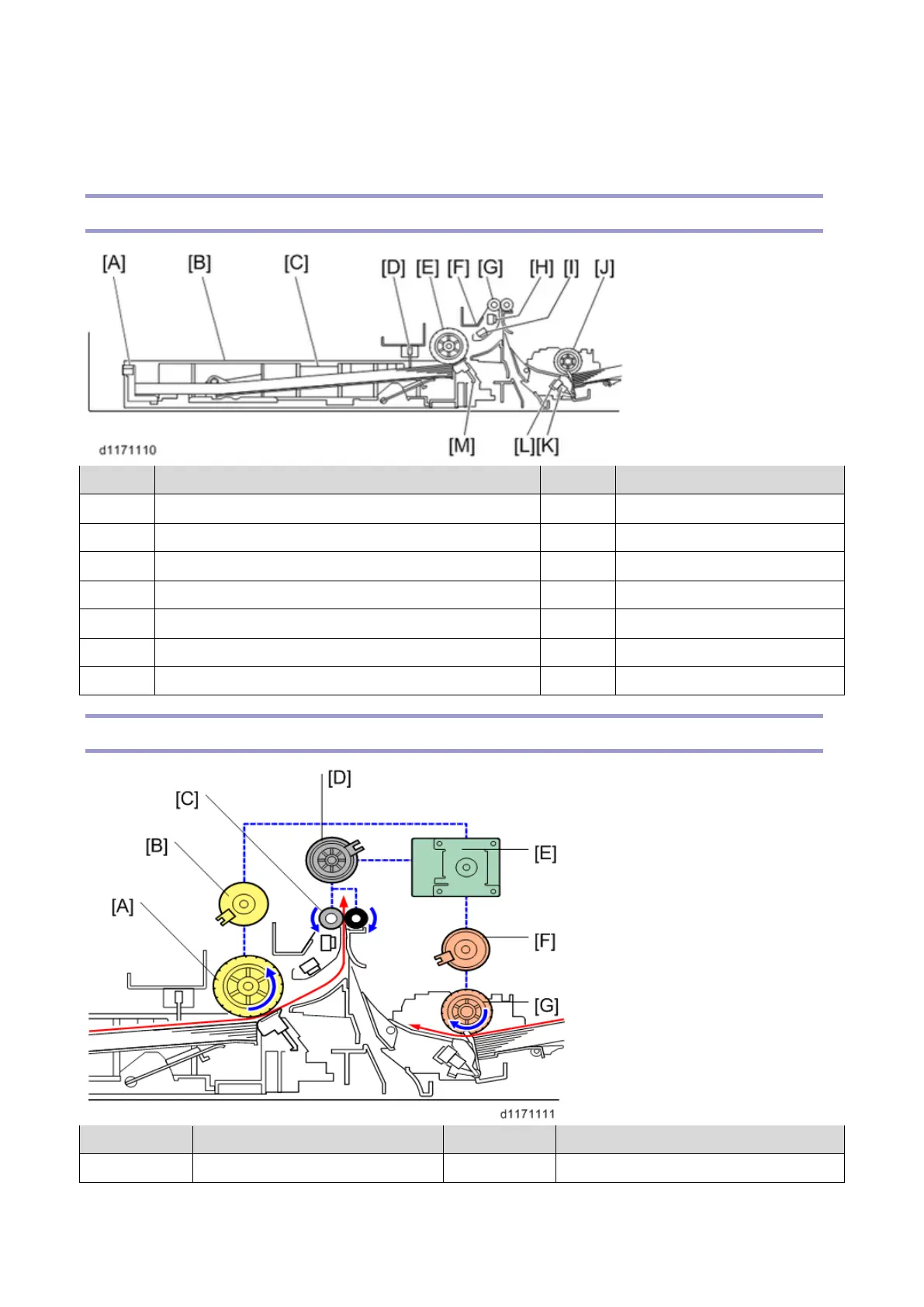

Overview
Callout Item Callout Item
[A] End Fence [H] Registration Sensor
[B] Paper Feed Tray [I] Paper Feed Sensor
[C] Side Fence [J] Bypass Feed Roller
[D] Paper End Sensor [K] Bypass Paper Width Sensor
[E] Paper Feed Roller [L] Bypass Paper End Sensor
[F] Dust Collection Tray [M] Friction Pad
[G] Registration Rollers (Right: Driven, Left: Drive)
Paper Feed, Registration, and Bypass Feed Drive
Callout Item Callout Item
[A] Paper Feed Roller [E] Paper Transport Motor
