Paper Feed and Registration
579
Callout Item Callout Item
[B] Paper Feed Clutch [F] Bypass Feed Clutch
[C] Registration Roller [G] Bypass Feed Roller
[D] Registration Clutch
The drive from the paper transport motor is transmitted to each clutch through gears. The paper transport motor
controls paper feed/exit, duplex, registration, waste toner transport coil and bypass tray lift.

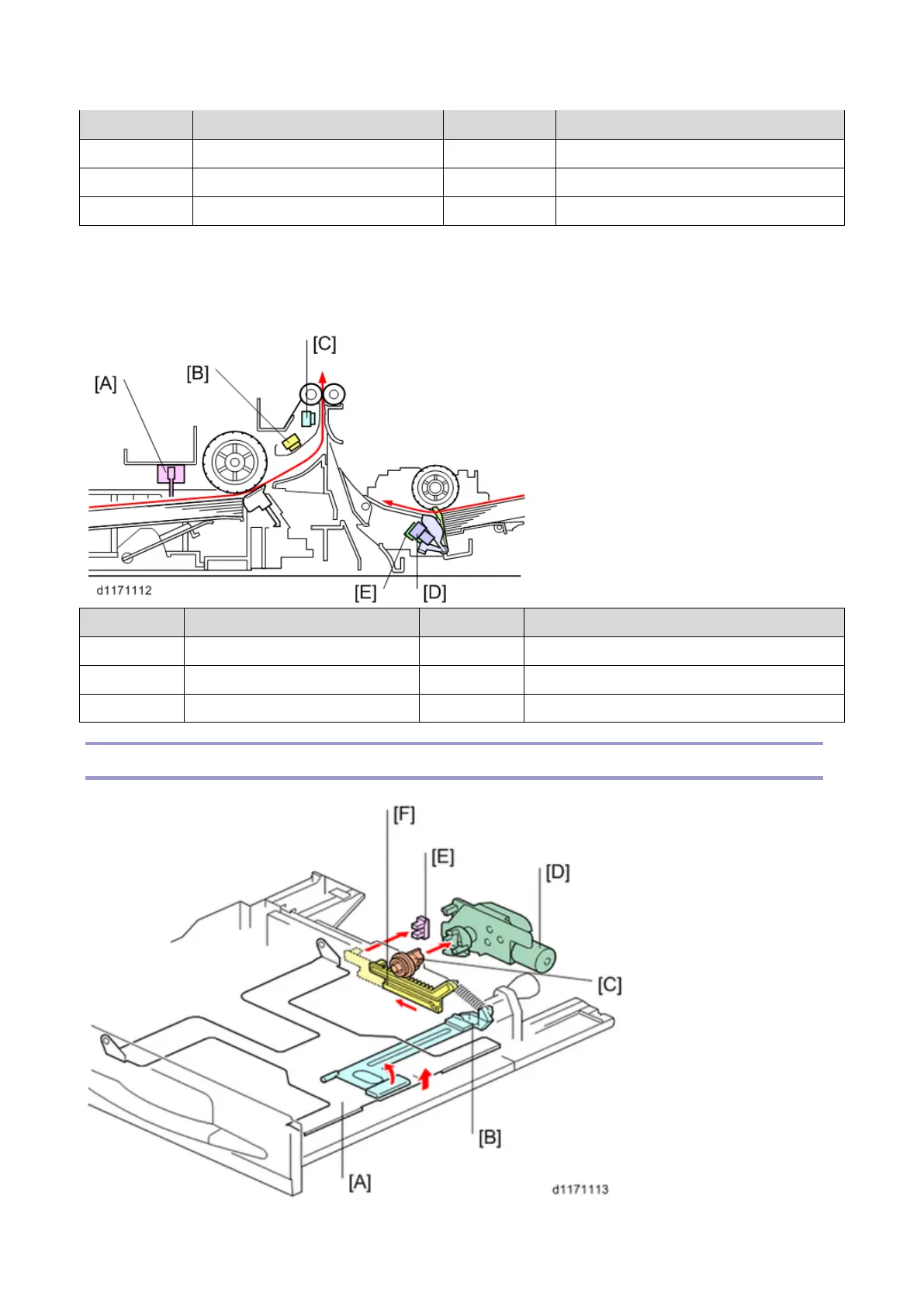

Sensor Locations in the Paper Feed Path
Callout Item Callout Item
[A] Paper End Sensor [D] Bypass Paper Width Sensor
[B] Paper Feed Sensor [E] Bypass Paper End Sensor
[C] Registration Sensor
Tray Lift Mechanism
