1-Bin Tray BN1030 (D574-58)
72

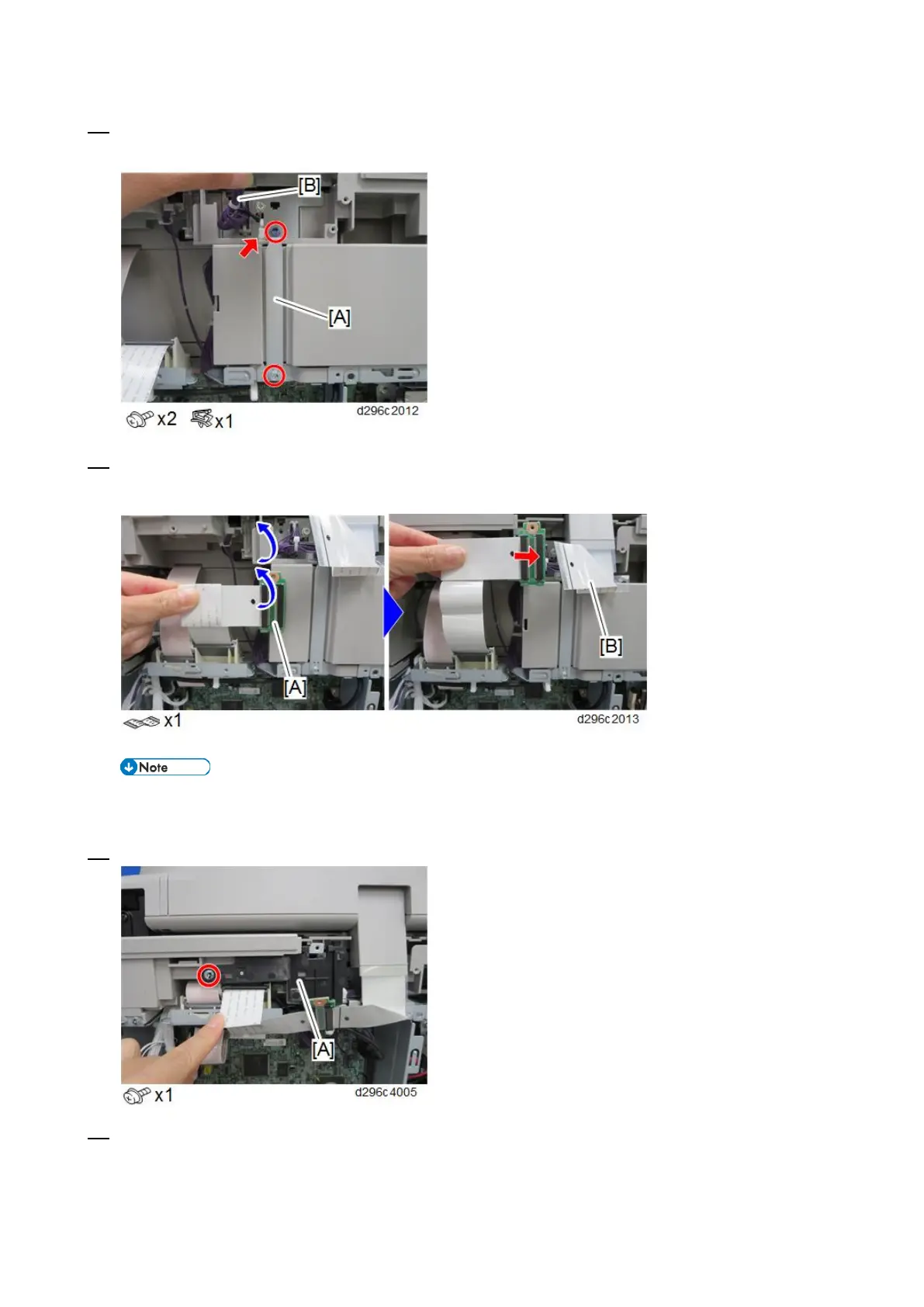

10. Attach the grounding plate [A] and clamp the harness [B] to the ADF. (Upper: blue screw ×1, Lower:
M3x10 (existing))
11. Connect the relay board [A] and FFC [B].
Turn over twice to spread the FFC that was folded, and connect it.
Connect the FFC by pushing it straight, because it does not have a lock mechanism.
When reassembling, the FFC must be connected straight.
12. Attach the FFC fixing bracket [A].
13. Attach the relay board [B] with the three hooks [A] on the FFC fixing bracket.
