1-Bin Tray BN1030 (D574-58)
73

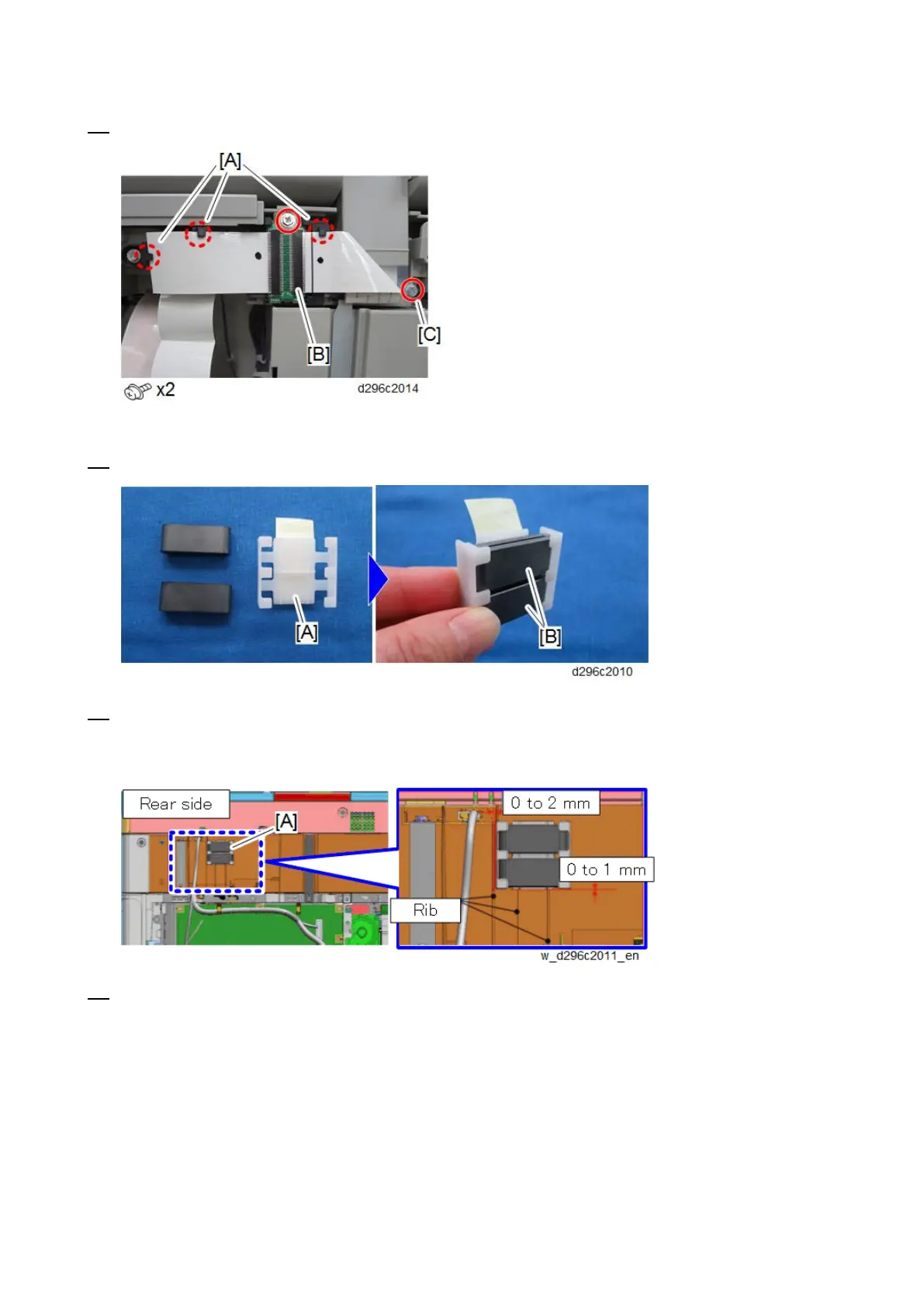

14. Attach the FFC with the screw [C].
15. Set two ferrite cores [B] in the ferrite core holder [A] included in this kit.
16. Route the FFC of the scanner unit through the two ferrite cores in step 15.
Align the ferrite core holder [A] with the reference ribs on the back of the unit, and attach it with
double-sided tape.
17. Route the FFC [A] in step 16 through one ferrite core [B] attached to the control box, and connect it to the
BiCU.
To Next Page
