1-Bin Tray BN1030 (D574-58)
74
18.

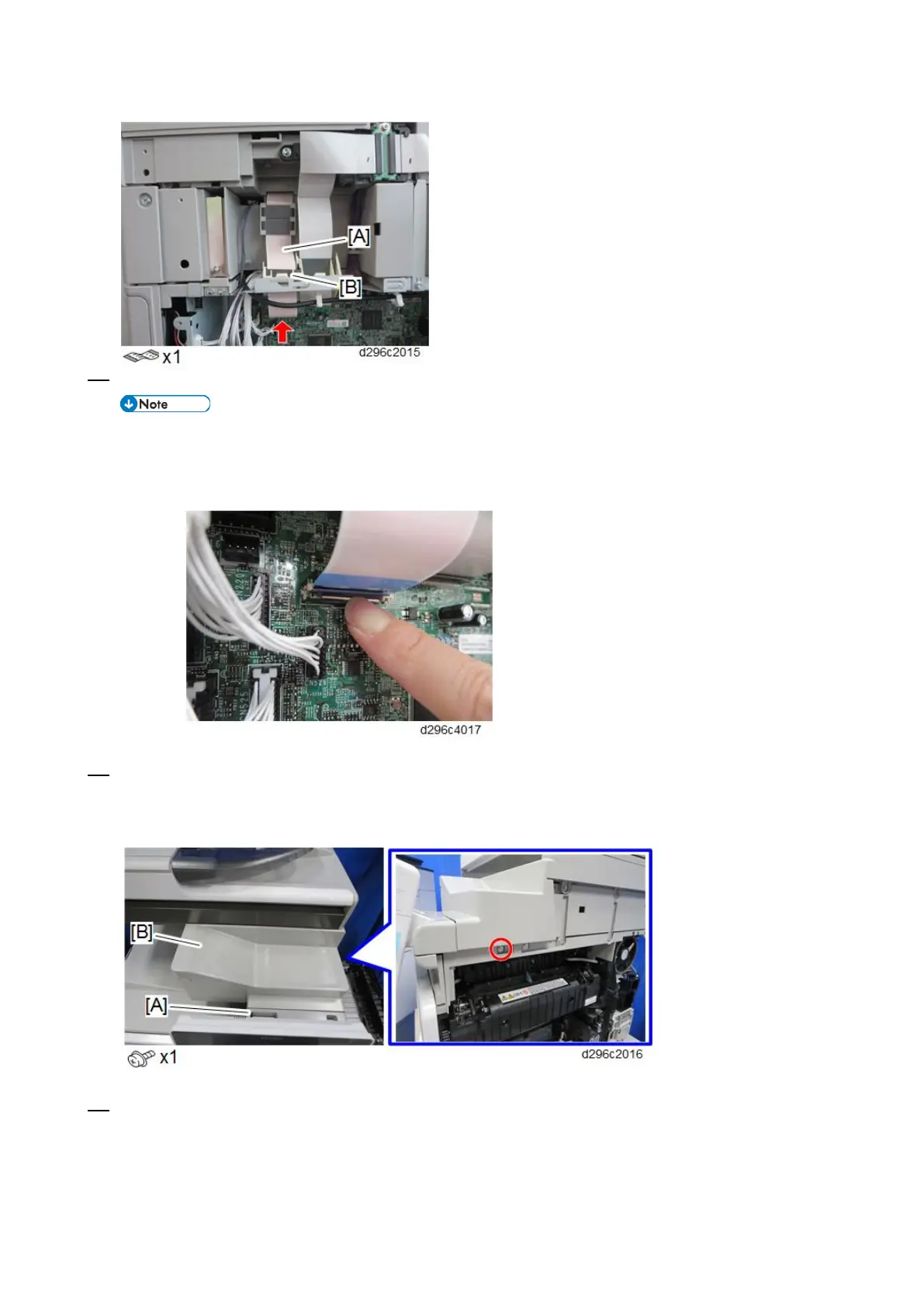

• The FFC should be routed under the USB cable.
• Do not connect the FFC at an angle. Otherwise, the scanner unit may be damaged.
• Connect the scanner FFC for the BiCU while pressing the lock release button.
19. Attach the following items:
• Hinge cover [A]
• Front right cover [B] (from the accessories, not the original cover)
20. Attach the following items:
• Right rear cover [A] (from the accessories)
• Rear upper cover [B] (from the accessories)
• Left upper cover [C] (from the accessories, not the original cover)
To Next Page
