Rigol DS2000E Series Programming Guide

RIGOL 3 Programming Demos
3-6 DS2000E Programming Guide
viErr = visa.viWrite(viDevice, cmdStr, Len(cmdStr), ret)
viErr = visa.viRead(viDevice, idnStr, 128, ret)
Sheet1.Cells(2, 2) = idnStr
‘Turn off the device’
visa.viClose (viDevice)
visa.viClose (viDefRm)
End Sub

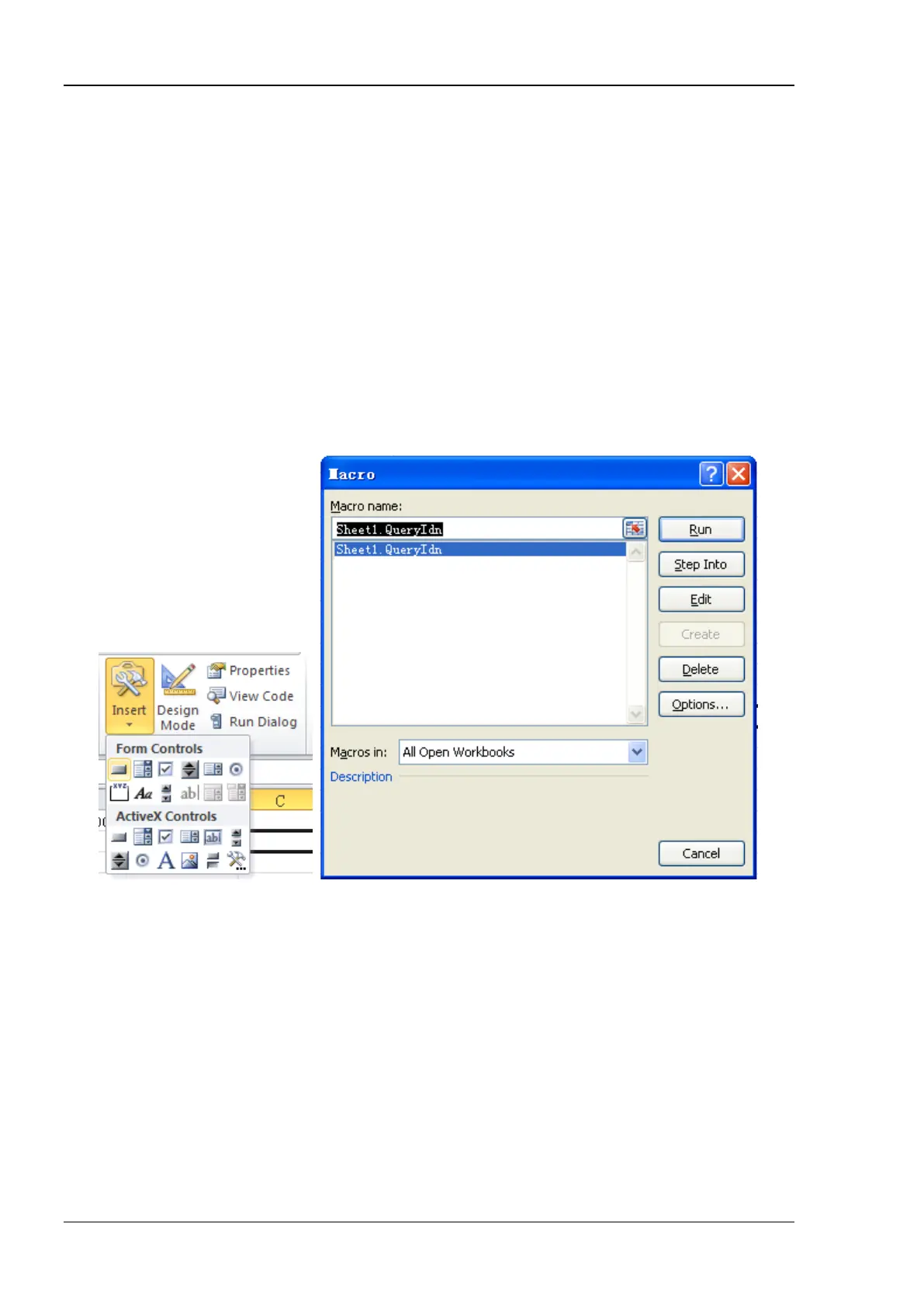

6. Add button control: click Insert in the Developer menu, select the desired button in Form
Controls and put it into the cell of the Excel. At this point, the Assign Macro interface is displayed,
select "Sheet1.QueryIdn" and click "OK".
7. By default, the button mane is "Button 1". Right-click the button and select Edit Text in the pop-up
menu to change the button name to "*IDN?". Click the "*IDN?" button to run the program, the
return result is displayed in Sheet1.Cells(2, 2) (Cell B2 in Sheet1).

Rigol DS2000E Series Specifications

General

Bandwidth	70 MHz to 200 MHz
Channels	2 or 4
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	8-bit
Timebase Range	2 ns/div to 50 s/div
Memory Depth	14 Mpts
Input Impedance	1 MΩ ± 1%
Trigger Modes	Edge, Pulse, Video
Waveform Capture Rate	50, 000 wfm/s
Interfaces	USB, LAN
Power Supply	100-240 VAC
Display	8-inch WVGA (800x480) LCD
