Continued from the previous page.
* If any of the following Event functions are selected, this parameter will be Event  set value (EV) [high].
(Event number at parameter setting shows up in .)
・Band (High/Low individual setting) [Event type code: U]
・Deviation high/low (High/Low individual setting) [Event type code: X]
・Deviation high/low with hold action (High/Low individual setting) [Event type code: Y]
・Deviation high/low with re-hold action (High/Low individual setting) [Event type code: Z]
Continued on the next page.

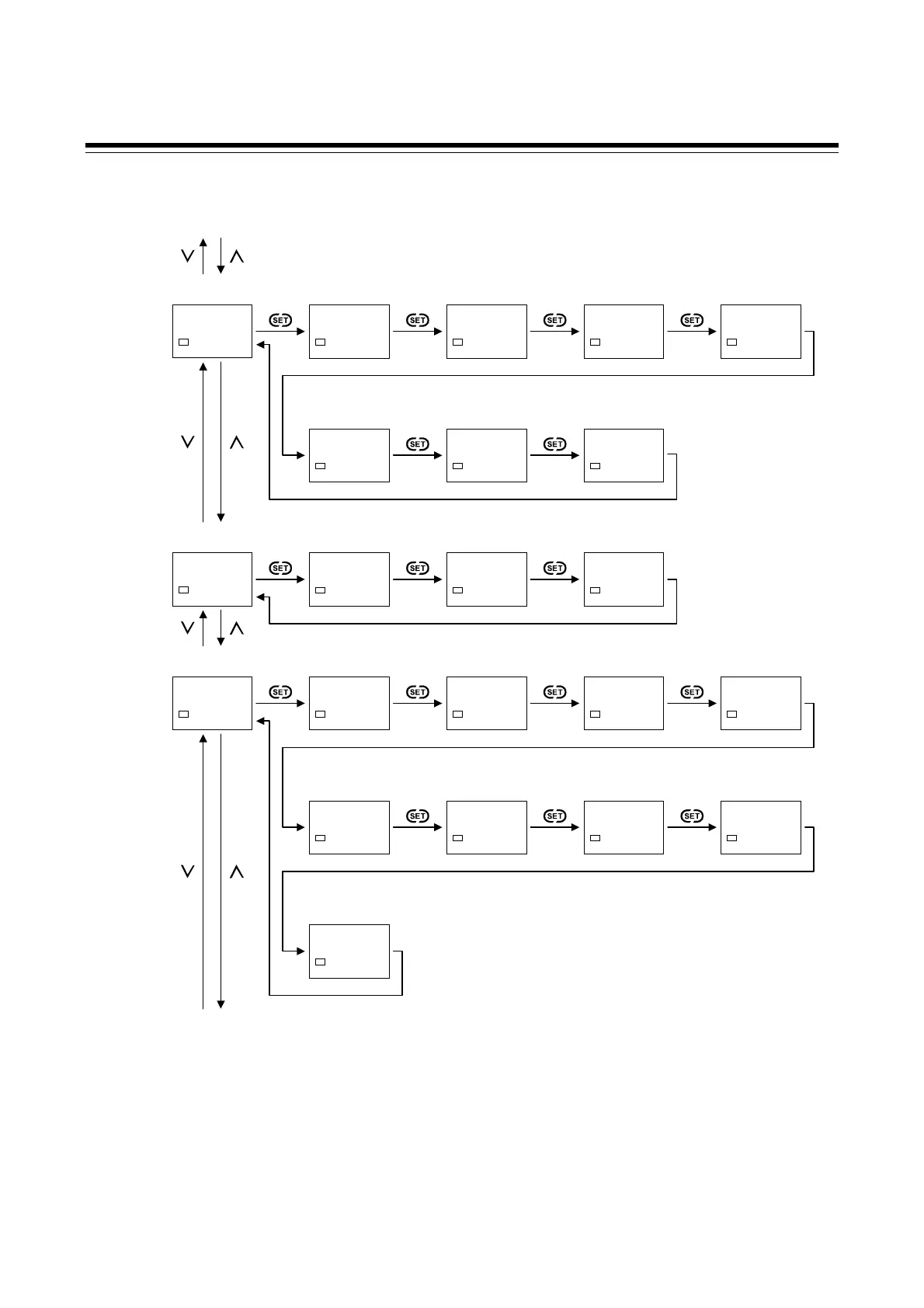

Function block 01 (F01)
Function block 02
(F02)
F02.
SV1
(P. 8-63)
SVT1
00:01
SV1
Timer 1
SVT2
00:01
SV1
Timer 2
SVT3
00:01
SV1
Timer 3
SVT4
00:01
SV1
Timer 4
(P. 8-63) (P. 8-63) (P. 8-63) (P. 8-63)
Function block 03
(F03)
F03.
SV1
(P. 8-66)
SVRU$
0000
SV1
Setting change rate
limiter (up)
SVRD$
0000
SV1
Setting change rate
limiter (down)
S.F03
0001
SV1
F03 block selection
(no display)
(P. 8-66) (P. 8-66) (P. 8-67)
TMF5
0000
SV1
Timer function
(P. 8-64)
RPT5
0000
SV1
Repeat execution
times
(P. 8-64)
S.F02
0001
SV1
F02 block selection
(no display)
(P. 8-65)
Function block 04
(F04)
F04.
SV1
(P. 8-68)
EV1$
0050
SV1
Event 1 set value
(EV1) *
EV1`$
-050
SV1
Event 1 set value
(EV1’) [low]
EV2$
0050
SV1
Event 2 set value
(EV2) *
EV2`$
-050
SV1
Event 2 set value
(EV2’) [low]
(P. 8-68) (P. 8-69) (P. 8-68) (P. 8-69)
EV3$
0050
SV1
Event 3 set value
(EV3) *
(P. 8-68)
EV3`$
-050
SV1
Event 3 set value
(EV3’) [low]
(P. 8-69)
EV4$
0050
SV1
Event 4 set value
(EV4) *
(P. 8-68)
EV4`$
-050
SV1
Event 4 set value
(EV4’) [low]
(P. 8-69)
S.F04
0000
SV1
F04 block selection
(no display)
(P. 8-70)
Function block 05 (F05)
